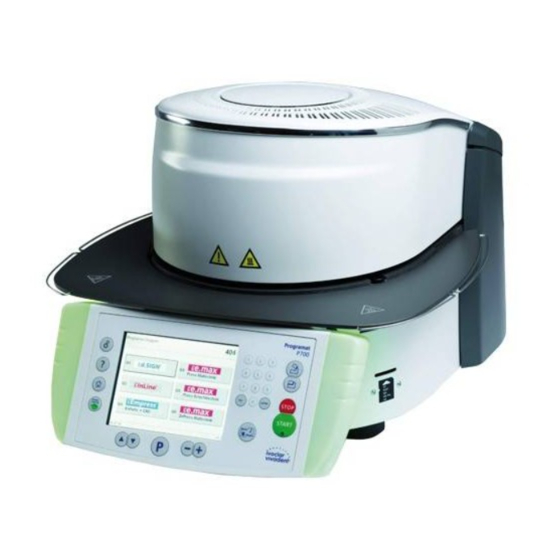

Programat
P700/G2
®
Operating Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Programat P700/G2 and is the answer not in the manual?

Questions and answers

Related Manuals for Ivoclar Vivadent Programat P700/G2

Summary of Contents for Ivoclar Vivadent Programat P700/G2

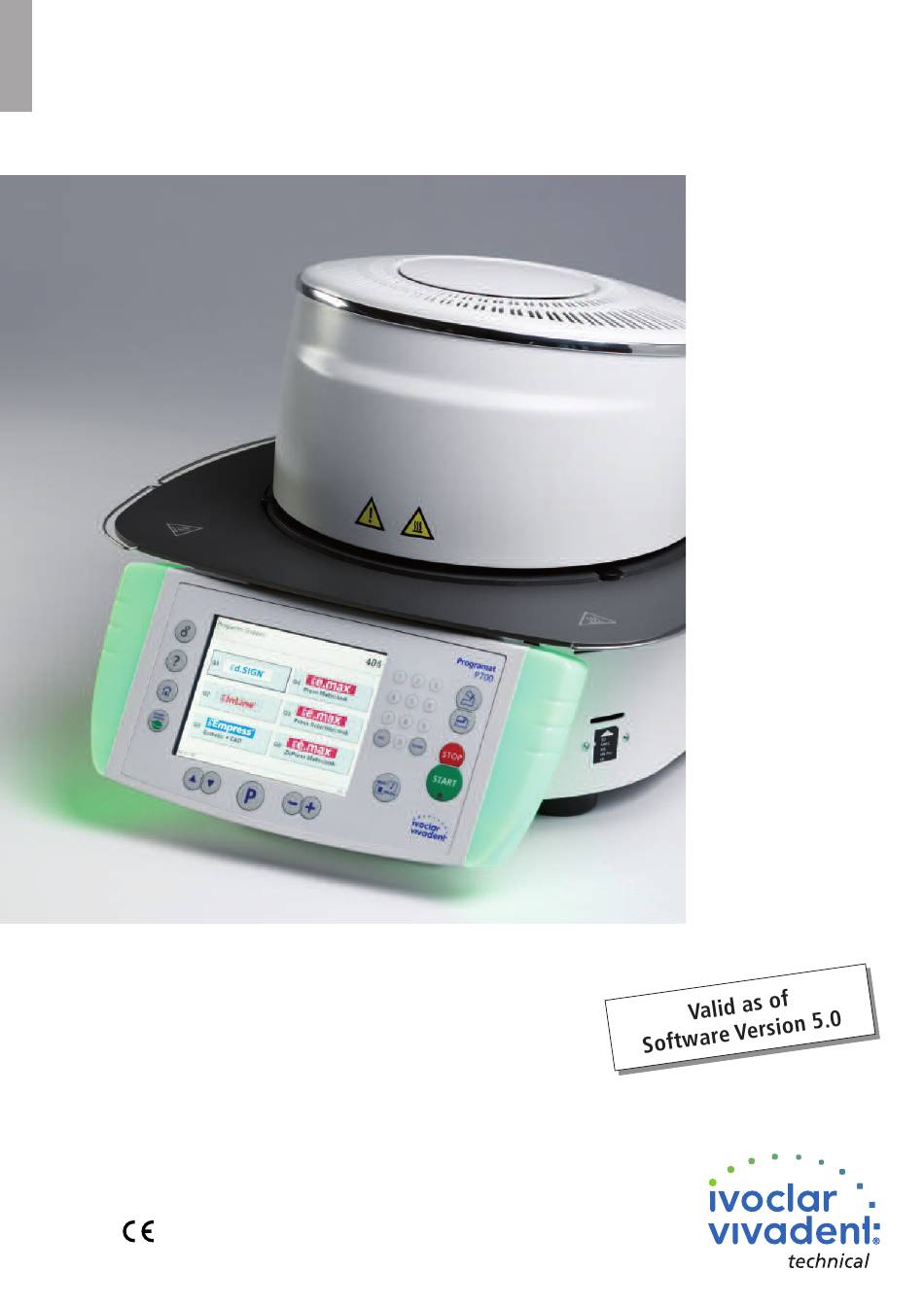

  • Page 1 Programat P700/G2 ® Operating Instructions...

  • Page 3: Table Of Contents

    Explanation of the speaker signals OSD (Optical Status Display) Multimedia Practical Use Switching on/off Firing using a Ivoclar Vivadent program Firing using an individual program Further possibilities and special features of the furnace Maintenance, Cleaning and Diagnosis Monitoring and maintenance...

  • Page 4: Views Of The Furnace, List Of Parts

    List of Parts Sealing surface Furnace head sealing ring Insulation Thermocouple Firing plate Touch screen Frame plate QTK heating muffle Housing base 10 Keypad 11 On/Off switch 12 Heating element fuse 13 Vacuum pump fuse 15 Fuse holder 16 Power cord 17 Power socket 18 Vacuum pump socket 19 Rating plate...
  • Page 5 55 23...
  • Page 6 12 13 58 26 30...
  • Page 7 Control unit: 70 Program key 71 ESC key 72 ENTER key 73 START key 74 Start LED 75 STOP key 76 + key 77 - key 78 Settings / information 79 Cursor key up 80 Cursor key down 90 Open furnace head 91 Close furnace head 92 Numeric keys 93 Multimedia key...

  • Page 8: Introduction / Signs And Symbols

    Operating Instructions Dear Customer The signs and symbols in these Operating Instructions facilitate Thank you for having purchased the finding of important points the Programat P700/G2. It is a and have the following Furnace concerned: state-of-the-art furnace for meanings: Programat P700/G2 dental applications.

  • Page 9: Safety First

    2. Safety first This chapter is especially important for personnel who work with the 2.1.1 Programat P700/G2 or who have to carry out maintenance or repair work. This chapter must be read and the corresponding instructions followed. Risks and dangers The furnace head should not be 2.1 Indications...
  • Page 10 2.1.6 2.1.11 Risks and dangers Risk of crushing and burn hazard Do not carry the furnace by the Never reach under the furnace cooling tray. head with the hand or other parts of the body during operation, since there is a risk of crushing and a burn hazard.

  • Page 11: Health And Safety Instructions

    – Do not touch any parts that become hot during the operation of The heat insulation of the firing chamber in the Programat P700/G2 the furnace. There is a burn hazard! consists of ceramic fibres. After prolonged use of ceramic fibres at temperatures of over 900 °C (1652 °F), silicogenic substances...

  • Page 12: Product Description

    The firing process is controlled with the corresponding electronic controls and software. Moreover, the set and actual temperatures are continuously compared. The Programat P700/G2 has Ivoclar Vivadent pro- grams and 700 individual programs. 3.4 Accessories (not part of the delivery form) –...

  • Page 13: Installation And Initial Start-Up

    If parts are damaged or missing, contact The furnace should neither be placed nor operated in areas your local Ivoclar Vivadent Service Center. where there is an explosion hazard. Remove the furnace components from their packaging and place them on a suitable table.
  • Page 14 Place the cooling tray (34) on the frame plate (7). Make sure that the cooling tray (34) is correctly positioned on the frame plate (7). Secure the cooling tray (34) with the two screws (35) including the silicone washer (47). Step 2: Mounting the furnace head The complete furnace head is best mounted with...
  • Page 15 Ensure that the furnace head mounting mark (41) is aligned with the furnace base mounting mark (42). Make sure that the firing plate holder (48) is not damaged by mounting the furnace head. Step 3: Placing the firing plate (5) Place the firing plate (5) on the firing plate holder (48).
  • Page 16 Connect the vacuum pump plug with the vacuum pump socket (18). We recommend using only the VP4 vacuum pump from Ivoclar Vivadent, since this pump is especially coordinated with the furnace. If other pumps are used, please observe and do not exceed...

  • Page 17: Removing The Furnace Head

    Step 7: Mount tong holder The tong holder (59) can be secured in the corre- sponding holes on the side of the furnace with the enclosed attachment screws. 4.4 Removing the furnace head Before the hood (36) is removed, the furnace has to be switched off and the power cord (16) disconnected from the power socket (17).

  • Page 18: Initial Start-Up

    4.5 Initial start-up 4.5.4 Setting the date Enter the date (day/month/year). 1. Connect the power cord (16) with the wall socket. 2. Put the On/Off switch (11) at the rear of the furnace on position “I” and connect the vacuum pump. 4.5.1 Start screen Immediately after switching on, the display briefly shows the start screen.

  • Page 19: Operation And Configuration

    5. Operation and Configuration 5.1 Introduction to the operation START (Start LED) The Programat P700/G2 is equipped with a graphical display with Starts the selected program. The fact that a backlighting. The furnace can be operated by means of the keypad program is running is indicated by the green LED.

  • Page 20: Adjustable Parameters And Possible Value Ranges

    Ivoclar Vivadent programs for Ivoclar 5.4 Adjustable parameters and possible value ranges Vivadent materials Refer to enclosed Program table Symbol Parameter Value range Value range When the furnace is delivered ex Program number P 001–700 works, the Ivoclar Vivadent programs Stand-by temperature 100–700 °C...

  • Page 21: Settings And Information

    firing chamber is too high when the program is started. In addition, TSP works only if the stand-by temperature of B = 403 °C required for Ivoclar Vivadent materials is used. The active TSP func- tion is shown on the display by means of the symbol "TSP". If pro- grams are started with a temperature of more than 680 °C / 1256 °F,...
  • Page 22 The power-saving icon is shown in the display. Pressing any key will end the automatically activated power-saving function. Ivoclar Vivadent Only used by the Service Center. 5.5.2 Program Manager This screen is displayed by pressing the "Program Manager"...
  • Page 23 "Special programs". All the existing firing programs (Ivoclar Vivadent programs or individual programs) of the furnace can be saved on a prepared memory stick. Select Selection – Program manager –...
  • Page 24 5.5.5.2 Heater test 5.6 Description of the symbols in the display The quality of the heating muffle may be automatically checked by Symbol Name Meaning Symbol means of the heater test (dura- tion: approximately 7 minutes). Pre-vacuum Vacuum generation The heater test should only be starts before the heating begins.

  • Page 25: Explanation Of The Speaker Signals

    5.7 Explanation of the speaker signals 5.8.1 The start procedure The handles blink white when the furnace is started. Once the Basically, all the acoustic signals are played in the melody and at the starting process is completed, the OSD lights up in white or green. volume selected by the user.
  • Page 26 5.9.2 Mp3 Player 5.9.4 Individual melody The mp3 Player button enables The melody selected for acoustic signals can be replaced by any mp3 opening of the desired hard disk. tune. The Programat enables to load mp3 files as an individual The desired hard disk can be melody.

  • Page 27: Practical Use

    The operating procedure for the Programat P700/G2 will be If the program is started with the START key, the firing curve display explained with the help of two examples: one Ivoclar Vivadent pro- with the vacuum status is shown. gram and one individual program.

  • Page 28: Firing Using An Individual Program

    Step 2: 6.4 Further possibilities and special features of the Now, open the furnace head by pressing the "Open furnace head" furnace key (90) and place the firing tray with the object to be fired in the 6.4.1 Quick program selection furnace.
  • Page 29 6.4.7 Help 6.4.12 Pre-vacuum Help text for the current screen. If a firing program with pre- vacuum is conducted, the vacuum pump is switched on at the end of the closing time (as soon as the furnace head is closed). Once the pre-vacuum time has elapsed, the heating phase begins.
  • Page 30 6.4.16 USB printer Each USB-PCL printer can be used to printout the protocol. If a USB- PCL printer is connected to the furnace, the necessary software driver is loaded. After that, the USB printer is immediately ready for use. – The status of the USB-PCL printer is shown in the "Information"...

  • Page 31: Maintenance, Cleaning And Diagnosis

    Check the insulation for cracks and damages. If the insulation is worn down it has to Insulation (3) monthly be replaced by a certified Ivoclar Vivadent Service Center. Fine hairline cracks on the surface of the insulation are harmless and do not influence the function of the furnace in a negative fashion.

  • Page 32: Cleaning

    1200 firing recommended to calibrate the furnace. In case of problems with hours. For that reason, Ivoclar Vivadent recommends to have the fur- discolouration of the ceramic, we recommend replacing the firing nace serviced.

  • Page 33: What If

    If an error is detected, the respective error message is displayed. The following error messages may be displayed. If there are any questions, please contact the Ivoclar Vivadent After Sales Service. Index Category Error Conti- Error Message Text...
  • Page 34 A program in progress is stopped. The error cannot be acknowledged; the programs cannot be started. 8.2 Other error messages Please contact the Ivoclar Vivadent After Sales Service, if one of the following error messages is being displayed: 25, 29...

  • Page 35: Technical Malfunctions

    8.2 Technical malfunctions These malfunctions may occur without an error message being displayed. * If there are any questions, please contact the Ivoclar Vivadent After Sales Service. Description Double-check Action Vacuum is not released Is the vacuum released within Wait until the vacuum is released, remove object.

  • Page 36: Product Specifications

    Max. 80 % relative humidity Acceptable ambient pressure 500 mbar to 1060 mbar 9.2 Technical data Use only original packaging of the Programat P700/G2 together with the respective foam material for shipping purposes. Power supply: 110–120 V / 50–60 Hz 200–240 V / 50–60 Hz...

  • Page 37: Appendix

    10. Appendix 10.1 Program table Two program tables (°C / °F) are enclosed to these Operating Instructions. If not, please contact your local Ivoclar Vivadent Service Center. Important information The current program table is also available at: www.ivoclarvivadent.com/downloadcenter The program tables can be downloaded from the Internet as PDF files.

  • Page 38: Menu Structure

    10.2 Menu structure 10.2.1 Possibilities of the program selection...
  • Page 39 10.2.2 Overview of program groups 10.2.3 Settings/information...
  • Page 40 Fax +55 11 3466 0840 www.ivoclarvivadent.com Tel. +1 800 533 6825 www.ivoclarvivadent.com.br Ivoclar Vivadent Marketing Ltd. Fax +1 716 691 2285 Ivoclar Vivadent s.r.l. & C. s.a.s 171 Chin Swee Road www.ivoclarvivadent.us Ivoclar Vivadent Inc. Via Gustav Flora, 32 #02-01 San Centre...
