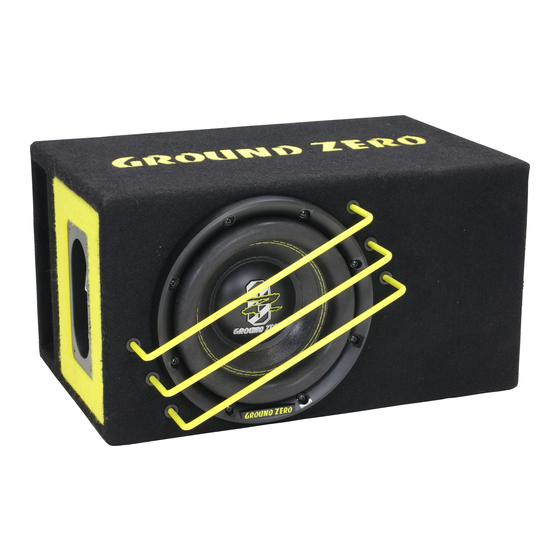

HYDROGEN-SERIES
SUBWOOFER
ANLEITUNG / OWNER'S MANUAL
GZHW 20SPL
Ausstattungsmerkmale / Features
• Hochbelastbarer 20 cm SPL Subwoofer
• Klippel® optimierter 3-Fach Magnet
• Stabiler Aluminium-Guss Korb
• Verstärkte Papier Membrane
• Doppel-Zentrierung
• 63 mm Kupfer Schwingspule
• Langhub Sandwich Sicke
• Push Terminals
o High Power 8" SPL Subwoofer
o Klippel® optimized Triple-Magnet
o Stable aluminum cast basket
o Reinforced paper cone
o Double spider
o 63 mm / 2.5" Copper voice coil
o High-Roll sandwich surround
o Push terminals
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ground Zero GZHW 20SPL
Summary of Contents for Ground Zero GZHW 20SPL
- Page 1 HYDROGEN-SERIES SUBWOOFER ANLEITUNG / OWNER’S MANUAL GZHW 20SPL Ausstattungsmerkmale / Features • Hochbelastbarer 20 cm SPL Subwoofer • Klippel® optimierter 3-Fach Magnet • Stabiler Aluminium-Guss Korb • Verstärkte Papier Membrane • Doppel-Zentrierung • 63 mm Kupfer Schwingspule • Langhub Sandwich Sicke •...
- Page 2 Technische Daten / Specifications GZHW 20SPL Voice Coil Diameter mm / inch 63 / 2.5" Impedance Ohm 2 x 1 Re Ohm (Serial) 2.01 FS Hz 38.3 6.04 0.407 0.381 Vas Liter / cu.ft. 4.77 / 0.168 MMS gr 196.68 Xmax mm / inch 40 / 1.57”...
- Page 3 Gehäuseempfehlung / Enclosure recommendation Bassreflex / Vented 22 Liter netto / 0.78 cu.ft. net (Rot / Red) 8 cm / 3.15” Port 27 cm / 10.63” Portlänge / Length* 45 Hz / 36 Hz Fb / F3 8 Liter netto geschlossen / 0.28 cu.ft. net sealed Bandpass 4 th order 14 Liter netto ventiliert / 0.49 cu.ft.
- Page 4 Verbesserungen an dem Produkt vorzunehmen ohne den Kunden darüber zu informieren. Terms of warranty The limited warranty for this product is covered by Ground Zero´s local distribution partners and their terms and conditions. For further information contact your local retailer or distributor.
