Ground Zero HYDROGEN SERIES Owner's Manual
Hide thumbs
Also See for HYDROGEN SERIES:
- Owner's manual (39 pages) ,
- Owner's manual (4 pages) ,
- Owner's manual (8 pages)
Table of Contents
Advertisement
Quick Links
HYDROGEN-SERIES

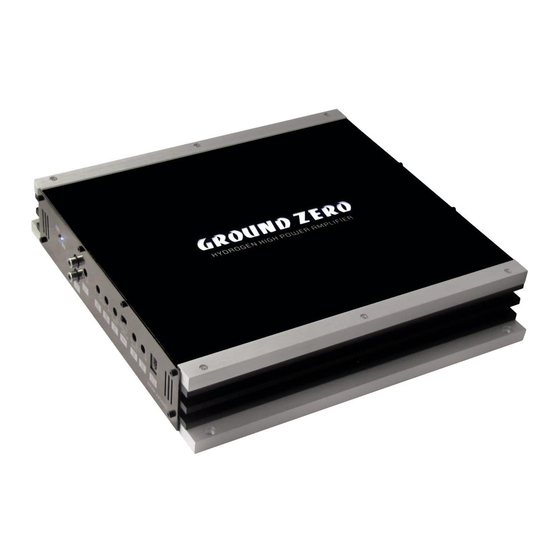

GZHA 4200XII
•
2 Ohm stable Stereo
•
4 Ohm bridgeable
•
Mosfet power supply
•
SMD Technology
•
Power & Protection indicator
•
Variable 12dB bass boost (45Hz)
•
Variable highpass / subsonic
•
Variable lowpass
•
Adjustable input sensitivity
•
Soft delayed remote turn- on
•
Bass remote control
•
RCA output
•
Thermal / Short / Overload protection
AMPLIFIER
OWNER'S MANUAL
Features
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ground Zero HYDROGEN SERIES
Summary of Contents for Ground Zero HYDROGEN SERIES
- Page 1 HYDROGEN-SERIES AMPLIFIER OWNER’S MANUAL GZHA 4200XII Features • 2 Ohm stable Stereo • 4 Ohm bridgeable • Mosfet power supply • SMD Technology • Power & Protection indicator • Variable 12dB bass boost (45Hz) • Variable highpass / subsonic • Variable lowpass •...
-
Page 2: Planning Your System
Tools and materials you need • Screwdriver • Electric drill, 3 mm / 0.12” carbide drill bit • Mounting screws • Power wire min. 25 mm² / 4AWG • Ground wire min. 25 mm² / 4AWG • Speaker wire min. 2 x 2,5 mm² / 13AWG Please note! •... - Page 3 Controls and functions - 3 -...
-
Page 4: Controls And Functions
Controls and functions Speaker terminals For connection of the speakers GND -> Ground connection Power terminals REM -> Remote antenna terminal BATT -> +12 Volt WHITE – OK Status indication RED – Error Terminal for connection of the RCA wires. RCA inputs To avoid failure, please use high quality RCA wires. - Page 5 Stereo wiring - 5 -...
- Page 6 Stereo wiring Trimode wiring - 6 -...
-
Page 7: Specifications
Trimode crossover TRI MODE operation output allows a subwoofer to be operated in mono mode while the main speakers are playing in stereo. Leave the crossover switch on “Full” position. Use 100 volt, non-polar capacitors for a high pass crossover to filter out low frequencies and Air- core or Ferrit- ore coils with a minimum diameter of 1 mm / 0.039”... -
Page 8: Trouble Shooting Guide
We reserve the right to make needed change or improvement to the product without informing customer about this in advance. De Garantie bepalingen van alle door ground zero geleverde producten is volgens wettelijke bepalingen geregeld, Een retourzending kan alleen na duidelijke afspraak en in de originele verpakking plaatsvinden.SVP een aankoopbon en een duidelijke storingsomschrijving bijvoegen.Van garantie uitgesloten zijn defecten door...
