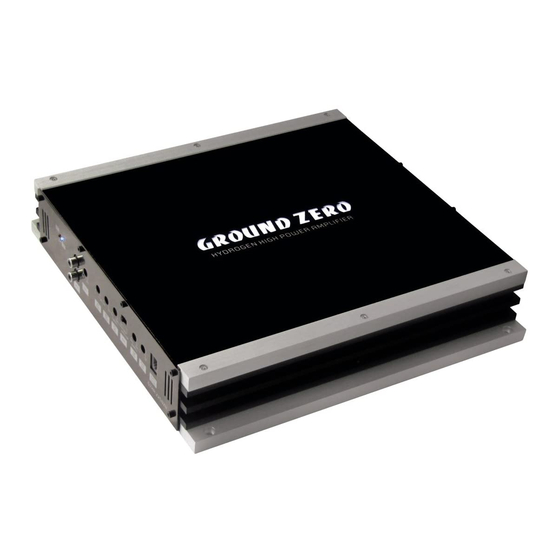

HYDROGEN-SERIES
Mono Amplifier
GZHA MINI ONE-K
Owner's manual
Features
High-efficient class D amplifier technology
•
Installer friendly dimensions
•
1 ohms stable / 2 ohms (in linked configuration)
•
High-level input with auto-on function
•
12 dB adjustable bass boost (@45 Hz)
•
Adjustable low pass filter
•
Adjustable input sensitivity
•
Adjustable subsonic filter
•
0° / 180° Phase shift switch
•
Bass remote control
•
Thermal / short circuit / overload protection
•
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ground Zero Hydrogen Series
Summary of Contents for Ground Zero Hydrogen Series
- Page 1 HYDROGEN-SERIES Mono Amplifier Owner’s manual GZHA MINI ONE-K Features High-efficient class D amplifier technology • Installer friendly dimensions • 1 ohms stable / 2 ohms (in linked configuration) • High-level input with auto-on function • 12 dB adjustable bass boost (@45 Hz) •...
- Page 2 Gerenal mounting instructions • As a precaution, it is recommended to disconnect the vehicles battery before mounting the amplifier. (Note: For new vehicles, disconnecting the battery might cause various errors in your vehicle´s electric system that can be cleared only by authorized service partners of your vehicle´s manufacturer! Please ask your service partner first before disconnecting the battery!) •...
-
Page 3: Controls And Features
Controls & Features SPEAKER terminal Speaker connection GROUND - ground terminal POWER supply terminal - remote wire / not to be used together with high-level input BATT+ - +12 Volt wire from battery terminal POW - green -> ok (correct operation) Status LEDs PRO - red ->... - Page 4 RCA input wiring High-level input wiring...
- Page 5 Link mode mode wiring...
-
Page 6: Specifications
Specifications Model GZHA MINI ONE-K Type Mono Class D RMS Power @ 4 Ω 340 W (1% THD+N) CEA Standard CEA-2006-A RMS Power @ 2 Ω 600 W (1% THD+N) CEA Standard CEA-2006-A RMS Power @ 1 Ω 1000 W (1% THD+N) CEA Standard CEA-2006-A RMS Power @ 2Ω... -
Page 7: Troubleshooting Guide
Trouble shooting guide Symptoms Check / Cause Action Check protection fuse(s) of the amplifier Check remote wire connection (RCA input mode) Does the POW LED turn to green? No audible Check +12 Volt power supply wire connection sound Check ground wire connection Did the PRO LED turned to red? Check for speaker short or amplifier overheating Power supply of the amplifier? - Page 8 Terms of warranty The limited warranty for this product is covered by Ground Zero´s local distribution partners and their terms and conditions. For further information contact your local retailer or distributor. Ground Zero GmbH Erlenweg 25, 85658 Egmating, Germany Tel. +49 (0)8095/873 830 Fax -8310 www.ground-zero-audio.com...
