HYDROGEN-SERIES
SUBWOOFER
ANLEITUNG / OWNER'S MANUAL

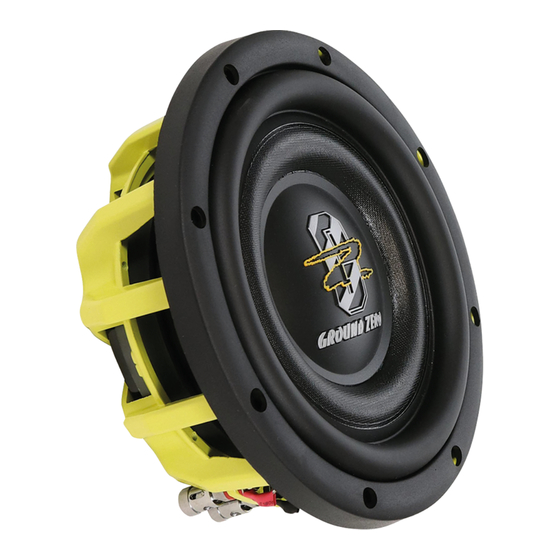

GZHW 25SPL
Ausstattungsmerkmale / Features
• Hochbelastbarer 25 cm SPL Subwoofer
• Klippel® optimierter 3-Fach Magnet
• Stabiler Aluminium-Guss Korb
• Verstärkte Papier Membrane
• Doppel-Zentrierung
• 63 mm Kupfer Schwingspule
• Langhub Sandwich Sicke
• Push Terminals
o High Power 10" SPL Subwoofer
o Klippel® optimized Triple-Magnet
o Stable aluminum cast basket
o Reinforced paper cone
o Double spider
o 63 mm / 2.5" Copper voice coil
o High-Roll sandwich surround
o Push terminals
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ground Zero GZHW 25SPL
Summary of Contents for Ground Zero GZHW 25SPL
- Page 1 HYDROGEN-SERIES SUBWOOFER ANLEITUNG / OWNER’S MANUAL GZHW 25SPL Ausstattungsmerkmale / Features • Hochbelastbarer 25 cm SPL Subwoofer • Klippel® optimierter 3-Fach Magnet • Stabiler Aluminium-Guss Korb • Verstärkte Papier Membrane • Doppel-Zentrierung • 63 mm Kupfer Schwingspule • Langhub Sandwich Sicke •...
- Page 2 Technische Daten / Specifications GZHW 25SPL Voice Coil Diameter mm / inch 63 / 2.5" Impedance Ohm 2 x 1 Re Ohm 1.92 FS Hz 41.8 7.976 0.519 0.487 Vas Liter / cu.ft. 8.53 / 0.3 MMS gr 267.59 Xmax mm / inch 45 / 1.77”...
- Page 3 Gehäuseempfehlung / Enclosure recommendation Bassreflex / Vented 40 Liter netto / 1.412 cu.ft. net (Rot / Red) 10 cm / 4” Port 25 cm / 8.27” Portlänge / Length* 42 Hz / 34 Hz Fb / F3 14 Liter netto geschlossen / 0.49 cu.ft. net sealed Bandpass 4 th order 28 Liter netto ventiliert / 0.99 cu.ft.
- Page 4 Verbesserungen an dem Produkt vorzunehmen ohne den Kunden darüber zu informieren. Terms of warranty The limited warranty for this product is covered by Ground Zero´s local distribution partners and their terms and conditions. For further information contact your local retailer or distributor.
