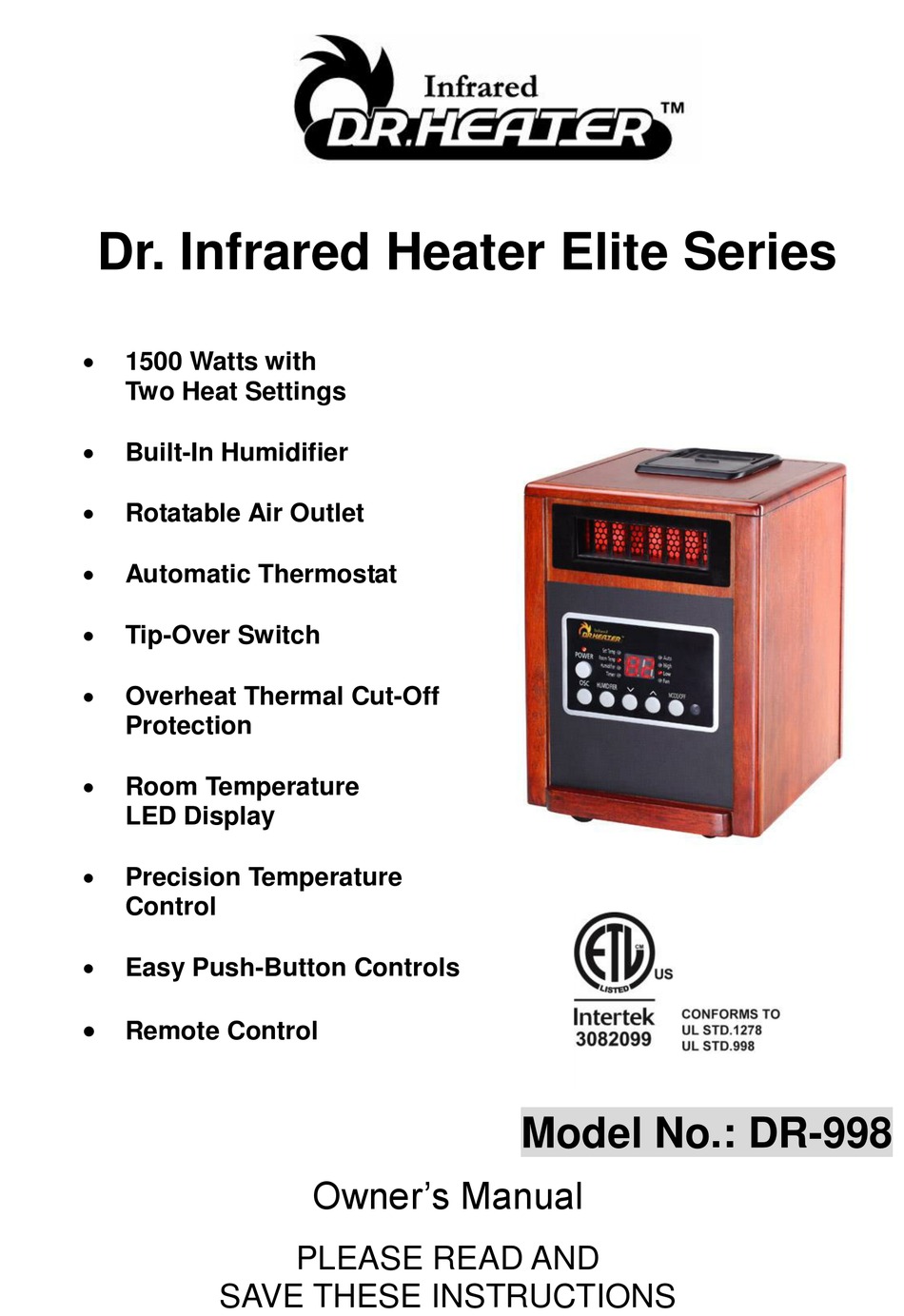

Dr. Infrared Heater Elite Series
1500 Watts with
Two Heat Settings
Built-In Humidifier
Rotatable Air Outlet
Automatic Thermostat
Tip-Over Switch
Overheat Thermal Cut-Off
Protection
Room Temperature
LED Display
Precision Temperature
Control
Easy Push-Button Controls
Remote Control
SAVE THESE INSTRUCTIONS
Owner's Manual
PLEASE READ AND
Model No.: DR-998

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DR-998 Elite Series and is the answer not in the manual?

Questions and answers

Bob
March 20, 2025

Why does steam emit from the top of the DR-998 model? The water bottle was empty but heater still on.

1 comments:
Mr. Anderson
May 14, 2025

Steam should not emit from the top of the DR. Heater model DR-998 when the water bottle is empty. If steam is observed in this condition, it may indicate a malfunction in the humidifier system.

This answer is automatically generated

Summary of Contents for DR. Heater DR-998 Elite Series

  • Page 1 Dr. Infrared Heater Elite Series  1500 Watts with Two Heat Settings  Built-In Humidifier  Rotatable Air Outlet  Automatic Thermostat  Tip-Over Switch  Overheat Thermal Cut-Off Protection  Room Temperature LED Display  Precision Temperature Control  Easy Push-Button Controls ...
  • Page 2: Important Instructions

    furnishings at least 3 feet (0.9 m) CONGRATULATIONS! from the front and rear of the heater. he Dr. Infrared Heater Elite Series you have just IMPORTANT purchased is a safe and powerful heater, designed to heat a INSTRUCTIONS room after a few minutes of operation. When using this appliance, basic The far-infrared Quartz-PTC heating precautions should always be...
  • Page 3 7. Do not run the cord under 15. This heater includes an overheat carpeting and do not cover the protection system that shuts off cord with throw rugs, runners or the unit when parts are becoming the like. Do not route cord under excessively hot.
  • Page 4 contact Dr. Infrared Heater 2. Open the cover of the humidifier Authorized Service Center. and take out the bottle connector, as shown in Figure 2. 20. CHECK YOUR HEATER CORD BOTTLE AND PLUG CONNECTIONS. CONNECTOR Faulty wall outlet connections or loose plugs can cause the outlets or plug to overheat.
  • Page 5: Operating Instructions

    HOOKS DC JACK FIG 6 Operating Instructions 1. Plug the power supply cord into a grounded wall outlet (120VAC, 60Hz). Important: This heater comes with a FIG 4 grounded (three-prong) plug. The CAUTION: Make sure the two hooks grounded plug must be used with a are fully inserted and the DC grounded outlet.
  • Page 6 Press the button once until the numeric temperature starts flashing. Press the button again to increase the temperature or the button to decrease the temperature. After the desired temperature is set, this will be your ideal setting. The heater will run on HIGH until the room temperature reaches the set 2.
  • Page 7: Remote Controller

    7. SETTING THE AIR OUTLET The timer can be set from Press the OSC button. The air 1 to 12 hours. The timer will set outlet can be rotatable left and and execute after the LED display right. stops flashing. The heater will shut OFF automatically when the set For more efficient heating, try placing time is reached.
  • Page 8: Cleaning The Humidifier

    Cleaning the electrostatic Cleaning the humidifier The humidifier should be cleaned filter once per month or as needed to The heater has an electrostatic filter ensure efficient operation. located at the rear. The filter should be cleaned once per month or as 1.
  • Page 9: Special Features

    Features A. “Cool-Touch” cabinet E. Decrease temperature button B. POWER button F. Increase temperature button C. Rotatable air outlet button G. MODE/OFF button D. Humidifier button H. LED display Special Features LED Display – When the unit is plugged in, the LED display will show the room temperature.
  • Page 10 QUESTIONS AND ANSWERS Why does the blower fan keep running after I have pressed the power off button? The blower fan will continue to run until the heat chambers cool down. After a few minutes the fan will shut off automatically. What if the heater’s airflow seems to have diminished? Please ensure the rear intake is not blocked and that the filter is clean.
  • Page 11 Can the heater be used in a bathroom? It is not recommended due to a bathroom’s high level of moisture. Can the heater be used in a basement or garage? Yes, but keep in mind that rooms with little insulation will not retain the heat as efficiently.
  • Page 12 What is zone heating? Zone heating focuses heat where people spend the most time. After all, there is no point in heating multiple rooms to +68 degrees when not in use. Can I use an extension cord, surge protector, or power strip with my heater? No.
  • Page 13 How long is the warranty? This heater comes with a THREE-YEAR LIMITED WARRANTY. If your unit does not appear to be working properly, please contact our service center by calling 1-800-317-1688. Prior to your call, we encourage you to visit our service related website www.DrHeaterUSA.com for troubleshooting tips and...
