ASSEMBLY RATING
The Assembly Rating is a 5-point system that
shows the degree of effort needed in
assembling a specific product (with 1 being
easy and 5 being difficult). For some
products, two persons are recommended.
EASY
Assembly Instructions
CM7547-TR
DIFFICULT
Tools Required For Assembly:
Allen Wrench
Phillips Screwdriver
2 PERSONS RECOMMENDED
Page 1 of 5
(Included)
(Not Included)
Rev: 19-01-14
Advertisement
Related Manuals for Furniture of America Kirsten CM7547-TR
Summary of Contents for Furniture of America Kirsten CM7547-TR
- Page 1 Assembly Instructions For more information contact our team: service.ec@foagroup.com CM7547-TR ASSEMBLY RATING Tools Required For Assembly: The Assembly Rating is a 5-point system that Allen Wrench shows the degree of effort needed in (Included) assembling a specific product (with 1 being Phillips Screwdriver easy and 5 being difficult).
- Page 2 LOOSEN OVER TIME AND MAY CAUSE THE FURNITURE TO BE WOBBLY AND UNABLE TO SUPPORT ITS INTENDED WEIGHT CAPACITY. THIS MAY LEAD TO COLLAPSE AND MAY CAUSE SERIOUS INJURY. FAILURE TO FOLLOW THE GUIDELINES ABOVE MAY RESULT IN INJURY AND/OR PROPERTY DAMAGE. FURNITURE OF AMERICA.ALL RIGHTS RESERVED. Page 2 of 5...
- Page 3 Before you begin, please read Page 2 of "Assembly and Care Advice". And remember, do not tighten until each step is completed or instructed. #1 x 1pc #A x 4pcs Trundle Storage Roller Box Front Panel #2 x 1pc #B x 8pcs Trundle Storage JCBC M6 X 35mm Box Back Panel...
- Page 4 Align side panels (#6) to front and back panels (#1,2), then secure by using bolts (#B) with washers (#C,D). #B x 8pcs #C x 8pcs #D x 8pcs #C #D 2) Align wheels (#A) to the marked line of the panels, then secure by using screws (#F).

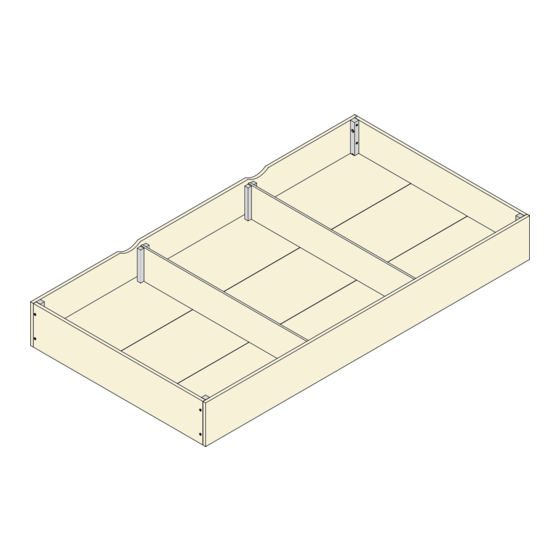

- Page 5 Place bottom panels (#4,5) onto the trundle. Slide divider panels (#7) onto trundle. Page 5 of 5...
