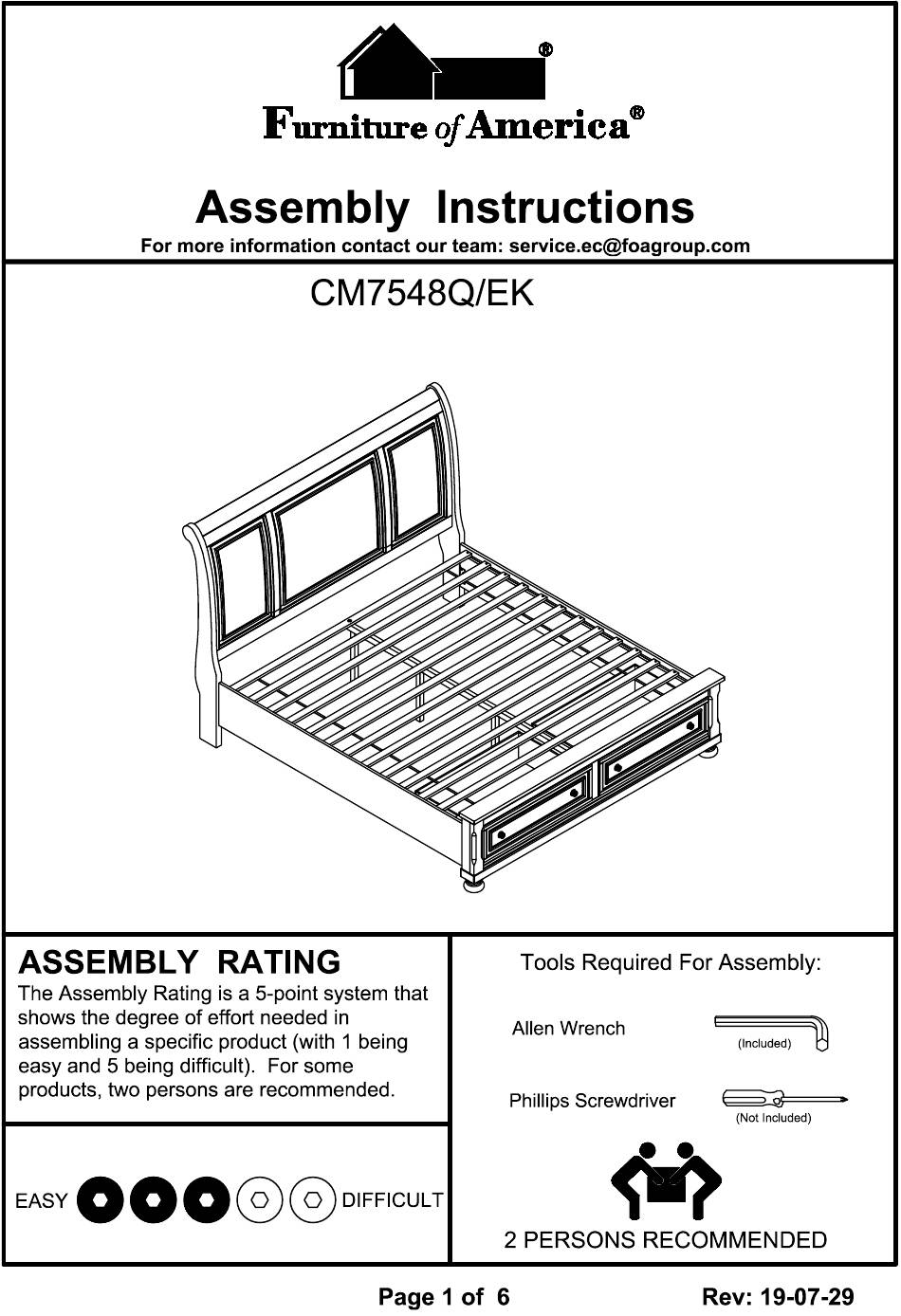

Assembly Instructions
EASY
DIFFICULT
Page 1 of 6
ASSEMBLY RATING
The Assembly Rating is a 5-point system that
shows the degree of effort needed in
assembling a specific product
(with 1 being
easy and 5 being difficult). For some
products, two persons are recommended.
CM7548 Q/EK
2 PERSONS RECOMMENDED
Tools Required For Assembly:
Allen Wrench
(Included)
For more information contact our team: service.ec@foagroup.com
Phillips Screwdriver
(Not Included)
Rev: 19-07-29
Advertisement
Related Manuals for Furniture of America CM75488Q/EK
Summary of Contents for Furniture of America CM75488Q/EK
- Page 4 Align HB legs (#2R/L) to headboard (#1), then secure by using bolts (#A) with washers (#B,C).
- Page 5 Attach support leg (#5) to footboard (#3). Attach legs (#4) to footboard (#3). Align and hook the side rails (#5) to the headboard (#1) and footboard (#3).
- Page 6 Attach support legs (#9,10) to the center slat (#8). Adjust leveler on the support legs (#10) according to ground level. Secure slat (#7) to side rails by using screws (#H). Secure center slat (#8) to slats (#7) by using bolts (#D) with washers (#E,F).
- Page 11 Align HB legs (#2R/L) to headboard (#1), then secure by using bolts (#A) with washers (#B,C). Attach support leg (#5) to footboard (#3). Attach legs (#4) to footboard (#3).
- Page 12 Align and hook the side rails (#5) to the headboard (#1) and footboard (#3). Attach support legs (#9,10) to the center slat (#8). Adjust leveler on the support legs (#10) according to ground level.
- Page 13 Secure slat (#7) to side rails by using screws (#H). Secure center slat (#8) to slats (#7) by using bolts (#D) with washers (#E,F). Align top side rails (#11) to the upper holes of the side rails, then secure by using bolts (#J).
