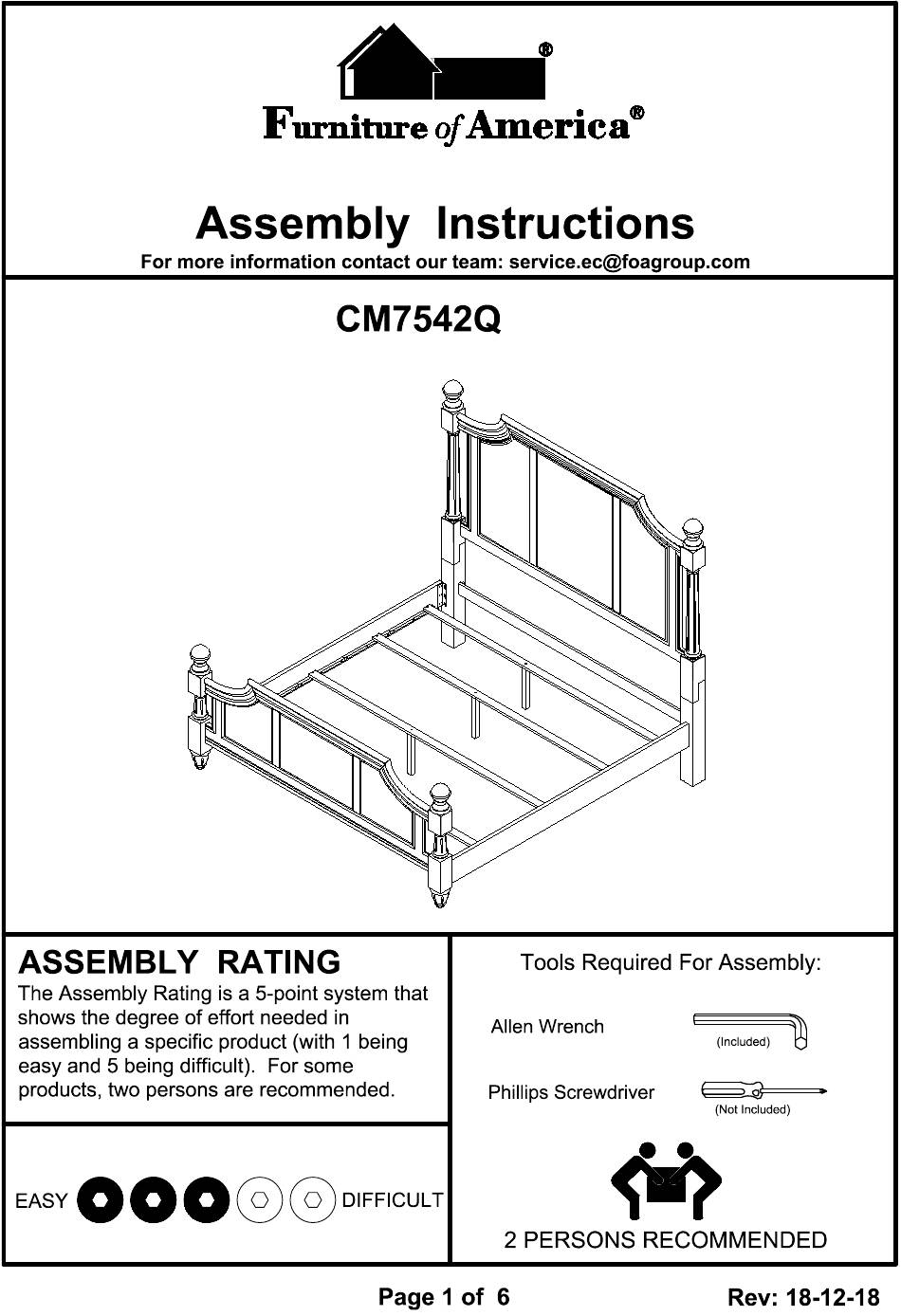

Assembly Instructions
EASY
DIFFICULT
Page 1 of 6
ASSEMBLY RATING
The Assembly Rating is a 5-point system that
shows the degree of effort needed in
assembling a specific product
(with 1 being
easy and 5 being difficult). For some
products, two persons are recommended.
Rev: 18-12-18
2 PERSONS RECOMMENDED
Tools Required For Assembly:
Allen Wrench
(Included)
Phillips Screwdriver
(Not Included)
For more information contact our team: service.ec@foagroup.com
CM7542Q

Advertisement

loading
Need help?

Need help?

Do you have a question about the CM7542Q and is the answer not in the manual?

Questions and answers

Related Manuals for Furniture of America CM7542Q

Summary of Contents for Furniture of America CM7542Q

  • Page 4 Attach HB finials (#3) to the headboard (#1). Align HB legs (#2R/L) to the headboard (#1), then secure by using bolts (#A) with washers (#D,E). Align HB legs (#2R/L) to the HB support rail (#4), then secure by using bolts (#B) with washers (#D,E).
  • Page 5 Attach FB finials (#7) to the footboard (#5). Attach bun feet (#6) to the footboard (#5). Align side rails (#10) to the headboard (#1) and footboard (#5), then secure by using bolts (#C).
  • Page 6 Attach support legs (#9) to the slats (#8), then adjust levelers on the support legs (#9) according to ground level. Align slats (#8) to the side rails (#10), then secure by using screws (#G).
