VERSION # 20-09-29
1 / 9
MODEL #
CM7540EK
Questions?
GIVE US A CALL: 1-888-980-5122
MON – FRI 8:30AM – 5:30PM (PST)
TOOLS REQUIRED
3 - People
Recommended
ASSEMBLY RATING
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America Christie CM7540EK
Summary of Contents for Furniture of America Christie CM7540EK

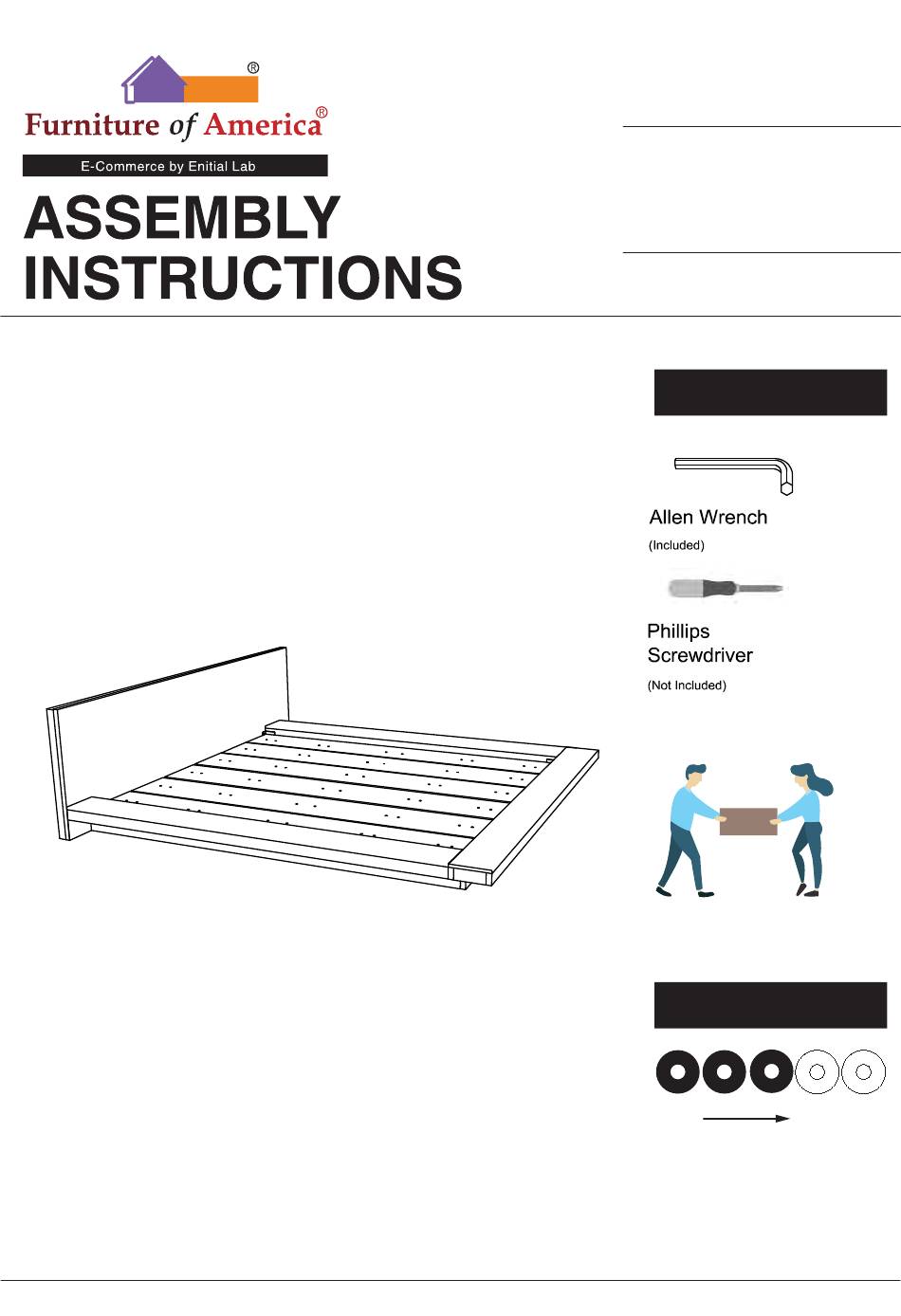

- Page 1 MODEL # CM7540EK Questions? GIVE US A CALL: 1-888-980-5122 MON – FRI 8:30AM – 5:30PM (PST) TOOLS REQUIRED 3 - People Recommended ASSEMBLY RATING EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 Furniture America FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 9...
- Page 5 EASTERN KING BED CM7540EK #3 2pcs #2 1pc Headboard Side Rail Bed Slat w/o Bed Slat with marking marking -1951 x 45 x 18 -1951 x 45 x 18 Bed Slat Support Concealed Panel -82 x 30 x 30 -2040 x 295 x 9 #B 4pcs Bolt 5/16 "...
- Page 6 CM7540EK is packed in 3 cartons Carton Designation Part Hardware Headboard CM7540EK-HB (1pc) Footboard CM7540EK-FB (1pc) #A x 10pcs Side Rail (2pcs) #B x 4pcs Bed Slat w/o #C x 8pcs marking (3pcs) CM7540EK-R #D x 4pcs Bed Slat with marking (2pcs) #E x 1pc...
- Page 7 ASSEMBLY INSTRUCTIONS 1) Prepare 4 bolts assembly by inserting (#C) onto bolts (#B). Insert bolts (#B) to headboard (#1) 75% in, then hook side rails (#3) to the bolts (#B) on headboard (#1). Secure by inserting washer (#C) and wing nut (#D) from the back of the Hardware Part #B x4pcs...
- Page 8 ASSEMBLY INSTRUCTIONS Place slats (#4,5) to the side (#3) as shown in the picture. Secure by using screws (#G). Hardware #G x10pcs 1) Please refer to steps (#5) on how to align and place concealed panels(#7) correctly. Part #7 x5pcs Hardware 2) Secure concealed panels (#7) to bed slats by using screws (#H).
- Page 9 ASSEMBLY INSTRUCTIONS This is how the concealed panel (#7) look like on the bed from a high view. 9 / 9...
