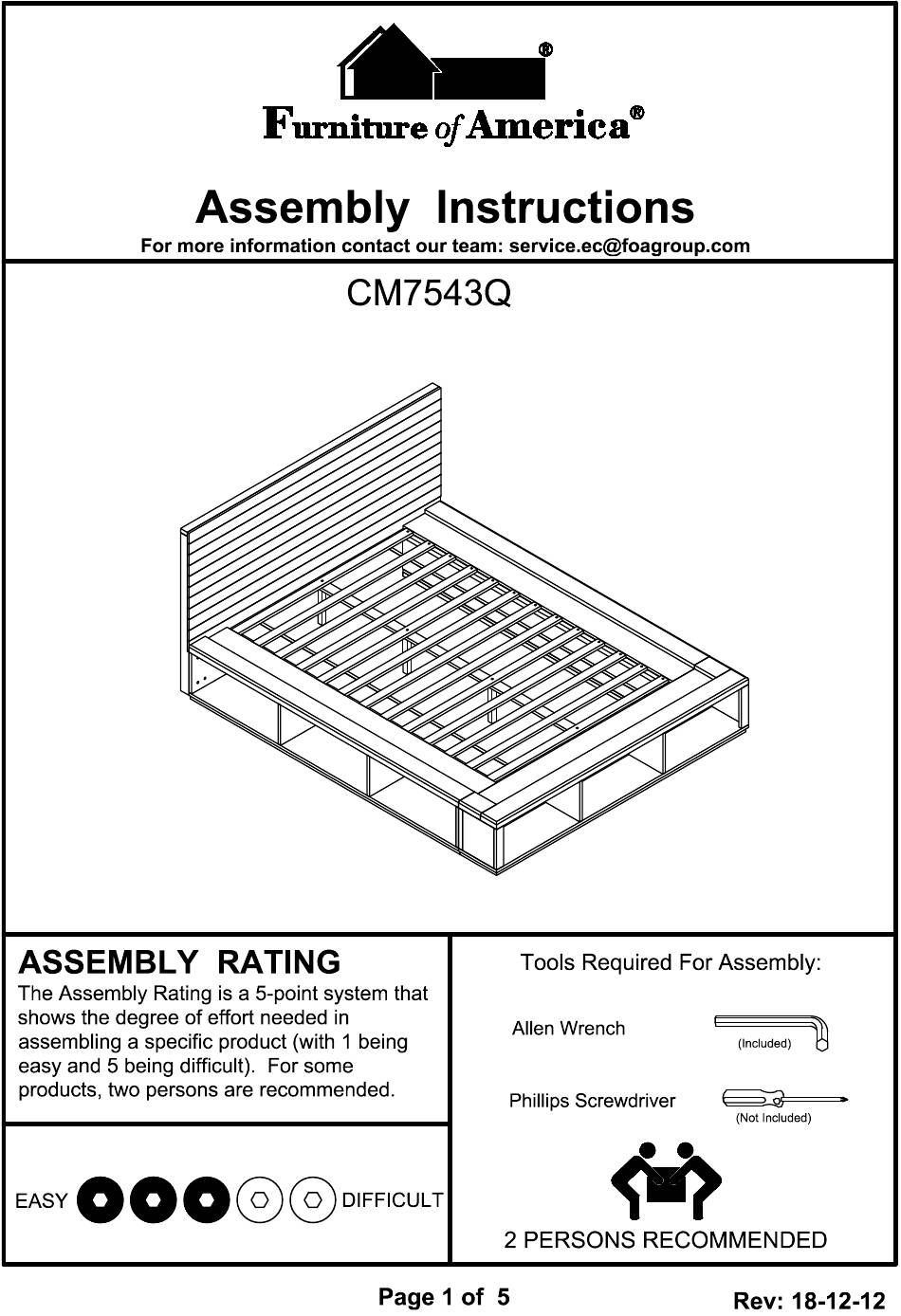

Assembly Instructions
EASY
DIFFICULT
Page 1 of 5
ASSEMBLY RATING
The Assembly Rating is a 5-point system that
shows the degree of effort needed in
assembling a specific product
(with 1 being
easy and 5 being difficult). For some
products, two persons are recommended.
CM75 43Q
2 PERSONS RECOMMENDED
Tools Required For Assembly:
Allen Wrench
(Included)
For more information contact our team: service.ec@foagroup.com
Phillips Screwdriver
(Not Included)
Rev: 18-12-12
Advertisement
Related Manuals for Furniture of America Torino CM7543Q
Summary of Contents for Furniture of America Torino CM7543Q
- Page 4 Align side rails (#3) to the headboard (#1) and footboard (#2), then secure by using bolts (#A) with washers (#B,C). Lay slats (#4) flat, then align center slat (#5) to the slats (#4). Secure by using support legs (#6).
- Page 5 Secure slats (#4) onto side rails (#3) by using screws (#E).
- Page 9 Align side rails (#3) to the headboard (#1) and footboard (#2), then secure by using bolts (#A) with washers (#B,C). Lay slats (#4) flat, then align center slat (#5) to the slats (#4). Secure by using support legs (#6).
- Page 10 Secure slats (#4) onto side rails (#3) by using screws (#E).
- Page 11 Align top side rails (#7) to the side rails (#3), then secure by using bolts (#F).
- Page 15 Align side rails (#3) to the headboard (#1) and footboard (#2), then secure by using bolts (#A) with washers (#B,C). Lay slats (#4) flat, then align center slat (#5) to the slats (#4). Secure by using support legs (#6).
- Page 16 Secure slats (#4) onto side rails (#3) by using screws (#E).
