This manual shall be read carefully before starting. Directions included in this operation manual
shall be strictly followed
Add:Rm1817, Dongcheng Int'l Plaza,No.3, Huangpu East Road,Guangzhou City, China
E-mail:sales@bevsinfo.com
Oven Loggermaster
BEVS 2301
User Manual
PAGE 1
Http://www.bevsinfo.com
Advertisement
Related Manuals for BEVS 2301
Summary of Contents for BEVS 2301
- Page 1 Oven Loggermaster BEVS 2301 User Manual Version This manual shall be read carefully before starting. Directions included in this operation manual shall be strictly followed PAGE 1 Add:Rm1817, Dongcheng Int’l Plaza,No.3, Huangpu East Road,Guangzhou City, China E-mail:sales@bevsinfo.com Http://www.bevsinfo.com...
- Page 2 Catalogue 1. Brief Introduction 1.1. Overview 1.2. Exchange Battery 1.3. Connect Probe 2. Operating Instruction 2.1 Quick Start 2.2 Structural Block Diagram of Function Menu 2.2.2 Function Instruction 2.3 Heat Insulation Box, Protecting logged data 2.3.1 Preparing for Measurement 2.3.2 Precaution 2.3.3 Mounting Probe 3.
- Page 3 3.4 Remark the Curve 3.5 Print the Curve PAGE 3 Add:Rm1817, Dongcheng Int’l Plaza,No.3, Huangpu East Road,Guangzhou City, China E-mail:sales@bevsinfo.com Http://www.bevsinfo.com...
-
Page 4: Brief Introduction

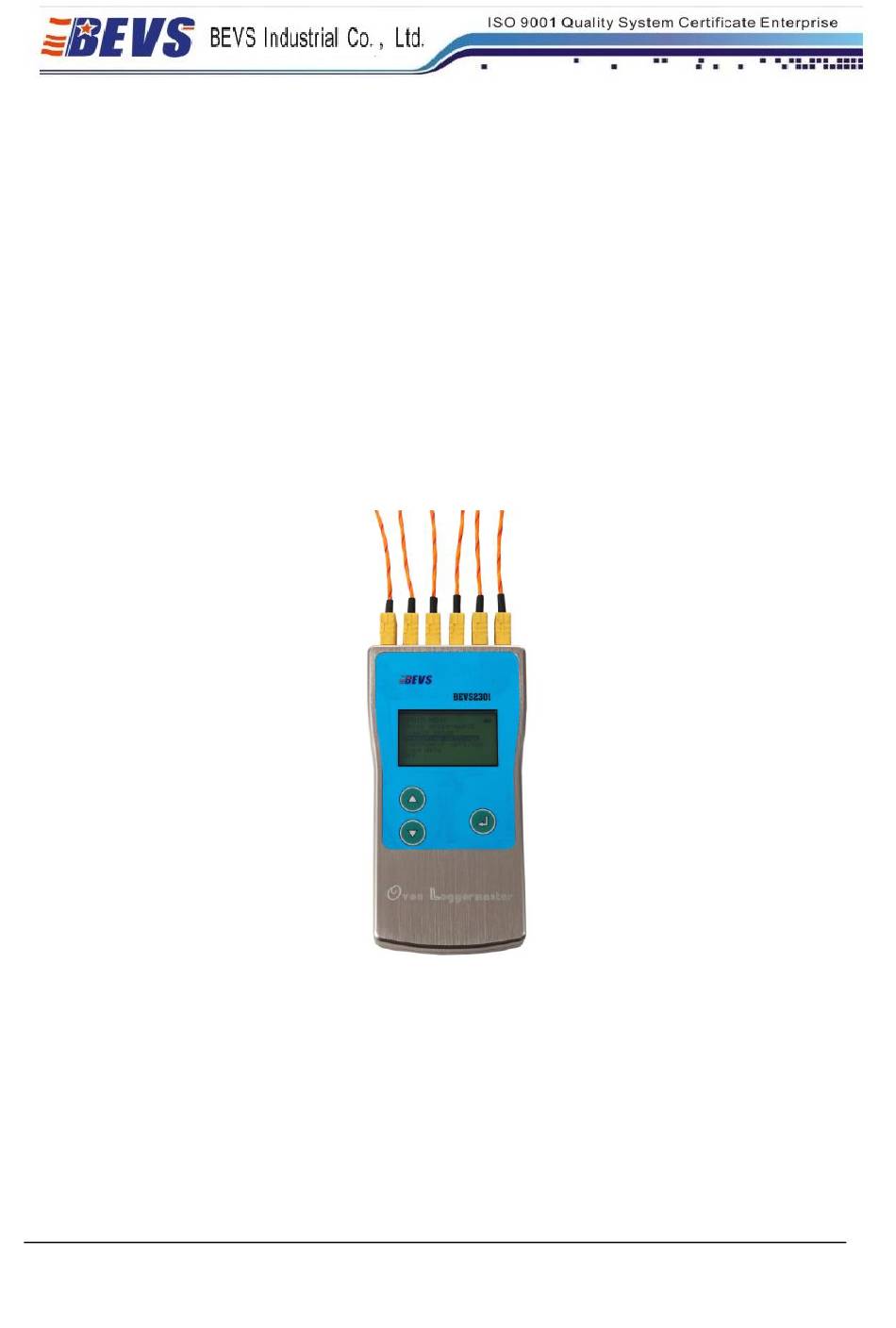

1. Brief Introduction 1.1 Overview Type K Thermocouple connectors1 Monitor, displaying HMI and temperature etc. Confirm Button, Up Button, move up confirm the selected the highlight cursor the highlight item Down Button, move down the highlight USB port, for download cursor and charging PAGE 4... - Page 5 1.2 Exchange Battery The Oven Data logger is equipped with a rechargeable battery, the same as normal mobile phones. When the monitor displays “Low Battery”, please connect the USB line to the charger or PC USB port. There are 3 3.7V Standard 16349 batteries (Input Voltage Limited: 4.2), please exchange as follow. Remove the two screws with cross screwdriver Notice the battery electrode, shunt connection, incorrect installation will...
-
Page 6: Connect Probe
1.3 Connect probe BEVS Oven Data Logger can be connected with 6 K type Thermocouple connectors1s. The all 6 connectors of the machine numbered from 1 to 6, seen on the back, are accessed with the probe. The machine will detect the connected probe automatically and display the result. - Page 7 2.2 Block Diagram of the Function Menu PAGE 7 Add:Rm1817, Dongcheng Int’l Plaza,No.3, Huangpu East Road,Guangzhou City, China E-mail:sales@bevsinfo.com Http://www.bevsinfo.com...
- Page 8 2.2.2 Function Instruction Quick Measure: Start with the original setup unless “Cover it” or “No Probe Detected” displayed. Paint: Set paint type Interval: Set the logging frequency from 1-3000 second. Start/Stop Temperature: Set start or stop point to log in the sub-menu. The logging will start when a rising temperature passes the start point and will stop when a falling temperature passes the stop point.
- Page 9 number of testing times. No.: Working times Start Timing: the local time of starting a test. Total: numbers of logged data. (Each data contains six records of the six probes) Diagram: curve based on the current data. Delete: delete the selected data 2.3.1 Prepare to test Step1: Make sure the box at room temperature.
- Page 10 Please make sure that the probe cables are free from objects and the oven walls, floor, sealing and burners etc. to prevent them from hooking which may cause severe damage to probe and instrument. Also check if the probes are placed securely so they will not come off during the process. 1.
-
Page 11: Software Installation Windows
3. Software Installation Windows 3.1 Upload data into the computer 1. Install the analysis software and driver. 2. Connect the logger and PC with the USB cable and make sure the logger on. 3. Click the icon to open the software 4. - Page 12 6. Click to upload the data when connected successfully 7. Tick the wanted data and click download 8. Choose to save the profiles and confirm. 9. Make sure the download progress done PAGE 12 Add:Rm1817, Dongcheng Int’l Plaza,No.3, Huangpu East Road,Guangzhou City, China E-mail:sales@bevsinfo.com Http://www.bevsinfo.com...
- Page 13 3.2 Open the Data After downloading, follow the next to get the curve. 1. Click Open 2. Select the file and click to open PAGE 13 Add:Rm1817, Dongcheng Int’l Plaza,No.3, Huangpu East Road,Guangzhou City, China E-mail:sales@bevsinfo.com Http://www.bevsinfo.com...
-
Page 14: Analyze Data
3.3 Analyze Data The set Logging Logging time temperature temperature of of the current Upload the new data to Refresh and you point the current mouse current catalogue will find the file mouse 3.3.1 Zoom in and out the curve Click and hold down the left mouse button. - Page 15 3.3.3 Set temperature curve Set the color and size of the curve in “Probe Info.” 6 Probes No.1-6 Name the probe Set the curve size Set the curve color PAGE 15 Add:Rm1817, Dongcheng Int’l Plaza,No.3, Huangpu East Road,Guangzhou City, China E-mail:sales@bevsinfo.com Http://www.bevsinfo.com...
- Page 16 3.3.4 Set Analysis Item (maximum temperature, time above temperature etc.) Select the item and click right mouse button, the choose Build a new item. Select the whole line Modify the selected item Build a new analysis item Cancel select to hide the probe Double click to change Delete the selected item the curve color...
- Page 17 PAGE 17 Add:Rm1817, Dongcheng Int’l Plaza,No.3, Huangpu East Road,Guangzhou City, China E-mail:sales@bevsinfo.com Http://www.bevsinfo.com...
- Page 18 3.4 Remark the curve Remark the extra information in the note and it can be printed out. 3.5 Print the Curve Save all after finish all the tasks. Click File-Preview-Print, report printed. PAGE 18 Add:Rm1817, Dongcheng Int’l Plaza,No.3, Huangpu East Road,Guangzhou City, China E-mail:sales@bevsinfo.com Http://www.bevsinfo.com...
