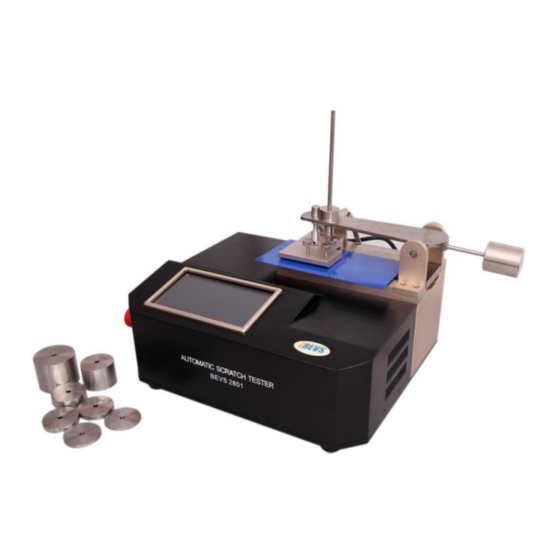

SCRATCH TESTER
BEVS 2801
User Manual
PAGE 1
Http://www.bevsinfo.com
Advertisement
Table of Contents
Related Manuals for BEVS 2801
Summary of Contents for BEVS 2801
- Page 1 SCRATCH TESTER BEVS 2801 User Manual Version 201412 This manual shall be read carefully before starting. Directions included in this operation manual shall be strictly followed. PAGE 1 Add:Rm1818, Dongcheng Int’l Plaza,No.3, Huangpu East Road,Guangzhou City, China E-mail:sales@bevsinfo.com Http://www.bevsinfo.com...
-
Page 2: Table Of Contents
Content 1 Company Profile 2 Product Introduction 2.1 Introduction 2.2 Technical Specification 3 Operation Introduction 3.1 Operating Environment 3.2 Positioned Place 3.3 Power 3.4 Appearance Description 3.5 Operation Guideline 3.5.1 Sample Preparation And Installation 3.5.2 Start To Test 3.5.3 Setting Touch-screen Parameter 3.6 Stylus Place Checking 3.7 Measurement Range 3.8 Touch Screen Use... -
Page 3: Company Profile
1 Company Profile BEVS Industrial Co., Ltd. is a leading manufacturer that specializes in coatings, ink, painting, resin testing instruments and laboratory whole solution. We offer the complete and unique products in this field to meet customer's challenging demands of today and tomorrow, the products are complied with the standards of ISO, ASTM, DIN, BS, EN etc. -
Page 4: Product Introduction
2 Product Introduction For product surface coating, such as coil coating, can ink, 3C ink and automotive coating etc. It is necessary to test its scratch resistance performance. Enable to measure with the BEVS 2801 Automatic Scratch Tester. 2.1 Introduction Scratch Tester is applied to the scratch resistance performance evaluation of single coating or complex coating system in insulated color coated sheet. -
Page 5: Operation Introduction
2.3 Features Big LCD design, touch-screen operation Operating Menu: Chinese or English Adjustable work platform---More convenient Display the test result on the conductive substrate High Hardness Scriber---More durable Special design for sample clamp---Equipped with ruler ... -
Page 6: Power
3.3 Power Must use the power with the ground wire 3.4 Appearance Description 3.4.1 Composition: metal with protective film, driving motor, bearing frame, touch screen control panel. 3.4.2 Install in the test panel evenly, fix the stylus under the small bearing frame in balance arm. 3.5 Operation Guideline 3.5.1 Sample Preparation And Installation 1) Prepare the sample test panels (90 X 150 X 0.2) in accordance with associated product test... -
Page 7: Start To Test
scratching / marring tool without any damaging the panel surface. Locate the panel under the PANEL CLAMP till the edge of the panel touches the back of the CLAMP. Tighten the lock switch to hold the panel in position. Place the initial 100g weight onto the SPINDLE. IMPORTANT: KEEP BOTH HANDS AWAY FROM THE PANEL HOLDER AREA. -
Page 8: Setting Touch-Screen Parameter
3.5.3 Setting Touch-screen Parameter 1）Press “mute” bottom to forbid the buzzle 2）Move “backlight” bottom to adjust the brightness of screen 3.6 Stylus Place Checking 3.6.1 Keep the distance between stylus and sliding plate is less than 0.1mm when the machine is working 3.6.2 For checking whether the distance between stylus and sliding plate is correct or not, connect the power and press the “test”... -
Page 9: Maintenance
Return of goods Where the instrument has to be returned to the local agent or BEVS Industrial Ltd for any reason, it is very important that the original packing box is used. The box has been specially designed to offer good protection for transportation of the instrument. -
Page 10: Packing List
1000g 500g Weight 200g 100g Power lead User Manual Certificate of conformity Touch Pen 7 Order Information BEVS 2801 Scratch Tester BEVS 2801/P/001 Stylus BEVS 2801/P/002 Weight（1000g/500g/200g/100g/50g/20g） PAGE 10 Add:Rm1818, Dongcheng Int’l Plaza,No.3, Huangpu East Road,Guangzhou City, China E-mail:sales@bevsinfo.com Http://www.bevsinfo.com...
