BEVS 2803 User Manual

Linear abraser
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Version 201412
This manual shall be read carefully before starting. Directions included in this operation manual
shall be strictly followed.
Add:Rm1817, Dongcheng Int'l Plaza,No.3, Huangpu East Road,Guangzhou City, China
E-mail:sales@bevsinfo.com

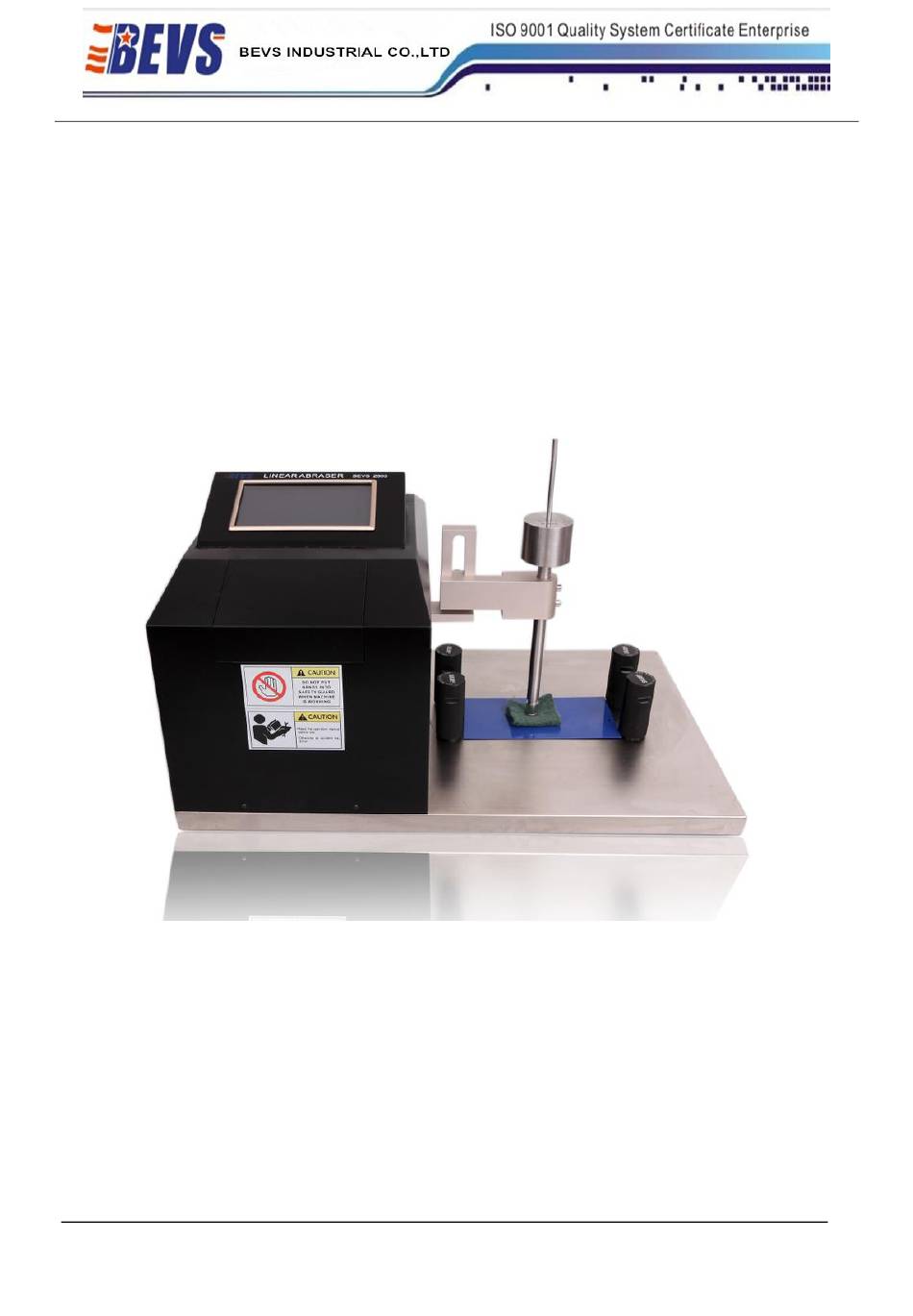

LINEAR ABRASER
BEVS 2803
User Manual
PAGE 1
Http://www.bevsinfo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2803 and is the answer not in the manual?

Questions and answers

Related Manuals for BEVS 2803

Summary of Contents for BEVS 2803

  • Page 1 LINEAR ABRASER BEVS 2803 User Manual Version 201412 This manual shall be read carefully before starting. Directions included in this operation manual shall be strictly followed. PAGE 1 Add:Rm1817, Dongcheng Int’l Plaza,No.3, Huangpu East Road,Guangzhou City, China E-mail:sales@bevsinfo.com Http://www.bevsinfo.com...

  • Page 2: Table Of Contents

    Content 1 Company Profile 2 Product Introduction 2.1 Introduction 2.2 Technical Specification 3 Operation Introduction 3.1 Component Description 3.2 Operating Procedure 3.3 Setting Touch Screen Parameter 3.4 Base Loads and Supplemental Weights 3.5 Specimen Conditioning 4 Maintenance 5 Attention 5.1 Installation Environment 5.2 Other Attention 6 Order Information of Accessories 7 Packing List...

  • Page 3: Company Profile

    ISO, ASTM, DIN, BS, EN etc. With strong supports and hard work by lots of end-users and worldwide agents, BEVS become more and more famous in the world and provides more competitive values for our customers.

  • Page 4: Product Introduction

    2 Product Introduction 2.1 Introduction: It is designed according to the American Dupont standard and applied to the abrasion resistant test for all kinds of nonconductive coating layers. To evaluate the abrasion degree of samples by using rubber, artificial sweat, steel wool or alcohol to scrub the surface of the samples. ...

  • Page 5: Operation Introduction

    3 Operation Introduction 3.1 Component Description Touch Screen Spline shaft Collect assembly Working Platform Toolbox Height adjustment handle Support Arm 3.2 Operating Procedure 3.2.1 Connect power (220V/50Hz） 3.2.2 Turn on the power; the switch is on the back of the instrument 3.2.3 Enter the welcome screen and select the language PAGE 5 Add:Rm1817, Dongcheng Int’l Plaza,No.3, Huangpu East Road,Guangzhou City, China...
  • Page 6 3.2.4 Set the scrub speed and times according to the need 1） Speed Setting： Press bottom to increase the run speed, press bottom to decrease the run speed 2）Scrub Times Setting：Slide to the right to increase the scrub times，slide to left to decrease the scrub times Scrub Speed Scrub Times...

  • Page 7: Setting Touch Screen Parameter

    Start and Stop Bottom 3.2.9 Press the STOP bottom to stop the test in the test procedure. The machine will stop automatically when reach to the setting testing times 3.3 Setting Touch Screen Parameter 3.3.1 Set the run parameter by enter RUN SETTING 1）Open this setting screen, quickly set the scrub times and speed 2）Can't adjust the scrub times and speed on the screen when open the desktop to lock...

  • Page 8: Base Loads And Supplemental Weights

    1）Enable to change the brightness of the screen 2）Enable to change the language(Chinese/English) 3）Turn on or off the Buzzle 4）When it is in power saving mode, the machine will standby with closing the brightness if long time no press Change Brightness Change Language Turn On or Off the Buzzle Power Saving Mode...

  • Page 9: Maintenance

    recommended that all tests be conducted in the standard laboratory atmosphere of 23± 2℃ with 50± 5% relative humidity. 4 Maintenance 4.1 For better extend the life of the machine, please have the maintenance regularly according to the suggestions as follow: 4.1.1 For better running, please put the sample in the middle platform 4.1.2 The maximum load: ≤2 Kg 4.1.3 Maintain the operation shaft by using the WD-40 Lubricating Oil after the normal use...

  • Page 10: Order Information Of Accessories

    Scrub Tool BEVS 2803/P/001 Scrub Tool BEVS 2803/P/002 BEVS 2803/P/003 Weight BEVS 2803/P/004 Gradienter BEVS 2803/P/005 Open-end Wrench BEVS 2803/P/006 Screwdriver BEVS 2803/P/007 Cross Screwdriver BEVS 2803/P/008 Brush BEVS 2803/P/009 Magnetic fixture BEVS 2483/P/010 Instrument Screw Feet 7 Packing List 1.Main...
