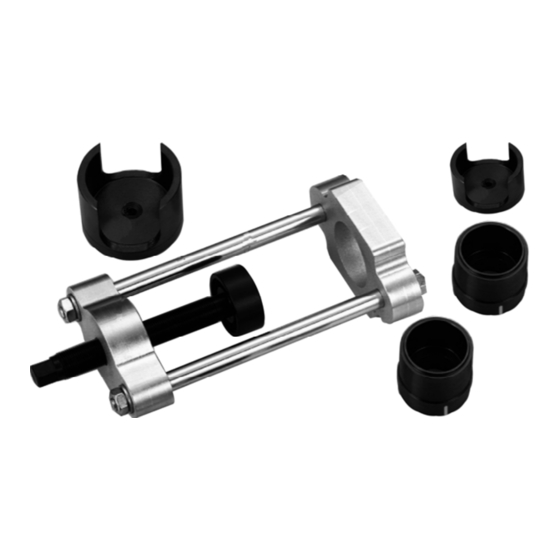

Ball Joint Tool for BMW 3 Series
A professional quality tool designed for easy removal and insertion of press fit control arm ball joints
Suitable for use on BMW 3 series (E36) models
1. Press Frame Assembly
2. Removal Shell
3. Installation Shell
4. Drive Screw with Thrust Bearing
5. Spindle Support
6. Support
7. Removal Bush
8. Installation Bush
WARNING
Before starting work under a car always ensure that it is adequately supported by axle stands or
ramps.
Chock wheels and ensure that the hand brake is firmly applied.
Always work in a well ventilated area.
Always use approved eye protection especially when working under vehicles.
Ensure that tools are correctly mounted.
Always use workshop manual for detailed instructions.
Do not over tighten or use undue force as this can cause damage to both tool and component.
Always lubricate screw thread.
Do not use an impact wrench with this tool
SW-Stahl und Werkzeugvertriebs GmbH
L
e
v
e
k r
u
s
r e
t S
a r
s
s
e
6
5
D
4 -
2
8
9
7
R
e
m
s
c
h
e
d i
Tel. +49 (0) 2191 / 46438-0
F
ax +49 (0) 2191 / 46438-40
- E
M
a
: l i
n i
o f
@
s
w
s
a t
l h
d .
e
Art. 8482
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BGS technic 8482
Summary of Contents for BGS technic 8482
- Page 1 Art. 8482 Ball Joint Tool for BMW 3 Series A professional quality tool designed for easy removal and insertion of press fit control arm ball joints Suitable for use on BMW 3 series (E36) models 1. Press Frame Assembly 2. Removal Shell 3.
- Page 2 Extraction Insertion A = Bush 1. Securely support the vehicle and follow workshop manual instructions to access the ball joint. Mark the position of the ball joint to ensure the new ball joint is correctly installed. 2. Ensure that the screw threads (4) are clean, in good condition and freely lubricated each time before use.
