SOMFY DecoFlex WireFree Surface 1871025 Instructions

DecoFlex WireFree™ Surface 5 Channel Instructions
Item #:1871025 (White)
PRODUCT OVERVIEW
The DecoFlex WireFree Surface keypad provides homeowners with a simple and elegant way to control their Somfy-powered
1.13"
[29mm]
RTS shades. With a surface-mount capability and IP54 rating, it is ideal for interior and exterior applications.
CONTROL OPERATION
Status LEDs
Press to select the channel(s)
that you intend to control.
CHANNEL 1
Stop
CHANNEL 2
When the shades are moving, press to
stop them at the desired level. When
CHANNEL 3
shades are stationary, press once to
CHANNEL 4
3.15"
bring the shades to the favorite position.
[80mm]
CHANNEL 5
STOP
Raise/Lower
Press to raise/lower shades
to desired levels.
IMPORTANT NOTES
Codes: Install in accordance with all local and National Electrical Codes.
Environment: Ambient operating temperature: 4° F to 131° F (-20° C to 55° C), 0 to 90% humidity, non-condensing, IP54 rating.
Mounting: For optimal performance, DO NOT mount the control to a metal surface.
Battery: DO NOT use rechargeable batteries. Using improper batteries could damage the DecoFlex Surface keypad.
Cleaning: To clean, wipe with a clean damp cloth. Do not use any chemical cleaning solutions.
Decoflex Surface RTS

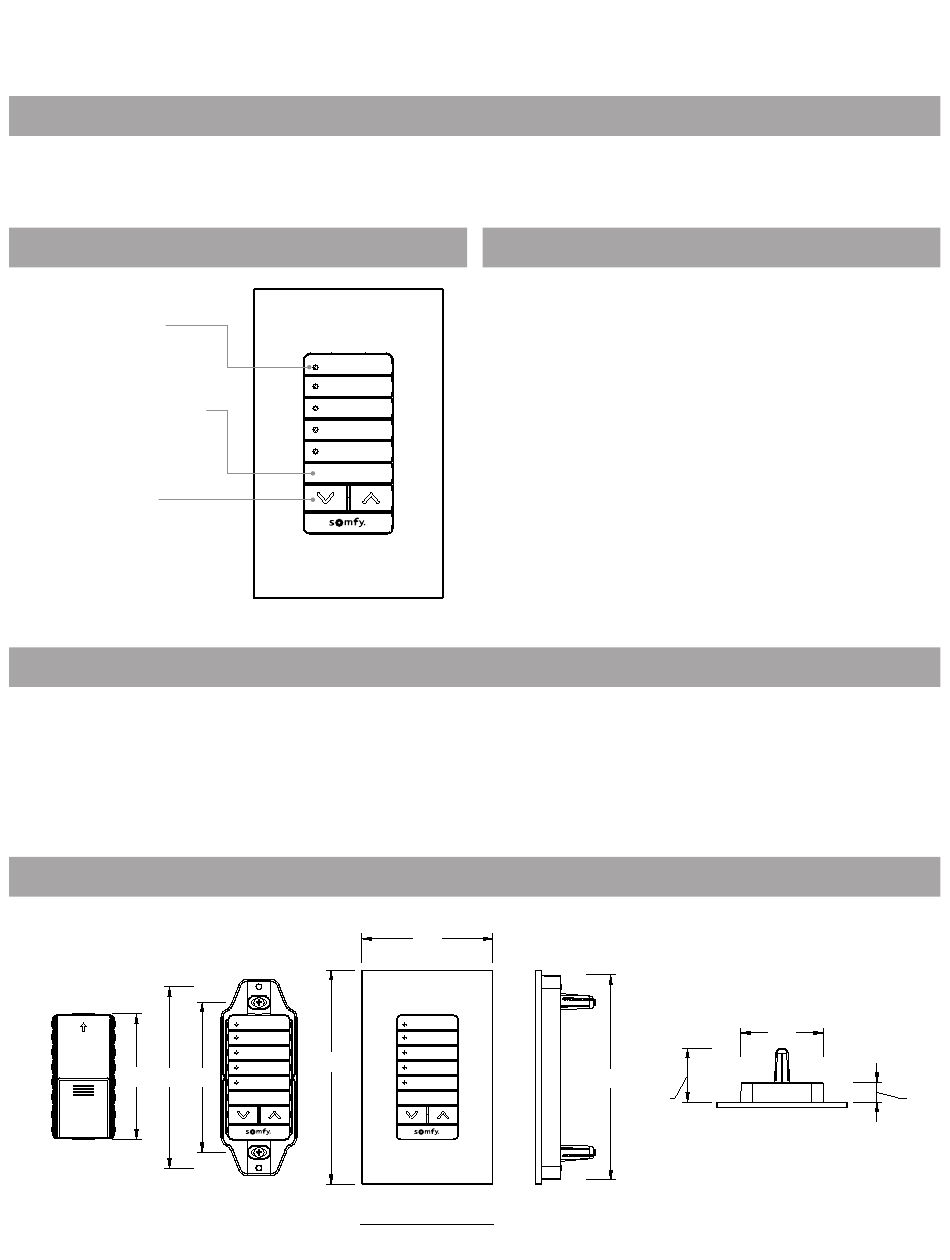

DIMENSIONS
Part Number
1871025 - White
Not available in other colors
2.64"
3.81"
[67mm] [97mm]
Tel: 1-800-64-SOMFY
Fax: 1-609-495-8165
1.73"
[44mm]
2.75"
[70mm]
CHANNEL 1
CHANNEL 2
CHANNEL 3
4.50"
[114mm]
CHANNEL 4
CHANNEL 5
STOP
Somfy Flush-Mount Faceplate
(Faceplate included)
Date:
09/27/22
Print Size:
8.5" x 11"
Scale:
NTS
Sales:
N/A
Drawn by:
TS
Checked by:
N/A
1.13"
[29mm]
CHANNEL 1
CHANNEL 2
CHANNEL 3
4.50"
[114mm]
CHANNEL 4
3.15"
[80mm]
CHANNEL 5
STOP
Somfy Flush-Mount Faceplate
.41"
[10mm]
WHAT'S IN THE BOX
• DecoFlex WireFree™ Surface 5 Channel
• Instructions
• CR2430 battery (x1)
• Keypad assembly
• Mounting frame
• Mounting screws (x2)
• Screw anchors (x2)
