Field Test Guide
BEFORE UNBOXING
Call the EXO Project Coordinator at +1-825-258-5059

Advertisement

loading
Need help?

Need help?

Do you have a question about the G7 EXO and is the answer not in the manual?

Questions and answers

Related Manuals for BlacklineSafety G7 EXO

Summary of Contents for BlacklineSafety G7 EXO

  • Page 1 Field Test Guide BEFORE UNBOXING Call the EXO Project Coordinator at +1-825-258-5059...
  • Page 3 TEST PROGRAM OVERVIEW Overview Thank you for participating in the G7 EXO testing program. Your testing period with EXO will last eight business days and is mostly self-managed. The Project Coordinator will contact you at the beginning, halfway through, and at the end of your testing period to conduct surveys and answer questions.

  • Page 4: Testing Instructions

    TESTING INSTRUCTIONS Test cases To help you get the most from this experience, we’ve created a series of cases for you to work through and test. This Field Test Guide will take an hour to complete and should be done within the first four days of your testing period. Notes Please take your time to go through the steps of each case and record your feedback —...

  • Page 5: Test Cases

    TEST CASES 01. UNBOXING AND HARDWARE .................................... 02. TRANSPORT EXO .................................... 03. POWER ON AND OFF .................................... 04. INTERACTING WITH EXO .................................... 05. GAS READINGS .................................... 06. BUMP TEST .................................... 07. CALIBRATION .................................... 08. SOS LATCH .................................... 09. MESSAGES AND TWO-WAY CALLS ....................................
  • Page 6 Hex key #2.5 (to access gas cartridge) ƒ Bump test and calibration tubing ƒ Battery charger ƒ Return shipping sticker ƒ Please keep all of the original packaging. NOTE: Use the following images to familiarize yourself with EXO. 04 || G7 EXO TEST PROGRAM...

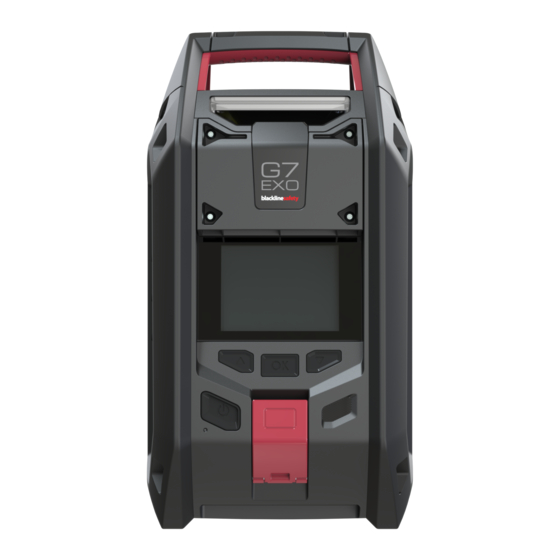

  • Page 7 Cartridge cover 360° air diffusion vents LCD screen Connectivity light LiveResponse light OK button Up button Down button SOS Latch pull Power button Speaker Microphone BACK Top light 360° air diffusion vent Battery pack G7 EXO TEST PROGRAM || 05...
  • Page 8 RIGHT SIDE - ELECTRICAL PORTS Top light 360° air diffusion vent A/B interface ports Power port LEFT SIDE - GAS INLETS Top light 360° air diffusion vent Bump test/calibration inlet 06 || G7 EXO TEST PROGRAM...
  • Page 9 BOTTOM Mount Notes G7 EXO TEST PROGRAM || 07...
  • Page 10 Take EXO to a safe environment with a clean atmosphere Ensure the battery pack and the calibration cover are securely attached to EXO In the original shipping box place: • G7 EXO in original bag with its front facing up • Battery charger in original box or packaging •...
  • Page 11 Notes G7 EXO TEST PROGRAM || 09...

  • Page 12: Power On And Off

    Once all the lights and sounds have stopped, EXO will be powered off and disconnected from the Blackline Safety Network If you see a O2 stabilizing message on G7 EXO’s screen, wait 20 minutes for the O2 sensor to stabilize. EXO will continue to monitor during this process. An SOS latch pull or dangerous gas levels will override this screen.
  • Page 13 Notes G7 EXO TEST PROGRAM || 11...
  • Page 14 TEST CASE 04 INTERACT WITH EXO BUTTONS Be sure EXO is stable when pressing buttons. G7 EXO works similarly to a G7 safety wearable device. OK button Up and down buttons SOS latch pull Press the OK button to Use the up and down...
  • Page 15 If you intentionally trigger a red alert as part of this testing program, read the information on your EXO screen. Press and hold the up and down buttons at the same time to acknowledge and mute the alert. Notes G7 EXO TEST PROGRAM || 13...

  • Page 16: Gas Readings

    TEST CASE 05 GAS READINGS The main screen is the gas status screen. G7 EXO will be preinstalled with a standard quad gas cartridge (H2S, LEL, CO, O2). The four gas readings will be displayed. The banner is where you will...
  • Page 17 Notes G7 EXO TEST PROGRAM || 15...
  • Page 18 Remove the tubing from the calibration inlet and let your EXO sit until the gas readings stabilize (this may take a few minutes) If you see a bump test fail message on G7 EXO’s screen, Let EXO sit until its gas readings stabilize ƒ...
  • Page 19 Notes G7 EXO TEST PROGRAM || 17...
  • Page 20 Remove the tubing from the calibration inlet and let your EXO sit until the gas readings stabilize If you see a calibration fail message on G7 EXO’s screen, Let EXO sit until its gas readings stabilize ƒ...
  • Page 21 Notes G7 EXO TEST PROGRAM || 19...
  • Page 22 SOS latch. This will notify monitoring personnel and they will respond either by sending a message or initiating a two-way voice call. During this field test G7 EXO will not be monitored. In order to test this feature the Project Manager will temporarily act as your monitoring personnel.
  • Page 23 Notes G7 EXO TEST PROGRAM || 21...
  • Page 24 Project Coordinator. They need to be a part of this test case. G7 EXO supports text messages and two-way calls with monitoring personnel. During this field test EXO will not be monitored. In order to test these features the Project Coordinator will temporarily act as your monitoring personnel.
  • Page 25 When the Project Coordinator ends the call, EXO will chirp indicating the call has been disconnected EXO’s blue LiveResponse light will turn off once the project coordinator resolves the red alert on the Blackline Safety Network Notes G7 EXO TEST PROGRAM || 23...

  • Page 26: Charge Battery Pack

    TEST CASE 10 CHARGE BATTERY PACK Completely charge G7 EXO’s battery pack at least once during your testing period. SAFETY WARNING Do NOT wear rings, bracelets, watches, or other hand jewelry while handling EXO’s battery pack. To remove battery pack,...
  • Page 27 Notes G7 EXO TEST PROGRAM || 25...
  • Page 28 While pushing down on the cartridge cap, push the cartridge into the cartridge slot Replace cartridge cover Replace and tighten screws The screws should be snug, but not over-tight. NOTE: Step 2 Step 4 Step 6 26 || G7 EXO TEST PROGRAM...
  • Page 29 Notes G7 EXO TEST PROGRAM || 27...
  • Page 30 All of us in the Blackline Safety Hardware, Firmware, Software, Quality Assurance and Integration, Product and Project Management, and User Experience teams wish to thank you for participating in The G7 EXO Field Test Program. We couldn’t do this without your help.
