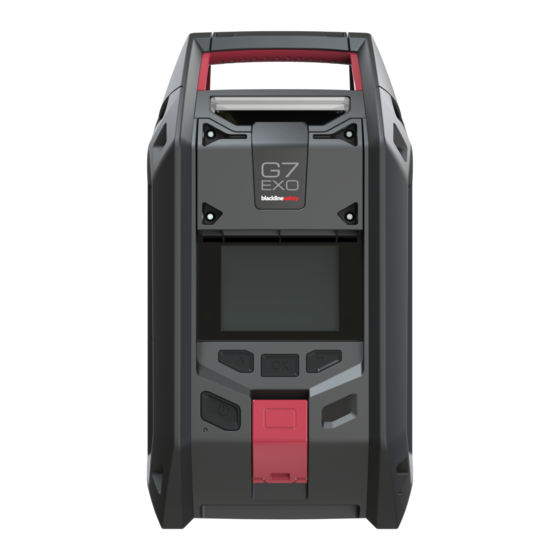

- Page 1 G7 EXO Universal Mount and Accessories Guide WE’VE GOT YOUR BACK.
-
Page 3: Table Of Contents
CONTENTS G7 EXO UNIVERSAL MOUNT ..........................4 OTHER MOUNTING OPTIONS AVAILABLE .....................5 ELEVATED MOUNTING INSTRUCTIONS ......................6 Universal Mount ................................7 Converting the Universal Mount to L-Shape ..................8 Mounting to a Wall ..............................9 Mounting to a Vertical or Horizontal Support ..................9 Universal Mount and Accessories in Elevated Mount Configuration (Front View) ..11... -
Page 4: G7 Exo Universal Mount
G7 EXO UNIVERSAL MOUNT The Universal Mount Kit is our most versatile option to mount G7 EXO. It can be converted to provide support in several configurations: on the ground, attached to an elevated support structure or to a wall. -
Page 5: Other Mounting Options Available
If no accessories are required, other mounting options include: the EXO Base (Standoff ) for speed of ground deployment, a Survey Tripod for greater visibility and a Hanging Mount for fast elevated deployment. EXO Base (Standoff) Survey Tripod ACC-G7EXO-STANDOFF ACC-G7EXO-TRIPOD Hanging Mount ACC-G7EXO-HMK (Horizontal and Vertical Support) blacklinesafety.com... -
Page 6: Elevated Mounting Instructions
ELEVATED MOUNTING INSTRUCTIONS NOTE: The Universal Mount must be converted to an L-Shape configuration before mounting it to a horizontal support, vertical support or to a wall. For additional safety, use the Safety Tether for all elevated mounting. Safety Tether Universal Mount (L-Shape) -
Page 7: Universal Mount
Converting the Universal Mount to L-shape in this guide. Ground Mounting: Install the Universal Mount onto the EXO Base (Standoff ). Refer to Ground Mounting Instructions in this guide. Included In Box Universal U-bolts (3) Washers (3 sizes) Teeth (3 sizes) Safety Tether Ground Mounting Elevated Mounting blacklinesafety.com... -
Page 8: Converting The Universal Mount To L-Shape
CONVERTING THE UNIVERSAL MOUNT TO L-SHAPE Screws Remove the mount from the box. Remove the two hex M5 screws on both sides of the mount. Screws Swivel the bottom mount and align the triangles to create an L-Shape configuration and reveal the new screw holes. -
Page 9: Mounting To A Wall
Three sizes of U-bolts are included in the kit. Refer to the following Vertical and Horizontal Support diagrams to determine which U-bolts are required for the size and orientation of your support. Once secure on an elevated support, the mount is ready to add accessories. Medium U-bolts blacklinesafety.com... - Page 10 Large U-bolts Small U-bolts 10 |...
-
Page 11: Universal Mount And Accessories In Elevated Mount Configuration (Front View)
UNIVERSAL MOUNT AND ACCESSORIES IN ELEVATED MOUNT CONFIGURATION (FRONT VIEW) Solar Panel/Mount Safety Tether Siren/Horn Gas Tank Mount Mast Mount Universal Mount (L-Shape) blacklinesafety.com... -
Page 12: Universal Mount And Accessories In Elevated Mount Configuration (Back View)
UNIVERSAL MOUNT AND ACCESSORIES IN ELEVATED MOUNT CONFIGURATION (BACK VIEW) Solar Panel/Mount Safety Tether Siren/Horn Mast Mount Gas Tank Mount Universal Mount (L-Shape) 12 |... -
Page 13: Ground Mounting Instructions
GROUND MOUNTING INSTRUCTIONS NOTE: EXO Base (Standoff ) is required for ground mounting and adding accessories. Universal Mount EXO Base (Standoff ) blacklinesafety.com... -
Page 14: Exo Base (Standoff)
EXO BASE (STANDOFF) SKU: SKU: ACC-G7EXO-STANDOFF ACC-G7EXO-STANDOFF EXO can be installed on EXO Base (Standoff ) for a stand-alone quick ground deployment. If NOTE: adding accessories, the Universal Mount is required. Universal Mount sold separately. Ground mount only Place EXO Base (Standoff ) on a secure surface. Lower EXO onto the top of the EXO Base (Standoff ), turn the base’s screw knob counter clockwise to secure. -
Page 15: Exo Base (Standoff) Flag
EXO BASE (STANDOFF) FLAG SKU: ACC-STANDOFF-FLAG EXO Base (Standoff ) is required to attach the flag. Remove the bolt and thread the bottom of flagpole into the designated EXO Base (Standoff ) hole. NOTE: EXO Base (Standoff ) sold separately. blacklinesafety.com... -
Page 16: Universal Mount And Accessories In Ground Mount Configuration (Front View)
UNIVERSAL MOUNT AND ACCESSORIES IN GROUND MOUNT CONFIGURATION (FRONT VIEW) Safety Flag Solar Panel/Mount Siren/Horn Gas Tank Mount Mast Mount Universal Mount EXO Base (Standoff) 16 |... -
Page 17: Universal Mount And Accessories In Ground Mount Configuration (Back View)
UNIVERSAL MOUNT AND ACCESSORIES IN GROUND MOUNT CONFIGURATION (BACK VIEW) Safety Flag Solar Panel/Mount Siren/Horn Mast Mount Gas Tank Mount Universal Mount EXO Base (Standoff) blacklinesafety.com... -
Page 18: Mast Mount Kit
MAST MOUNT KIT SKU: ACC-G7EXO-UMK-MAST Mast Universal Mount (Elevated Configuration) Universal Mount (Ground Configuration) Mast Mount Follow these instructions for both ground and elevated mounting. Hook the Mast Mount onto the Universal Mount and secure with two hex screws. Slide one of the Mast Tubes into the Mast Mount’s opening until the lock pin clicks. Slide the second Mast Tube into the first one until the lock pin clicks. -
Page 19: Siren (Metal)
Loosen the nuts on the back of the Siren Mount and slide the Mast Tube through the U-bolts to the desired position. Tighten the nuts on the back until secure. Connect the cable to the bottom of the siren and one of EXO’s Interface ports. blacklinesafety.com... -
Page 20: Solar Panel Mounting Kit (All-In-One)
SOLAR PANEL MOUNTING KIT (ALL-IN-ONE) SKU: ACC-G7EXO-UMK-SOLAR-MOUNT-KIT Screws Bracket Solar Panel Frame Plate/Lip Power Pack Install the Mast Kit (refer to Mast Kit instructions in this guide). Place the solar panel face down on a flat surface. Loosen the four screws on the Solar Panel Bracket to create a gap between the Bracket and Plate/Lip. - Page 21 Connect the Solar Panel cable to EXO’s power port. Included In Box Available Individually Solar Panel (Only) SKU: ACC-G7EXO-SOLAR Solar Panel Mount (Only) SKU: ACC-G7EXO-UMK-SOLAR MOUNT Mast Kit Solar Panel Solar Panel Mast Tube Mast Mount M5 0.8 mm Mount Screw SKU: ACC-G7EXO-UMK-MAST blacklinesafety.com...
-
Page 22: Gas Tank Mount Kit
GAS TANK MOUNT KIT SKU: ACC-G7EXO-UMK-GAS Universal Mount (Elevated Configuration) Rubber Strap Thumb Screw Universal Mount (Ground Configuration) Follow these instructions for both ground and elevated mounting. Use the appropriate hook as shown in the diagram to attach the Gas Tank Mount to the side of the Universal Mount. -
Page 23: Mounting Safety Tether
The tether can also be used on a ground mount or elevated mount as a lock to ensure EXO is not moved or stolen. WARNING: Do not hang EXO from Mounting Safety Tether. Attach to separate support Loop twice blacklinesafety.com... -
Page 24: Learn More
LEARN MORE Visit support.blacklinesafety.com to download the G7 EXO technical user manual with descriptions of how to use and configure your device and for detailed specifications. North America (24 hours) Toll-free: 1-877-869-7212 support@blacklinesafety.com Europe Phone: +44 1787 222684 eusupport@blacklinesafety.com International Phone: +1-403-451-0327 support@blacklinesafety.com... - Page 25 blacklinesafety.com...
- Page 26 26 |...
- Page 27 R1/2021-11-05...
- Page 28 Wherever there’s a need for safety We’re there www.blacklinesafety.com...
