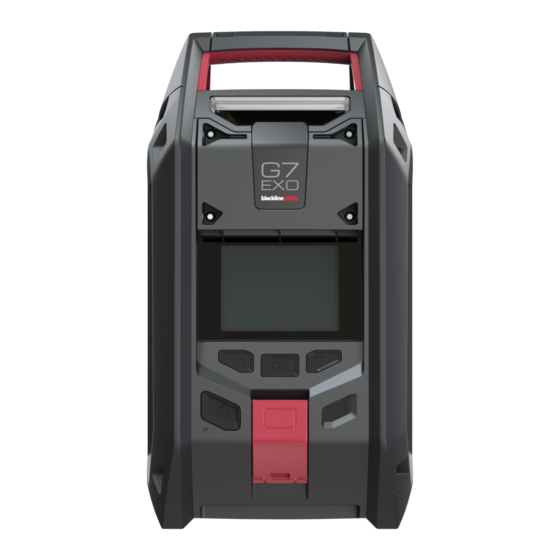

BlacklineSafety G7 EXO Quick Start Manual

Hide thumbs Also See for G7 EXO:
1
2
3
4
5
6
7

Advertisement

Table of Contents

G7 EXO
Diffusion to Pump Conversion

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G7 EXO and is the answer not in the manual?

Questions and answers

Related Manuals for BlacklineSafety G7 EXO

Summary of Contents for BlacklineSafety G7 EXO

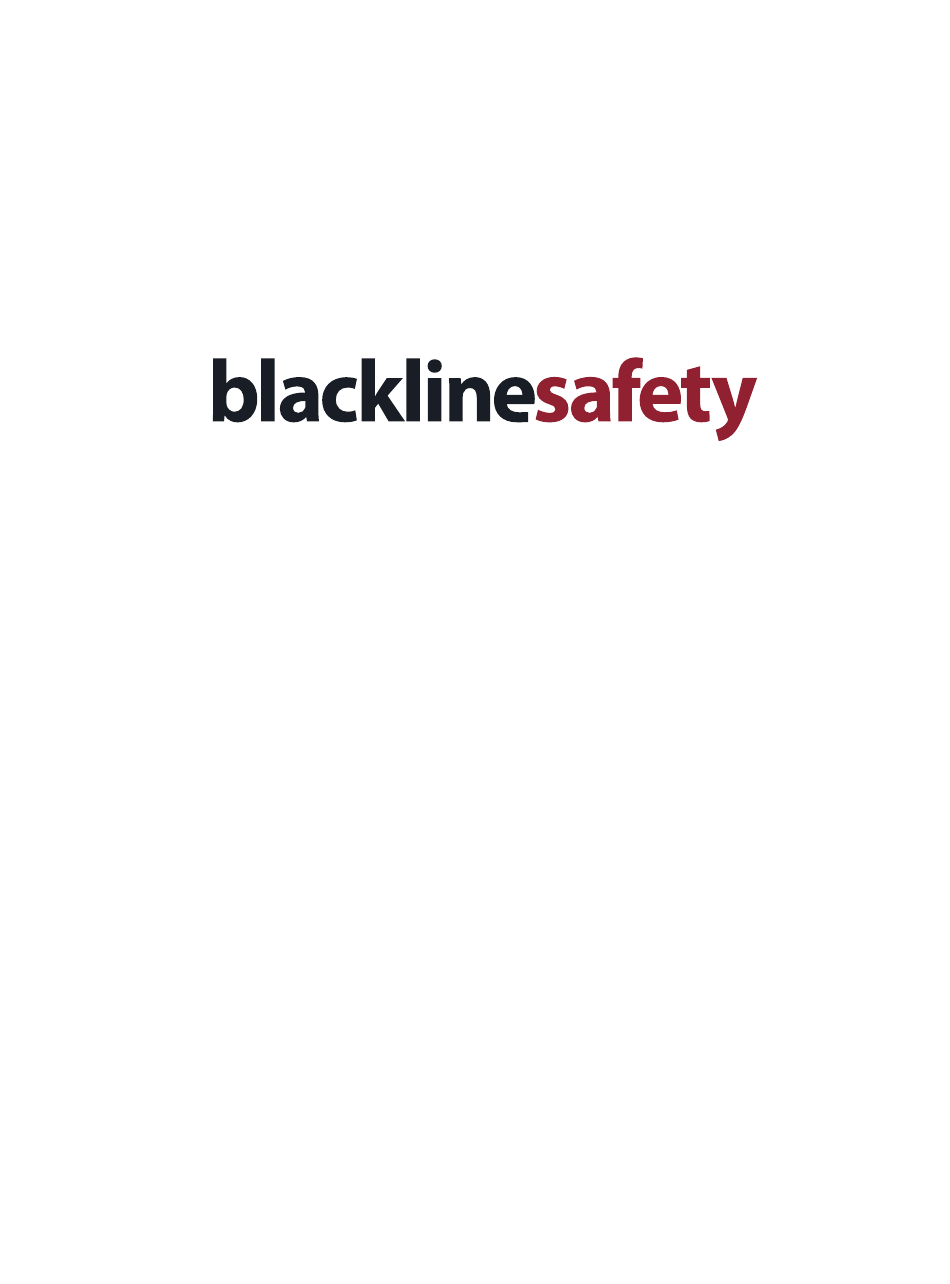

  • Page 1 G7 EXO Diffusion to Pump Conversion...
  • Page 2 G7 EXO Pump G7 EXO Diffusion G7 EXO’s Pump Module takes your area monitoring a step further. The optional four-channel pump system allows you to monitor up to four areas sequentially from up to 30 metres away in each direction.
  • Page 3 Stand EXO upright. Remove the screws and washers from each side of the Diffusion Chamber. Slide the chamber out from its slot and detach it from EXO’s inlet tubing. Once removed, store it with the Diffusion Cartridge Cover and Diffusion Module. blacklinesafety.com...
  • Page 4 INSTALLING PUMP COMPONENTS Attach the Pump Gas Chamber’s coupling to EXO’s inlet tubing. Carefully push the inlet tubing back into EXO’s interior. Slide the Pump Gas Chamber into its slot and secure the chamber using the two washers and screws. Check the tubing and attach the Pump Module: Place EXO back on its side with the module opening facing up.
  • Page 5 Insert and twist the coupling to connect the Dock Filter to one of the four EXO inlets. Using the up, down and OK buttons to navigate, select Main Menu > Gas options > Inlet settings. Enable the connected inlet by selecting ON. EXO now has pump functionality. blacklinesafety.com...
  • Page 6 LEARN MORE Visit support.blacklinesafety.com to download the G7 EXO Technical User Manual with descriptions of how to use and configure your device and for detailed specifications. North America (24 hours) Toll-free: 1-877-869-7212 support@blacklinesafety.com Europe Phone: +44 1787 222684 eusupport@blacklinesafety.com International Phone: +1-403-451-0327 support@blacklinesafety.com...
  • Page 7 103995/R1/2021-12-22...
