Instant Pot Ip Lux Series Manual

Pictures in manual are for reference only. Please refer to actual product.

Important Safeguards

SAVE THESE INSTRUCTIONS

When using pressure cookers, basic safety precautions should always be followed.

1. Do not touch hot surfaces of pressure cooker. Use side handles for carrying.
2. Do not place the cooker on or near a hot gas or electric burner, or in a heated oven.
3. Intended for countertop use only.
4. Do not use pressure cooker for anything other than intended use.
5. Never deep fry or pressure fry in the cooker with oil.
6. Do not let cord hang over edge of table or counter, or touch hot surfaces.
7. Do not use cooker in electrical systems other than 110-120V~/60Hz for North America.
8. Do not operate cooker with damaged cord or plug, or after the cooker malfunctions or has been damaged in any manner.
9. Do not open the cooker until the cooker has cooled and all internal pressure has been released. If the float valve is still up or the lid is difficult to turn, it is an indication that the cooker is still pressurized - do not force it open. Please see "Getting Started".
10. For all pressure cooking programs, the total amount of pre-cooked food and liquid in the inner pot should not pass the 2/3 line. When cooking food that expands during cooking such as rice, beans or vegetables, food should not pass the 1/2 line. Overfilling may risk clogging the steam release valve resulting in excess pressure. This may also cause leakage, personal injuries, or damage to the cooker. These fill level warnings do not apply to non-pressure cooking programs.
    Please read this manual carefully and retain for future reference.
11. Make sure the steam release handle is in the Sealing position for all the pressure cooking programs.
12. This appliance should not be used by children; by individuals whose physical, sensory or mental abilities prevent safe use of the appliance; or by individuals with limited knowledge of how to use a pressure cooker. Close supervision is needed when using this appliance near these individuals.
13. Do not immerse the cooker base in water. To protect against electrical shock, do not immerse the cord, power plug, or cooker in any liquid.
14. Always attach plug to the cooker first, then plug cord into the wall outlet. To disconnect, press Keep Warm/Cancel, then remove plug from the wall outlet. Unplug from power outlet when not in use and before cleaning. Allow the cooker to cool before putting on or taking off parts, and before cleaning.
15. For Household use only. Not intended for outdoor use.
16. Extreme caution must be used when moving a pressure cooker containing hot liquids.
17. This appliance cooks under pressure. Improper use may result in scalding injuries. Make certain the lid is properly closed before operating.

    To reduce the risk of electric shock, cook only in removable containers. See "Getting Started".
18. Use of accessories and parts that are not branded Instant Pot^® or recommended by the Instant Pot^® Company may cause the cooker to malfunction. Cook only in Instant Pot^® stainless steel or ceramic non-stick inner pots for best results. Other brands may not have the correct curvature to match the heating element.
19. Be aware that certain foods, such as applesauce, cranberries, pearl barley, oatmeal and other cereals, split peas, noodles, macaroni, rhubarb, and spaghetti can foam, froth, sputter, and clog the steam release valve. These foods should not be cooked under pressure cooking settings unless as directed in Instant Pot^® recipes.
20. Always check the steam release valve, float valve and anti-block shield for clogging before use.
21. Always make sure the sealing ring rack is completely set in the groove on the inside of the sealing ring.

When in operation or releasing pressure DO NOT place unprotected skin over the steam release valve.

Do not move cooker when it is in operation.

Do not force lid open when the float valve is UP. Make sure the float valve is DOWN when you open the lid.

Spilled food can cause serious burns. Keep appliance and cord away from children. Never drape cord over edge of counter, never use power outlet below counter, and never use with an extension cord.

Special Cord Set Instructions

As per UL safety requirement, a short power supply cord (0.6 m to 0.9 m) is provided to reduce the hazards resulting from entanglement and tripping.

To reduce the risk of electric shock, plug the power cord into a grounded (earthed) electrical outlet that is easily accessible.

Specifications

Overview

Anti-block shield

To install:
Position the anti-block shield in place and push down

To remove:
Using your thumb, push the side of the anti-block shield towards the lid rim and lift up with some effort. The anti-block shield should pop out

Control and Features

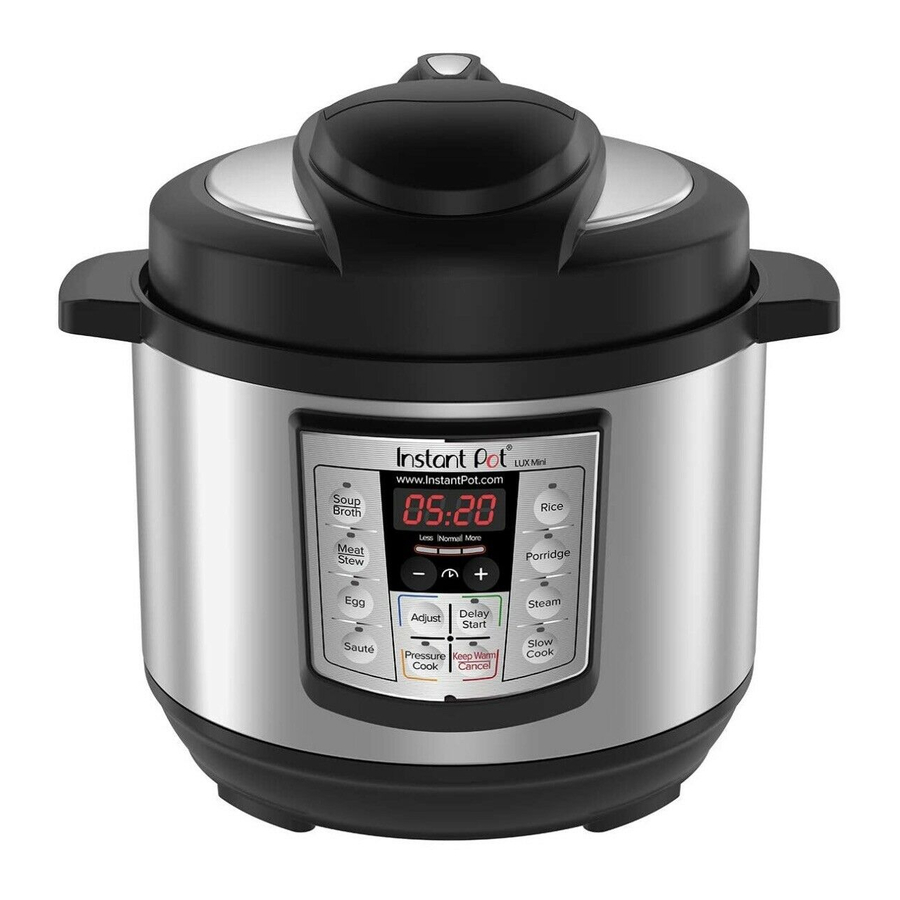

Control Panel for the Lux Series

The control panel of your Instant Pot^® Lux Mini/50/60/80 consists of a large LED display, cooking program keys, operations keys, + / - keys to adjust time and a Keep Warm/Cancel key.

Note that the Lux Mini does not have Cake and Multigrain programs. The Pressure Cook program on Lux Mini is the same as the Manual program on other Lux models.

Instant Pot^® is a programmed smart cooker that has preset cooking times for different food ingredients and cooking methods. It also remembers your most recent setting per cooking program for a more personalized cooking experience.
To return to factory default settings, press Keep Warm/Cancel to return cooker to standby mode displaying OFF, then press and hold the Adjust key for 3 seconds.

Sound ON/OFF
Press and hold the - key for 3 seconds to turn sound OFF. Press and hold the + key for 3 secounds to turn sound ON

The Adjust key switches cooking modes between Less, Normal and More. Return to factory default setting by pressing and holding the Adjust key for 3 seconds when the cooker is in standby mode.

The Delay Start key sets the delayed time before a cooking program starts

The Keep Warm/Cancel key ends a cooking program at any time. Once a cooking program is selected, the Auto Keep Warm function is ON by default but it can be turned OFF by pressing the same cooking program key again. The function light indicator will turn OFF.

Cooking Program Options

Programs	Modes	Suggested Uses	Notes for Users
Soup/Broth	Less	Soup without meat.	The soup/broth remains clear due to lack of boiling motion under pressure cooking.
	Normal	Soup with meat.
	More	Rich bone broth.
Meat/Stew	Less	Soft texture.	Choose different modes based on the meat texture desired.
	Normal	Very soft texture.
	More	Fall-off-the bone meat texture.
Cake1	Less	Lighter moist cakes.	Adjust cooking time for different recipes.
	Normal	Denser moist cakes.
	More	New York style cheesecakes.
Egg	Less	Soft boiled eggs.	Pre-set times are intended for extra large eggs. Adjust cooking time to account for different egg sizes.
	Normal	Medium boiled eggs.
	More	Hard boiled eggs.
Sauté (Brown)	Less	Simmering, thickening and reducing liquids.	NEVER have the lid on when sautéing. Maximum time is 30 minutes as a safety precaution.
	Normal	Stir-frying.
	More	Pan searing or browning meat.
Slow Cook	Less	Corresponds to Low setting in some temperature controlled slow cookers.	Non-pressure cooking program. You may also use the Instant Pot® glass lid as an option.
	Normal	Corresponds to MEDIUM setting in some temperature controlled slow cookers.
	More	Corresponds to HIGH setting in some temperature controlled slow cookers.
Rice	N/A	White rice of various types	Automated cooking program. The Adjust and +/- keys will not work in this program.
Multigrain1	Less	Wild rice, brown rice, mung beans, etc.	Choose different modes based on the type of grains and the desired texture.
	Normal	Wild rice, brown rice, mung beans, etc.
	More	Tough grains or a mixture of grains and beans.	Program includes 45 minutes of warm water soaking time prior to 60 minutes of pressure cooking.
Porridge	Less	Oatmeal.	DO NOT use Quick Release as thick liquid will spatter out and block the pressure release valve.
	Normal	White rice porridge/congee.
	More	Rice porridge/congee with various rices and beans.
Steam	Less	Vegetables.	Use the steam rack provided to elevate food above the water. Use Quick Release method to prevent food from overcooking.
	Normal	Fish and Seafood.
	More	Meat.
Manual2	N/A	Manual programming of cooking time according to your favourite recipes or cooking habits.	Press the + / - keys to change cooking time. The Adjust key will not work in this program.

¹Cake and Multigrain cooking programs are not available on Lux Mini.
²The Manual program is the same as the Pressure Cook program on Lux Mini.

Pressure Cooking Programs:
Working Pressure: 10.2psi (70 kPa)
Pressure Release Pressure Limit: 15.22psi (105kPa)
Working Temperature: 113°C - 118°C (235°F ~ 244°F)

Non-Pressure Cooking Programs:
Keep Warm function: 63 - 78°C (145 ~ 172°F);
Slow Cook function: Less mode: 82-87.8°C / 180-190°F; Normal mode: 87.8-93°C / 190-200°F; More mode: 93-99°C / 200-210°F;
Sauté function: Less mode: ~105°C (~221°F); Normal mode: ~169°C (~336°F); More mode: ~174°C (~345°F)

Getting Started

1. Read warning cards and warning labels. Remove all packaging materials and removable warning cards from the cooker and accessories.
2. Clean the inner pot, lid and accessories with water and detergent before the first use.
3. Install the condensation collector (where applicable: only on Lux Mini and Lux80) at the rear of the cooker by aligning the top of the collector with the guides on the cooker and press in.


4. Place the steam release handle on the lid.


The steam release handle does not lock tight into the lid but will fit loosely.

Before using your Instant Pot^®:

1. To remove the lid, hold the handle, turn the lid counterclockwise and lift.


2. Remove the inner pot from the cooker.
3. Add food and liquids to the inner pot as the recipe directs. If steaming, place the steam rack on the bottom of the inner pot first. Always add at least 18 fl oz / 500 mL of liquid for minimum liquid requirement. See "Cooking and Safety Tips".
4. Wipe the outside of the inner pot dry. Make sure there is no food debris on the heating element.
5. Put the inner pot back into the cooker. Rotate slightly to ensure that it is seated correctly.
6. Make sure the sealing ring rack is completely set in the groove on the inside of the sealing ring. Ensure there is no deformation on the sealing ring rack. Do not attempt to repair a deformed ring rack.
7. To place lid, reverse Step 1. Place the lid on the cooker, align the mark on the lid with the OPEN mark and turn clockwise to the CLOSE mark.

• Make sure the steam release valve, float valve and anti-block shield are clean and free of debris.
• After putting the lid on, make sure the float valve on top of the lid drops down.
• Do not put the lid on for the Sauté program.


Initial Test Run

To familiarize yourself with the Instant Pot^® and check if the cooker is working properly:

1. Add 3 measuring cups of water into the inner pot (about 25 fl oz / 750 mL).
2. Close the lid. Turn the steam release handle to Sealing position.
3. Press the Steam button and press the + / - keys to adjust time to 2 minutes.

The preheating cycle will start after 10 seconds and the cooker will display On. Traces of steam may release until the float valve pops up. The Steam program will begin after a few minutes when working pressure is reached. The cooker will beep and automatically switch to Keep Warm mode if the Auto Keep Warm function is ON.

*If anything seems to go wrong or if in doubt, refer to the troubleshooting guide or call the customer care team.

Pressure Cooking

The following are pressure cooking programs: Soup/Broth, Meat/Stew, Cake¹, Egg, Rice, Multigrain¹, Porridge, Steam or Manual².

• Do not fill the inner pot more than 2/3 full when pressure cooking. For food that expands during cooking such as rice or dried vegetables, do not fill the inner pot more than 1/2 full.
• After the cooking process has started, you can press Keep Warm/Cancel at any time to end the program. The cooker then goes to standby mode.

1. Follow the steps in "Getting Started".
2. Position the steam release handle to Sealing.


3. Connect the power cord. The LED displays OFF, indicating that the cooker is in standby mode.


4. Select a pressure cooking program: Soup/Broth, Meat/Stew, Cake¹, Egg, Rice, Multigrain¹, Porridge, Steam or Manual².
   ¹Cake and Multigrain cooking programs are not available on LUX Mini.
   ²The Manual program is the same as the Pressure Cook program on LUX Mini.
5. Optionally, personalize pressure cooking programs as follows:

   To do this....	Press this button	Followed by these steps...
   Change the cooking time	Adjust	Select between three preset cooking times, Normal, Less and More by pressing the Adjust button repeatedly.
   	+ / -	Add/subtract time; press and hold for faster changes
   Set the delayed cooking time	Delay Start	Use the + / - buttons to set the hours Press Delay Start again Use the + / - buttons to set the minutes

6. 10 seconds after choosing the settings, the cooker beeps 3 times and displays On to indicate that the cooker has entered preheating cycle. If using Delay Start, the Delay Start light indicator will light up and 10 seconds after selecting this program, the delayed cooking time count down will begin. When count down is finished, the cooker will display On for the preheating cycle. Depending on the amount of food and its temperature, the preheating cycle can last from a few minutes to 40 minutes or more. As the cooker heats up and pressure builds, the float valve rises. When working pressure is reached, the cooker enters the pressure cooking cycle and displays the remaining cooking time.
   When the cooking cycle has finished, the cooker beeps and enters the Keep Warm mode if the Auto Keep Warm function is turned ON. The LED displays the elapsed time (such as L0:02). If Keep Warm/Cancel is not pressed, the cooker will turn OFF after 10 hours.
7. Release the pressure using one of the following methods (refer to recipe):
   Natural Release: Allow the cooker to cool down by itself until the float valve drops down. This may take 10 to 40 minutes, or even more, depending on the amount of food in the cooker. Place a wet towel on the metal part of the lid to speed up cooling (do not cover the steam release valve).
   Quick Release: Turn the steam release handle to the Venting position to let steam out until the float valve drops down. Never pull out the steam release handle while releasing steam as escaping steam is extremely hot and can cause scalding. For food with large liquid volume or starch content, use the Natural Release method as thick liquid may splatter.

   Do not place hand over steam release valve

   Do not lean face over cooker when it is in operation or releasing steam/pressure
8. Press Keep Warm/Cancel. The LED displays OFF, indicating that the cooker is in standby mode. Open the lid. Make sure the float valve is down before opening the lid.

Non-Pressure Cooking

The following are non-pressure cooking programs: Sauté, Slow Cook, and Keep Warm.

Sauté

1. Connect the power cord. The LED displays OFF, indicating that the cooker is on standby.
2. Select the Sauté program.
3. To change the cooking temperature, press Adjust repeatedly to select between Less (for simmering or thickening sauce), Normal (for stir-frying), and More (for pan searing or browning meat).
   10 seconds after choosing the settings, the cooking process will start. The cooker beeps 3 times and the LED displays On to indicate that the cooker has entered the preheating cycle. When the working temperature is reached, the LED displays Hot.


4. Add food to the inner pot and sauté.
5. When you have finished sautéing the food, press Keep Warm/Cancel. The LED displays OFF, indicating that the cooker is in standby mode.

   • Do not put the pressure cooker lid on when using the Sauté program. There will be warning alerts and the display will flash. A glass lid with a venting hole may be used.
   • As a safety precaution, the cooker automatically enters standby mode after 30 minutes if you have not pressed Keep Warm/Cancel.

Slow Cook

1. You may use the Instant Pot^® glass lid as an option. If using the pressure cooking lid, make sure the steam release handle is turned to Venting.


2. Connect the power cord. The LED displays OFF, indicating that the cooker is on standby.
3. Select the Slow Cook program.
4. Optionally, modify the slow cooking program as follows:

   To do this....	Press this button	Followed by these steps...
   Change the cooking time	+ / -	Add / subtract time
   Change the cooking temperature	Adjust	Select between three preset cooking temperatures, Less, Normal and More by repeatedly pressing Adjust.
   Set the delayed cooking time	Delay Start	Use the + / - buttons to set the hours Press Delay Start again Use the + / - buttons to set the minutes

   10 seconds after choosing the settings, the cooking program will start. The cooker beeps 3 times and the cooker enters the cooking cycle. The LED displays the remaining cooking time. If using Delay Start, the Delay Start light indicator will light up and 10 seconds after selecting this program, the delayed cooking time count down will begin. When count down is finished, the cooking time begins.
5. When the cooking cycle has finished, the cooker beeps and enters the Keep Warm mode if the Auto Keep Warm program is turned ON. The LED displays the elapsed time (such as L0:02). If Keep Warm/Cancel is not pressed, the cooker will turn OFF after 10 hours.
6. If the lid is on, remove it by turning counter-clockwise and lifting.
7. Press Keep Warm/Cancel. The LED displays OFF, indicating that the cooker is in standby mode.

Cooking and Safety Tips

• Extreme caution should be taken when moving the steam release handle to the Venting position. Keep hands and face away from the steam release openings. Failure to comply may result in scalding or serious injury.
• Do not attempt to open the lid until pressure inside the cooker is completely released. As a safety feature, until the float valve drops down the lid is locked and cannot be opened. Do not force lid open.
• When opening the lid, the inner pot may adhere to the lid. This is caused by vacuum due to cooling. Make sure the steam release handle is in the Venting position and all the steam is released.
• If the float valve is stuck, move the steam release handle to the Venting position. Once all the steam is released, push the float valve down with a pen or long stick.
• Always add at least 18 fl oz / 500 ml of water or other liquids so enough steam can be generated to cook under pressure. These include cooking sauces, wine, beer, stocks, juices of fruits and vegetables. Oils, oil-based sauces and thick cooking sauces do not have enough water content and will not account for the required liquid volume.
• Time to pressure and cooking time will vary according to the temperature and quantity of the ingredients. Food that is cold or frozen will take longer to cook than food that is at room temperature.
• When using the Delay Start program, allow sufficient cooling down time before serving.
• The Delay Start program is not recommended for porridge, oatmeal or other foamy and thick liquids. Cooking progresses should be monitored when cooking these foods.

Care and Cleaning

Unplug your Instant Pot^® and let it cool to room temperature before cleaning.

• All Instant Pot^® inner pots, pressure cooker lids, glass lids, and accessories are dishwasher safe (it is recommended to use the top rack of the dishwasher).
• Remove the inner pot and lid and wash with detergent. Rinse with clear water and wipe dry with a soft cloth.
• Wipe the inner cooker base rim and slot dry with cloth to prevent rusting of the exterior cooker rim.
• Remove the sealing ring and anti-block shield from the underside of the lid. Wash with warm, soapy water, rinse with clear water and wipe dry with a soft cloth.
• The sealing ring must always be properly positioned on the underside of the lid.
• Clean the outer body with a damp soft cloth or sponge.
• Never use harsh chemical detergents, scouring pads or powders on any of the parts or components.
• Periodically check that the steam release valve and float valve are in good working order and free of debris.

Troubleshooting

If you experience any problems with the cooker, need technical assistance or product return information, please contact the Instant Pot support team using the methods below:

• Create a support ticket: www.InstantPot.com/support/
• Email: support@instantpot.com
• Call 1-800-828-7280 ext 2 for the customer care team.

You can also find tips, videos and FAQs on www.InstantPot.com/faq/

The issues in the following tables do not always indicate a faulty cooker. Please examine the cooker carefully before contacting the support for repair.

Warranty

Limited Warranty

This Limited Warranty is effective for one year from the date of original consumer purchase. Proof of original purchase date and, if requested by an authorized Instant Pot Company ("IPC") representative, return of your appliance as IPC may direct at IPC's expense, is required to obtain service under this Limited Warranty.

When this appliance is operated and maintained in accordance with written instructions attached to or furnished with the product, Instant Pot Company will pay for either (i) repair labor to correct defects in materials or workmanship that existed when this appliance was purchased or (ii), at its sole and exclusive discretion, replace the appliance for a period of one (1) year from the date of purchase. In the event that your appliance is replaced, the Limited Warranty on the replacement appliance will expire at the original date (i.e. 12 months from the original purchase date).

This Limited Warranty extends only to the original purchaser and use of the appliance in the United States of America and Canada. This warranty does not cover units that are used outside of the United States of America and Canada.

Any modification or attempted modification to your appliance may interfere with the safe operation of the appliance and will void this Limited Warranty. This Limited Warranty does not apply in respect of any appliance or any part thereof that has been altered or modified from its factory settings unless such alterations or modifications were expressly authorized by an IPC representative.

IPC is not responsible for shipping costs related to warranty service, save and except for shipping costs associated with the return of your appliance as provided herein.

Limitation and Exclusions
The liability of IPC, if any, for any allegedly defective appliance or part shall in no circumstances exceed the purchase price of a comparable replacement appliance.

This Limited Warranty does not cover:

1. Damage resulting from accident, alteration, misuse, abuse, neglect, unreasonable use, use contrary to the operating instructions, normal wear and tear, commercial use, improper assembly, disassembly, failure to provide reasonable and necessary maintenance, fire, flood, acts of God or repair by anyone unless directed by an Instant Pot Representative.
2. Repairs where your appliance is used for other than normal, single-family household use or when it is used in a manner that is contrary to published user or operator instructions.
3. Use of unauthorized parts and accessories, or repairs to parts and systems resulting from unauthorized repairs or modifications made to this appliance.

The cost of repair or replacement under these excluded circumstances shall be borne by you.

Videos

Instant Pot Lux VS Instant Pot Duo Video

Instant Pot Mini Lux Review Water Test Video

Documents / Resources

References

• Frequently asked questions | Instant Home
• Instant Brands Product Registration | Instant Home
• Instant® Kitchen & Home Appliances Homepage | Instant Home
• http://facebook.com/groups/instantpotcommunity
• Instant Pot (@InstantPot) | Twitter
• App Store - Apple
• Google Play

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Instant Pot Ip Lux Series Manual
