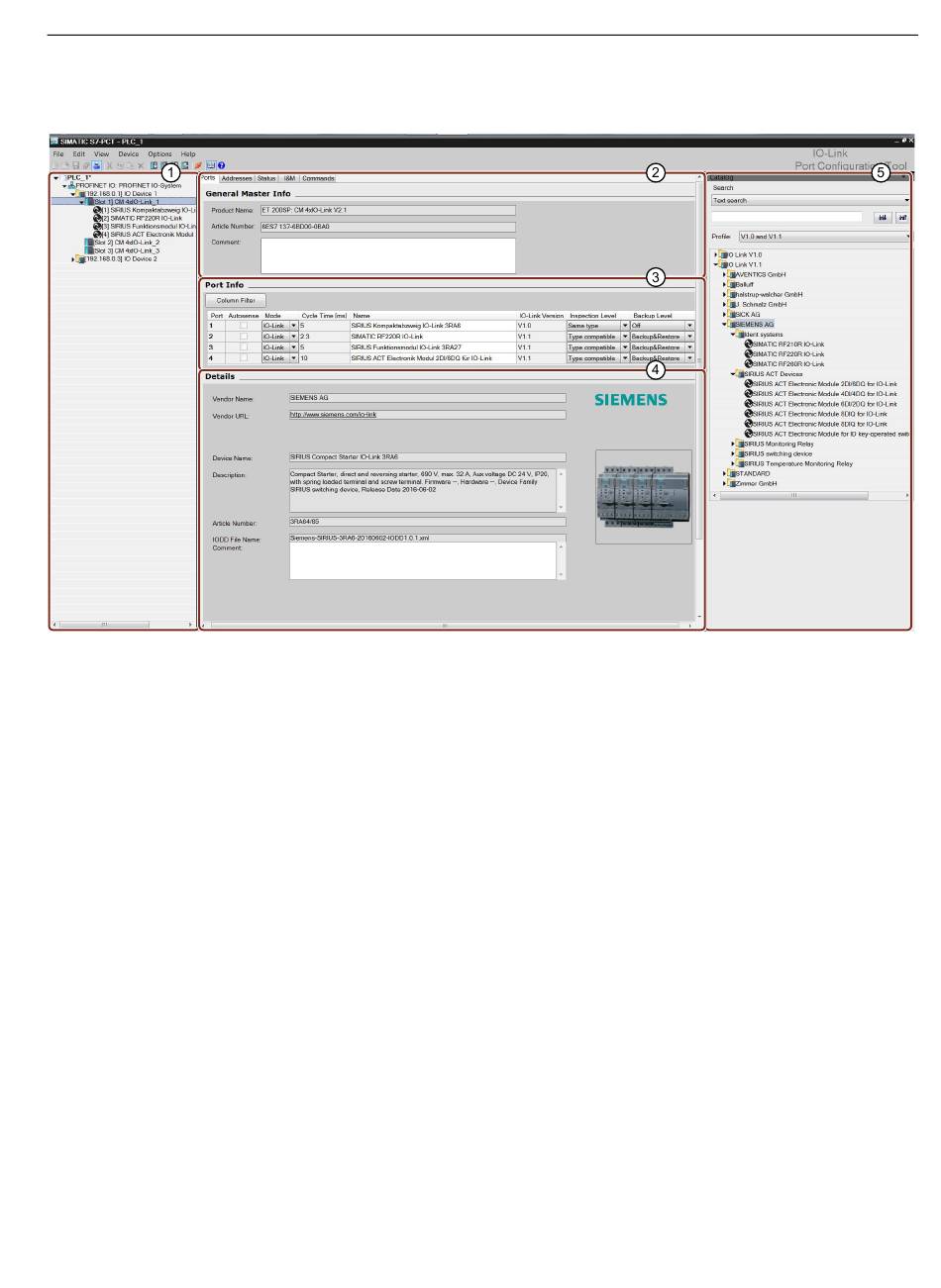

This S7-PCT view shows you a wide variety of information:
① Higher-level field bus and overview or structure of the lower-level IO-Link master
② Detailed information on the selected IO-Link master
③ Current configuration of the IO-Link ports of the selected IO-Link master
④ Detailed information on the selected IO-Link device
⑤ Device catalog with the IODDS of the IO-Link devices from different manufacturers
Figure 3-3 Configuration of an IO-Link master in S7-PCT
Address range of the ports
In addition to the assignment of the IO-Link devices to the IO-Link master ports, the default
address ranges of the ports can be changed. The IO-Link master transfers the process values
that it receives from the IO-Link device in these address ranges and makes the process values
available to the higher-level automation system.
To set the address range, select the "Addresses" tab.
Setting device parameters
Specific parameter settings are required to adjust the device to the respective application
task. The possible parameters and set values are contained in the IODD of each device. You
set the device parameters directly in S7-PCT.
After selecting the corresponding device in the project tree (left tree), set the device
parameters in the "Parameters" tab.
