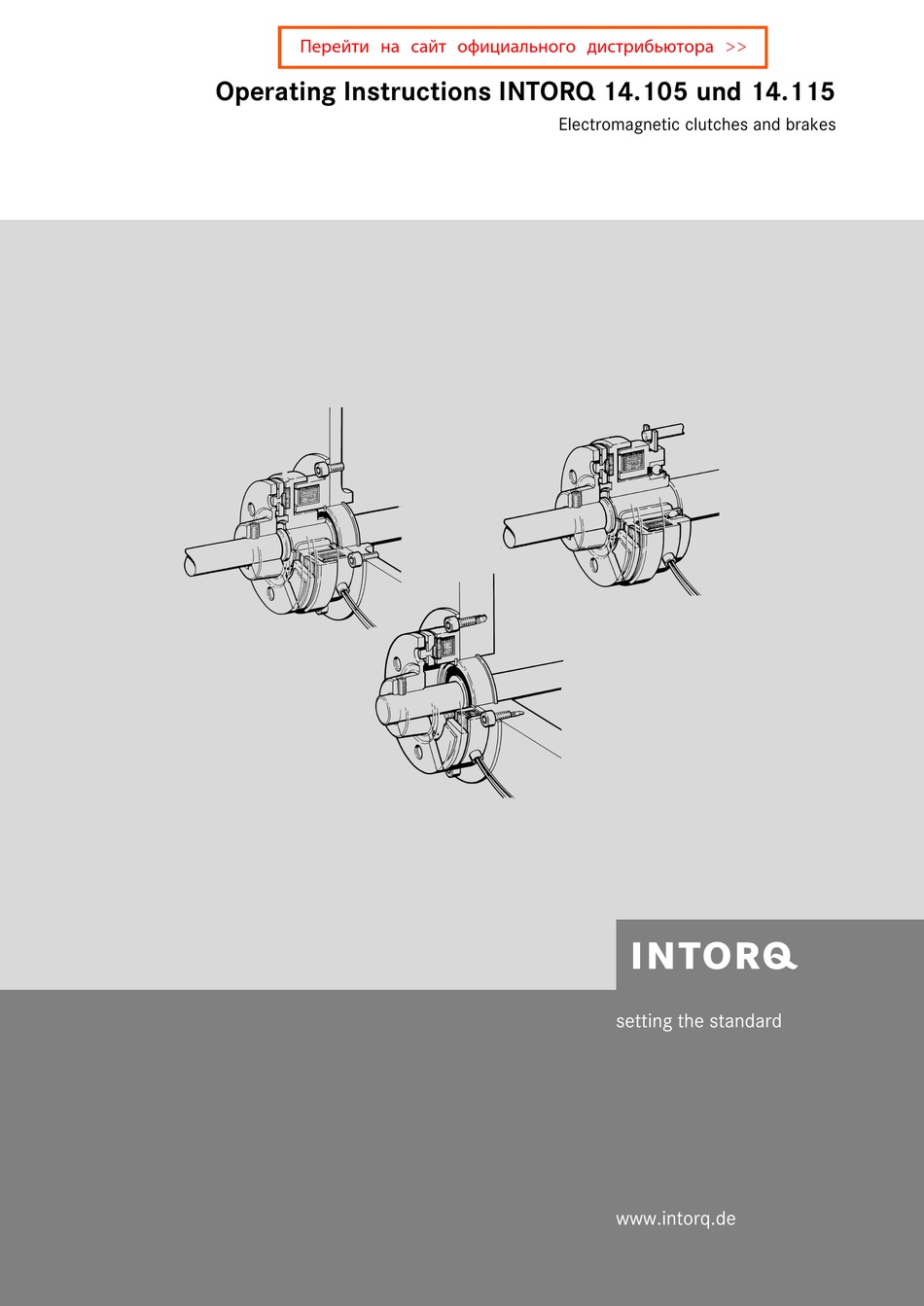

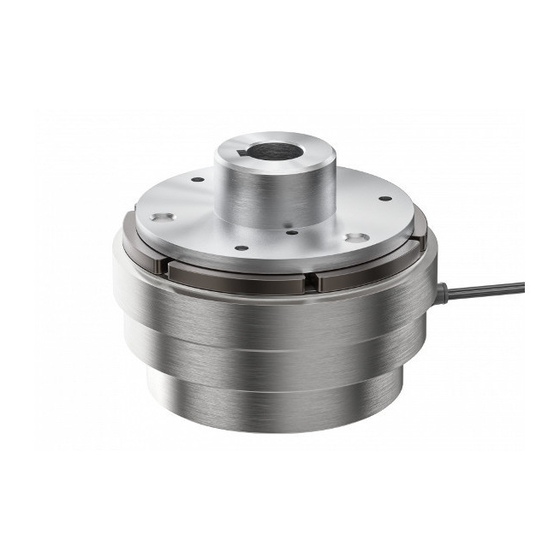

Operating Instructions INTORQ 14.105 und 14.115
Electromagnetic clutches and brakes
j
setting the standard
www.intorq.de

Advertisement

Table of Contents
loading

Summary of Contents for INTORQ 14.105 Series

  • Page 1 Перейти на сайт официального дистрибьютора >> Operating Instructions INTORQ 14.105 und 14.115 Electromagnetic clutches and brakes setting the standard www.intorq.de...
  • Page 2 (for brakes only) without flange hub with flange hub bearing (for clutches only) Variants Supply voltage Rotor bore Armature bore The specifications in the product key, nameplate and packaging sticker are valid for INTORQ electromagnetic clutches and electromagnetic brakes.
  • Page 3 © 2007 INTORQ GmbH & Co KG, Wülmser Weg 5, D−31855 Aerzen No part of this documentation may be reproduced or made accessible to third parties without written consent by INTORQ GmbH & Co All information given in this documentation has been selected carefully and complies with the hardware and software described.
  • Page 4: Table Of Contents

    j | BA 14.0175−EN | 11/2007 Contents Preface and general information ........How to use these Operating Instructions .
  • Page 5: Preface And General Information

    After receipt of the delivery, check immediately whether it corresponds to the accompanying papers. INTORQ does not grant any warranty for deficiencies claimed subsequently. Claim – visible transport damage immediately to the forwarder.
  • Page 6: Labelling

    – operating faults – disregarding these Operating Instructions Warranty Terms of warranty: see terms of sale and delivery of INTORQ GmbH & Co. KG. Warranty claims must be made to INTORQ immediately after detecting defects or faults. The warranty is void in all cases where liability claims cannot be made.
  • Page 7: Safety Instructions

    Do not operate the clutches and brakes unless they are in perfect condition. Retrofittings, modifications and changes of the drive system are generally forbidden. In any case, INTORQ GmbH & Co. KG must be contacted beforehand. The friction lining and the friction surfaces must by no means have contact to oil or grease since even small amounts reduce the brake torque considerably.
  • Page 8 j | BA 14.0175−EN | 11/2007 Safety instructions 2.1.1 Personnel responsible for safety Operators An operator is any natural or legal person who uses the clutch or brake or on whose behalf the clutch or brake is used. The operator or his safety personnel must ensure –...
  • Page 9 | BA 14.0175−EN | 11/2007 Safety instructions Application range of the INTORQ clutches and brakes No explosive or aggressive atmosphere. Humidity, no restrictions. Ambient temperature −20°C to +40°C. With high humidity and low temperatures – Take measures to protect armature plate and rotor from freezing.
  • Page 10: Definition Of Notes Used

    j | BA 14.0175−EN | 11/2007 Safety instructions Definition of notes used The following pictographs and signal words are used in this documentation to indicate dangers and important information: Safety instructions Structure of safety instructions: Danger! Characterises the type and severity of danger Note Describes the danger Possible consequences:...
  • Page 11: Technical Data

    The prestressed springs draw the armature plate back to its initial position when the DC voltage is no longer applied. The clutch is released without residual torque. 5,6,7 Fig. 1 Flange−mounted clutch INTORQ 14.105.LL.1.1 Stator 5,6,7 Armature assembly Rotor...
  • Page 12 When the DC voltage is switched off, the prestressed spring pulls the armature plate back to its initial position. It is released without residual torque. 5,6,7 Fig. 2 Shaft−mounted clutch INTORQ 14.105.LL.3.1 Stator 5,6,7 Armature assembly Rotor...
  • Page 13 When the DC voltage is switched off the prestressed patented spring pulls the armature plate back to its initial position. The brake is released without residual torque. 5, 6, 7 Fig. 3 Flange−mounted brake INTORQ 14.115.LL.1.1 Stator 5,6,7 Armature assembly...
  • Page 14: Selection Table Of Clutches

    −5 Type Operating times J [10 20°C −1 −1 [Nm] [min [ms] [kWh] Rotor Armature plate 8000 3.6x10 11.9 13.3 INTORQ 14.105.06. 6x10 16.6 26.5 29.4 17.1 11.8 INTORQ 14.105.08. 6000 28.2 INTORQ 14.105.10. 10x10 34.7 86.6 66.4 47.2 5000 INTORQ 14.105.12.
  • Page 15: Mechanical Installation

    | BA 14.0175−EN | 11/2007 Mechanical installation Mechanical installation Preparation 1. Unpack clutch or brake. 2. Check completely. 3. Check nameplate data, especially rated voltage. . − Example INTORQ 10 5 050480 − − − Legend for product key Type Size...
  • Page 16 | BA 14.0175−EN | 11/2007 Mechanical installation 4.1.1 Designs INTORQ 14.105.LL. Item 1; 2; 5 INTORQ 14.105.LL. Item 1; 2; 6 INTORQ 14.105.LL. Item 1; 2; 7 INTORQ 14.105.LL. Item 3a; 3b; 5 INTORQ 14.105.LL. Item 3a; 3b; 6 INTORQ 14.105.LL.
  • Page 17: Mounting

    j | BA 14.0175−EN | 11/2007 Mechanical installation Mounting Stop! | Keep friction faces free of grease and oil! | Use oil− and grease−tight deep−groove ball bearings only! 4.2.1 Clutch and brake of design 1 The stator of clutch or brake of design 1 must be mounted internally or externally centred (observe dimension t for max.
  • Page 18 Use shims for the exact air gap setting and for the compensation of wear. Stop! The armature assembly must be fixed axially. 14.105 14.115 Fig. 5 Size INTORQ 14.105 INTORQ 14.115 [mm] [mm] b [mm] b [mm] 0.2±0.05 0.04 0.16...
  • Page 19 j | BA 14.0175−EN | 11/2007 Mechanical installation 4.2.4 Mounting of armature assembly of design 3 Æ d [mm] Size Screws Schnorr lock washer * t [mm] M3x8 Schnorr lock washer 3 M4x10 Schnorr lock washer 4 M5x12 6912 Schnorr lock washer 5 M6x16 7984 Schnorr lock washer 6...
  • Page 20: Electrical Installation

    j | BA 14.0175−EN | 11/2007 Electrical installation Electrical installation The device is connected to DC voltage (observe voltage specification on the stator). Permissible voltage fluctuation according to VDE 0580: +6% to −10%. The standard voltage is 24V DC. If no DC voltage is available the voltage must be supplied via transformers or rectifiers.
  • Page 21: Maintenance

    | BA 14.0175−EN | 11/2007 Maintenance Maintenance The INTORQ clutches and brakes are largely free of maintenance. In applications requiring many switching operations the air gap s " must be checked and readjusted at certain periods. When the air gap has reached 250 % of its rated value s "...
  • Page 22: Spare−Parts List

    j | BA 14.0175−EN | 11/2007 Maintenance Spare−parts list The clutches and brakes have a wear reserve of several millimeters. When these are used up after several readjustments, the rotor and armature assembly of clutches and the stator and armature assembly of brakes must be replaced in pairs. When ordering spare parts, indicate the designation of the parts according to the illustration and list below.
  • Page 23: Spare Parts Order

    | BA 14.0175−EN | 11/2007 Maintenance Spare parts order Example: Electromagnetic clutch INTORQ 14.105 Item 1 − 24 V Type Size Spare part Example: Electromagnetic brake INTORQ 14.115 Item 6 Type Size Spare part When you order stators, you also have to indicate the coil voltage and power (see section Electrical connection).
