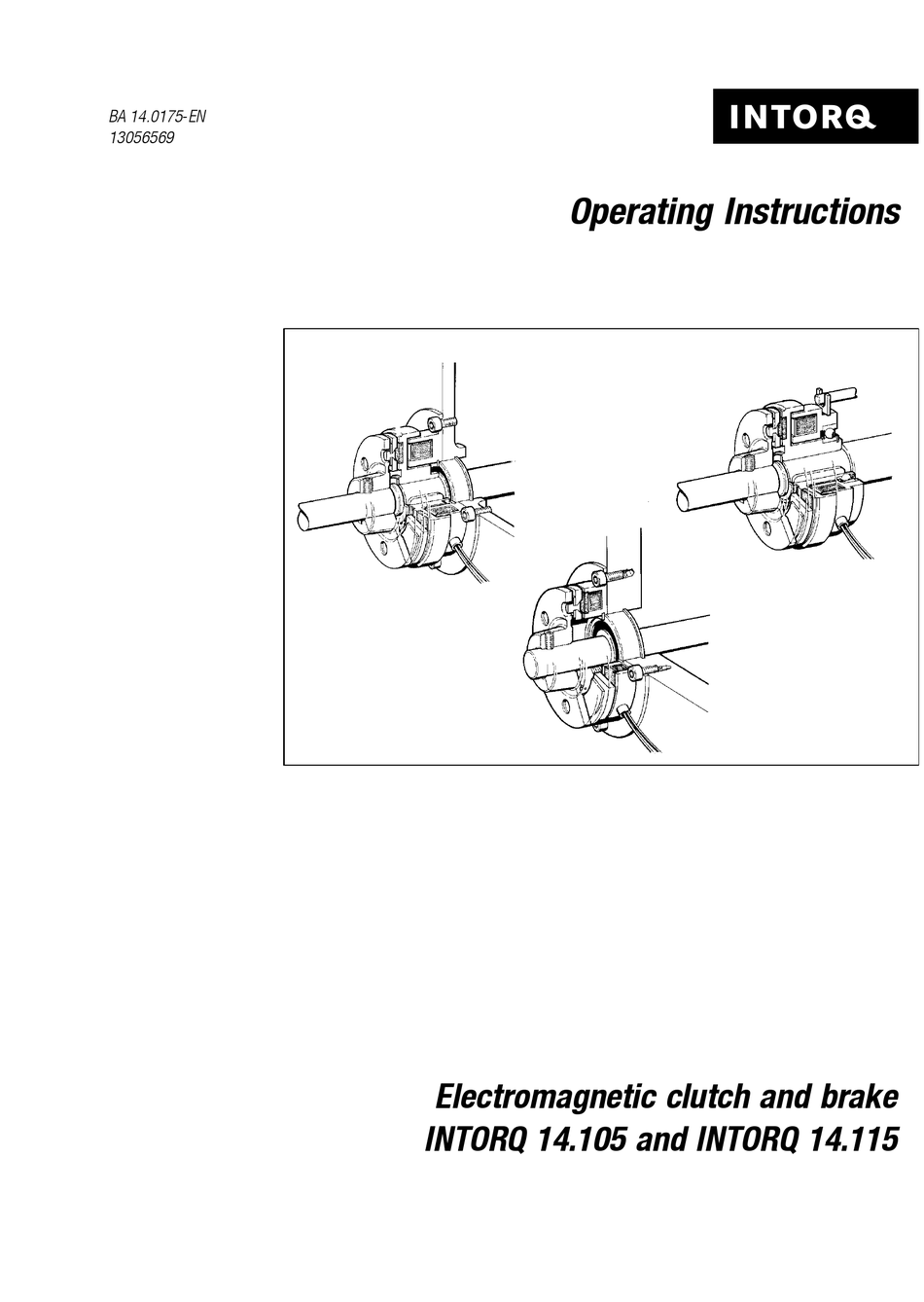

- Page 1 BA 14.0175-EN 13056569 Operating Instructions Electromagnetic clutch and brake INTORQ 14.105 and INTORQ 14.115...
- Page 2 E 2005 INTORQ GmbH & Co. KG No part of this documentation may be reproduced or made accessible to third parties without written consent by INTORQ GmbH & Co. KG. All information given in this documentation has been carefully selected. Required corrections will be included in updates of this documentation.
- Page 3 Product key INTORQ 14.105 Electromagnetic clutches, 7.5 - 480 Nm INTORQ 14.115 Electromagnetic brakes, 7.5 - 480 Nm INTORQ 14.1 5. . . V, . ., ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ Type Size Stator design Armature design...
- Page 4 Nameplate Structure Field Content Example Manufacturer D D D D - - - - A A A A e e e e r r r r z z z z e e e e n n n n D D D D - - - - A A A A e e e e r r r r z z z z e e e e n n n n Brake type 14.115.06.1.0 14.115.06.1.0...
-
Page 5: Table Of Contents
Contents 1 Preface and general information ......... . . About these Operating Instructions ... -
Page 6: Preface And General Information
• After receipt of the delivery, check immediately whether the items delivered match the accompanying papers. INTORQ GmbH & Co. KG does not accept any liability for deficiencies claimed subsequently. Claim – visible transport damage immediately to the forwarder. -
Page 7: Labelling
– operating errors – disregarding these Instructions Warranty • Warranty conditions: see Sales and Delivery Conditions of INTORQ GmbH & Co. KG. • Warranty claims must be made to the INTORQ representative responsible for you immediately after detecting defects or faults. -
Page 8: Safety Information
• Retrofittings, modifications or changes of the clutch or brake are generally forbidden. In any case, INTORQ GmbH & Co. KG must be contacted before. • The friction lining and the friction surfaces must by no means have contact to oil or grease since even small amounts reduce the brake torque considerably. -
Page 9: Layout Of The Safety Information
Safety information Application range of the INTORQ clutches and brakes • No potentially-explosive or agressive atmosphere. • Humidity, no restrictions. • Ambient temperature -20°C to +40°C • Sparking in switching operation – Especially at high speeds and high surface speeds of large clutches and brakes sparking can occur during the switch-on slip phase. -
Page 10: Data
5,6,7 Armature assembly Lü 5,6,7 Fig. 1 Flange-mounted clutch INTORQ 14.105. .1.1 3.1.2 Shaft-mounted clutches The clutch with magnet frame with bearing is particularly suitable for the mounting on through-shafts. The stator (1) with encapsulated coil and sealed deep-groove ball bearing is secured against torsion by a torque arm engaging into the lug at the stator. -
Page 11: Flange-Mounted Brakes
5,6,7 Armature assembly Lü 5,6,7 Fig. 2 Shaft-mounted clutch INTORQ 14.105. .3.1 3.1.3 Flange-mounted brakes The brake consists of the stator (1) with encapsulated coil and fixed friction lining and an armature assembly (5,6,7) with armature plate and prestressed spring. The stator (1) is centred to the shaft and mounted at the machine panel. -
Page 12: Selection Table Of Clutches
Technical data Selection table of clutches Type Operating times J [10 kgm2] 20°C hü [Nm] [min [ms] [kWh] Rotor Armature assembly INTORQ 8000 3,6x10 11,9 13,3 14.105.06. . INTORQ 6000 6x10 16.6 26.5 29.4 17.1 11.8 28.2 14.105.08. . INTORQ... -
Page 13: Installation
1. Unpack clutch or brake. 2. Check completely. 3. Check nameplate data, especially rated voltage. 4.1.1 Product key Example: INTORQ 14.105. 16.1. 1. - 050480 - 24 - 25 - 30 Armature bore Type Rotor bore Size Stator design Connection voltge Armature design Article no. -
Page 14: Designs
Installation 4.1.2 Designs Size Stator design Armature design INTORQ 14.105. 1. 1 Item 1; 2; 5 INTORQ 14.105. 1. 3 Item 1; 2; 6 INTORQ 14.105. 1. 5 Item 1; 2; 7 INTORQ 14.105. 3. 1 Item 3a; 3b; 5 INTORQ 14.105. -
Page 15: Assembly
Installation Assembly Stop! • Keep friction faces free of grease and oil! • Use oil- and grease-tight deep groove ball bearings only! 4.2.1 Clutch and brake of design 1 The stator of clutch or brake of design 1 must be mounted internally or externally centered (observe dimension “t ”... -
Page 16: Mounting Of Armature Assembly Of Designs 1, 2 And 5
Use shims for the exact air gap setting and for the compensation of wear. Stop! The armature assembly must be fixed axially. 14.105 14.115 Fig. 6 Size INTORQ 14.105 INTORQ 14.115 Lü [mm] [mm] b [mm] b [mm] 0,2 ± 0.05 0.04... -
Page 17: Mounting Of Armature Assembly Of Design 3
Installation 4.2.4 Mounting of armature assembly of design 3 Use bolts with threads up to the head to fix the armature assembly. • For the tapped holes the clearance bores “Ød” and the depth “t” (Tab. 4) must be observed maintained in any case. -
Page 18: Electrical Connection
Installation Electrical connection The device is connected to DC voltage (observe voltage specification on the stator). Permissible voltage fluctuation acc. to VDE 0580: +6% to -10% . The standard voltage is 24 V DC. If no DC voltage is available the voltage must be supplied via transformers or rectifiers. -
Page 19: Maintenance
Maintenance Maintenance The clutches and brakes are largely free of maintenance. In applications requiring many switching operations the air gap “s ” must be checked and readjusted at certain periods. When the air gap Lü has reached 250% of its rated value “s ”... -
Page 20: Spare Parts List
Maintenance Spare parts list The clutches and brakes have a wear reserve of several millimeters. When these are used up after several readjustments the rotor and armature assembly of clutches and the stator and armature assembly of brakes must be replaced in pairs. •... - Page 21 Maintenance • Spare parts should be ordered according to the following example: Electromagnetic clutch Electromagnetic brake INTORQ 14.105. 10. Item 1 - 24V / 28W INTORQ 14.115. Item 6 Type Size Spare part Type Size Spare part • When you order stators you also have to indicate the coil voltage and power (see section Electrical connection).
