ESCALADE Goliath Prodigy B2255EF Assembly Instructions Manual

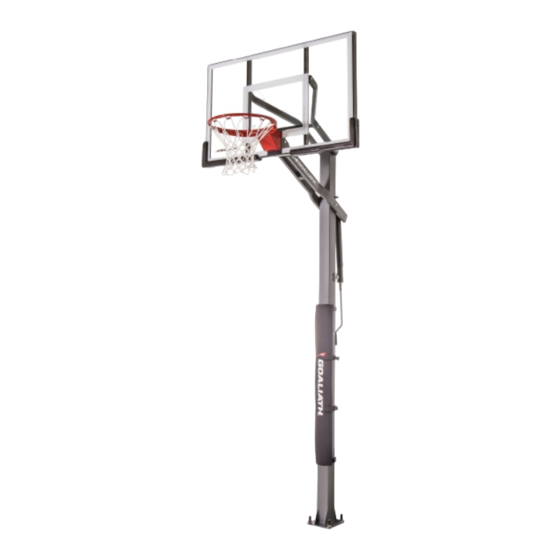

Basketball system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Please Do Not Return This
Product to the Store!
Contact HAMMER SPORT AG at:
Tel: 0731-97488-41
E-mail: info@hammer-basketball.com
Escalade® Sports products may be manufactured and/or licensed under multiple patents.
Additional patents may be pending. One or more patents and/or pending patents may cover specific product.
See
Goalrilla.com/legal
for more information.
P R O D I G Y
B A S K E T B A L L S Y S T E M
- 5 4 "
MODEL NO.
B2255EF
HAMMER ITEM NO.
2101
2L-7909-00
2020 Escalade Sports

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Goliath Prodigy B2255EF and is the answer not in the manual?

Questions and answers

Related Manuals for ESCALADE Goliath Prodigy B2255EF

Summary of Contents for ESCALADE Goliath Prodigy B2255EF

  • Page 1 Product to the Store! Contact HAMMER SPORT AG at: Tel: 0731-97488-41 E-mail: info@hammer-basketball.com Escalade® Sports products may be manufactured and/or licensed under multiple patents. 2L-7909-00 Additional patents may be pending. One or more patents and/or pending patents may cover specific product. Goalrilla.com/legal for more information.

  • Page 2: P R E - A S S E M B L Y T I P S

    Abt. Kundendienst Install only on flat solid ground; Von-Liebig-Str. 21 Do not use in extreme wind or bad weather, the basketball stand could tip over! 89231 Neu-Ulm 2L-7909-00 2020 Escalade Sports...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE. Owner must ensure that all players know and follow these rules for safe operation of the system. Owner must ensure that all players know and follow these rules for safe operation of the system. WARNING FAILURE TO FOLLOW THESE WARNINGS MAY R E S U LT I N S E R I O U S I N J U R Y A N D / O R...
  • Page 4 INSTALLATION TIMELINE Prior to anchor system and goal assembly, call utility services for location of underground utility lines before you dig. Vertical main post assembly is a two part process. PART 1 PART 2 ® Day 1. Complete Anchor System Installation Instructions. Day 5.
  • Page 5 P A R T S L I S T ( N O T A C T U A L S I Z E ) LOGO ON THIS SIDE LOWER BOARD ARM ASSEMBLY UPPER POLE BACKBOARD ASSEMBLY, 54" X 33" LOWER POLE with Goaliath logo 1A-7962-10 6A-7798-10...
  • Page 6 P A R T S L I S T ( N O T A C T U A L S I Z E ) BOARD PAD, LH BOARD PAD, RH ACTUATOR 3M-6581-00 3M-6580-00 4A-6605-00 QTY. 1 ACTUATOR HANDLE QTY. 1 QTY.
  • Page 7 H A R D W A R E L I S T ( A C T U A L S I Z E ) 3/8 - 16 X 7.5 " HHCS, Grade 5 1B-6483-10 QTY. 2 3/8-16 X 7.00 HHCS, ZINC GR 5 1B-6484-10 QTY.
  • Page 8 H A R D W A R E L I S T ( A C T U A L S I Z E ) 3/8-16 X 1.50 CB, ZINC 3/8-16 X .625 SBHS, STAINLESS STEEL 1/2-13 X 1 1/2" HHCS 1B-7187-00 1B-7189-00 1B-6486-10...

  • Page 9: Nylon Washer

    H A R D W A R E L I S T ( A C T U A L S I Z E ) NYLON WASHER, 3/8 FLAT WASHER 3/8" WASHER 1/2" FLAT WASHER, ZINC 2B-6114-00 0.38 ID X 1.25 OD 701-50 2B-6093-00 QTY.
  • Page 10 H A R D W A R E L I S T ( A C T U A L S I Z E ) H A R D W A R E L I S T ( A C T U A L S I Z E ) 5/8"-11 HEX NUT 5/8"...

  • Page 11: Tools Needed

    TOOLS NEEDED HARDWARE NEEDED (ACTUAL SIZE) 3/8-16 X .625 SBHS, STAINLESS STEEL 7/32” 1B-7189-00 Packed in hardware kit. QTY.4 KEEP CHILDREN AWAY FROM THE ASSEMBLY AREA. TWO CAPABLE ADULTS ARE NEEDED FOR THE FOLLOWING STEPS. NOTE WITH THE HELP OF ANOTHER ADULT CAREFULLY LIFT UPPER POLE (#3) AND SLIDE INTO LOWER POLE (#2).
  • Page 12 TOOLS NEEDED HARDWARE NEEDED (ACTUAL SIZE) 3/8-16 X .625 SBHS, STAINLESS STEEL 7/32” 1B-7189-00 Packed in hardware kit. QTY.4 KEEP CHILDREN AWAY FROM THE ASSEMBLY AREA. TWO CAPABLE ADULTS ARE NEEDED FOR THE FOLLOWING STEPS. NOTE USE 7/32” HEX KEY WRENCH TO INSERT 4 SIDE BUTTON HEAD SCREWS (#29).
  • Page 13 HARDWARE NEEDED (ACTUAL SIZE) 1/4-20 X 2.75 HHCS, ZINC 1B-7196-00 QTY. 1 WASHER, 1/4" SAE FLAT 1/4-20 LOCKNUT, ZINC 2B-6014-00 2B-6792-00 QTY. 2 QTY. 1 Joint Reinforcement Bushings TOOLS NEEDED 7/32” NOTE TOOLS NEEDED INSTALL BOLT (#30), WASHERS (#38) AND NUT (#44) INTO JOINT REINFORCEMENT BUSHINGS AS SHOWN.
  • Page 14 NOTE: Prepare a flat area that is clear of debris. Keep children MAKE SURE THAT THE POLE IS SECURE ON THE away from the assembly area. Two capable adults are SAWHORSES AND NEVER LEAVE IT UNATTENDED. needed for the following steps. NOTE PLACE POLE ASSEMBLY ON TWO SAWHORSES AS SHOWN.
  • Page 15 HARDWARE NEEDED (ACTUAL SIZE) TOOLS NEEDED 3/8-16 X 5" HHCS, GRADE 5 1B-6485-10 9/16” 9/16” QTY. 2 3/8-16 LOCKNUT 3/8" WASHER 901-28 701-50 QTY. 2 QTY. 4 NOTE ATTACH POST EARS AS SHOWN. Tighten hardware about 3/4ths of the way. Leave loose enough to attach Actuator on page 18.
  • Page 16 HARDWARE NEEDED (ACTUAL SIZE) TOOLS NEEDED 3/8-16 X 7.00 HHCS, ZINC GR 5 1B-6484-10 QTY. 1 9/16” 9/16” HELPFUL HINT: 3/8-16 LOCKNUT To secure item #34 (3M-6883-00) Nylon Washer in position for assembly use 3/8" WASHER 901-28 several small strips of tape, drops of hot melt glue or other adhesive. 701-50 QTY.

  • Page 17: Hardware Needed

    HARDWARE NEEDED PIVOT TUBE 8S-6658-00 QTY. 1 (Packed in hardware kit) NOTE PIVOT TUBE (#16) MUST GO THROUGH THE ACTUATOR CAP (#19), ACTUATOR SLEEVE (#18) AND THE STEEL ACTUATOR TUBE (#12).
  • Page 18 HARDWARE NEEDED (ACTUAL SIZE) NOTE Attach actuator (#12) to post ears as shown, tighten but leave loose enough for actuator to pivot. At this time attach the Actuator handle (#13) with pin (#17). 1/2-13 NUT NYLOK, ZINC 1/2-13 X 1 1/2" HHCS 2B-6095-00 1B-6486-10 1/2"...
  • Page 19 HARDWARE NEEDED (ACTUAL SIZE) TOOLS NEEDED 3/8-16 X 7.00 HHCS, ZINC GR 5 1B-6484-10 QTY. 1 9/16” 9/16” 3/8-16 LOCKNUT 3/8" WASHER 701-50 901-28 WASHER 0.38 ID X QTY. 1 QTY. 2 1.25 OD NYLON 3M-6883-00 QTY. 2 NOTE Pivot If needed extend the actuator by turning Tube the handle clockwise until the actuator...
  • Page 20 TOOLS NEEDED 9/16” 9/16” NOTE Tighten Lock Nuts (#42) that hold the post ears until tight.
  • Page 21 HARDWARE NEEDED (ACTUAL SIZE) TOOLS NEEDED 3/8 - 16 X 7.5 " HHCS, Grade 5 1B-6483-10 9/16” 9/16” STOP SPACER QTY. 1 8S-6657-00 QTY. 2 3/8-16 LOCKNUT 901-28 QTY. 1 Turn the actuator until the lower arms are perpendicular to the pole as shown. This will ease the assembly when attaching the backboard in NOTE...
  • Page 22 HARDWARE NEEDED (ACTUAL SIZE) TOOLS NEEDED 3/8 - 16 X 7.5 " HHCS, Grade 5 1B-6483-10 9/16” 9/16” QTY. 1 3/8" WASHER 3/8-16 LOCKNUT NYLON SPACER, 0.4 ID X .78 OD X .25 THICK 701-50 901-28 3M-6269-00 QTY. 2 QTY. 1 QTY.
  • Page 23 TOOLS NEEDED HARDWARE NEEDED (ACTUAL SIZE) 1/2” 1/2” 5/16-18 X 1.75 HHCS, ZINC 5/16" WASHER 5/16-18 NUT NYLOK ZINC 1B-7190-00 2B-6024-00 2B-6009-02 QTY. 4 QTY. 8 QTY. 4 NOTE Attach Board arm brace as shown but hand tighten hardware only. This will make it easier when attaching the Backboard. You will tighten this after the backboard is installed.
  • Page 24 PLACING THE POST ON THE ANCHOR SYSTEM REQUIRES AT LEAST THREE CAPABLE ADULTS. POLE WILL WANT TO LEAN WHILE ATTEMPTING TO STAND IT UP ON ANCHOR BOLTS. 1. With one person holding the lower pole have a second person remove one saw horse, then carefully lower the pole on the ground.
  • Page 25 HARDWARE NEEDED (ACTUAL SIZE) TOOLS NEEDED PLACING THE POST ON THE ANCHOR SYSTEM REQUIRES AT LEAST TWO CAPABLE ADULTS. POLE WILL WANT TO LEAN WHILE ATTEMPTING TO STAND IT UP ON ANCHOR BOLTS. 15/16” 15/16” 5/8"-11 HEX NUT NOTE 5/8" SPLIT LOCK 2B-6097-00 WASHER DO NOT REMOVE BOTTOM NUTS #45 THAT...
  • Page 26 Before proceeding to the next step have the hardware and tools ready along at least 3 other capable people, read the next page completely and understand it before beginning the next step. ASSEMBLY TIP HARDWARE NEEDED (ACTUAL SIZE) TOOLS NEEDED 3/8-16 X 6.25"...
  • Page 27 ATTACHING BACKBOARD TO BOARD ARMS REQUIRES HANDLE BACKBOARD WITH CARE, IT IS A GLASS AT LEAST FOUR CAPABLE ADULTS. PRODUCT . ALWAYS WEAR SAFETY GLASSES AND GLOVES WHEN HANDLING GLASS. 5. With at least four capable adults, raise the backboard assembly up and have the fifth person attach lower board arm 2 to rim support as shown in Detail B.
  • Page 28 HARDWARE NEEDED (ACTUAL SIZE) TOOLS NEEDED 3/8-16 X 2 3/4" HHCS 3/8-16 LOCKNUT 9/16” 9/16” 3/8" WASHER 1B-6195-00 901-28 701-50 QTY. 2 NYLON WASHER, QTY. 2 QTY. 4 0.38 ID X 1.25 OD 3M-6883-00 QTY. 2 6. Pivot upper arms up and attach to the outside of Backboard frame as shown.
  • Page 29 HARDWARE NEEDED (ACTUAL SIZE) TOOLS NEEDED Phillips 9/16” 3/8-16 X 1.50 CB, ZINC 3/8-16 LOCKNUT #8 X 1/2" SCREW 3/8 FLAT WASHER 1B-6788-00 1B-7187-00 901-28 2B-6114-00 QTY. 4 QTY. 4 QTY. 4 QTY. 4 s n o a r m a r d r i t y .

  • Page 30: Tools Required

    HARDWARE NEEDED (ACTUAL SIZE) Check all nuts and bolts and make sure everything is TOOLS REQUIRED tightened properly.DO NOT over tighten pivot points, snug is tight enough. Use the Backboard Pads (#44) and (#45) as a template and mark the hole locations on the backboard frame. See Detail B. #10 X 1.0 ZINC SELF DRILLING / Note: Screws (#31), used in step 10, are Self Drilling Cordless Drill...
  • Page 31 NOTE Attach net as shown in Detail C. DETAIL C...
  • Page 32 SET AT 10 FEET HIGH LOWER ALL THE WAY DOWN Raise Backboard to 10 FT. regulation playing height. Measure from top of rim straight down to the playing surface. Using tape - mark the side of the steel actuator (#12) just under the plastic actuator sleeve (#18) at this 10 ft rim height.
  • Page 33 12. Secure Post Pad (#53) to front of pole by wrapping straps around pole and sticking to velcro on opposite side of Pad. Post Pad should cover Post Screws but remain below Warning Label on the front of the Pole. Make sure to reposition Pole Pad if sliding occurs. NOTE: Do not cover the Warning Label on the front of the pole with the Pole Pad.

  • Page 35: Limited 5 Year Warranty

    OR OTHER CAUSES NOT ARISING OUT OF DEFECTS IN MATERIAL OR WORKMANSHIP . ® Subject to proper installation and normal Residential use, Escalade Sports warrants, subject to the limitations below, to the original retail purchaser all structural components of the Goaliath ®...
