ESCALADE GOALIATH B2253 Owner's Manual

Basketball system

Advertisement

Quick Links

O W N E R ' S M A N U A L
1. Read this manual carefully before starting assembly. Read each step completely before beginning
each step.
2. Some smaller parts may be shipped inside larger parts. Check inside all parts and cartons
before assembling or ordering parts.
3. To make assembly of your basketball system easier , use the Hardware Identifier on page 4
to identify and sort all fasteners. Check all cartons for kits. All hardware is not located
in one kit.
4. Do not tighten hardware until instructed to do so. If hardware is tightened too soon, mounting holes
may not align and parts may not easily fit together . Leave locknuts slightly loose until you are instructed to
tighten them.
5. An electric screwdriver is helpful in assembly. However, please set at low torque and use caution
because you could overtighten the hardware and strip the screws.
6. Save this instruction and your proof of purchase (receipt) in the event that the manufacturer
has to be contacted for replacement parts.
Please Do Not Return This Product T o The Store!
Contact Escalade
Phone:
1-888-USA-GOAL
Fax:
1-866-873-3536
E-mail:
basketball@escaladesports.com
Mailing Address (correspondence only):
Escalade Sports
PO Box 889
Evansville, IN 47706
Please visit our World Wide Web site at:
ON-LINE TROUBLE SHOOTING
ON-LINE PARTS REQUESTS
ADDITIONAL ESCALADE
Escalade
®
Sports products may be manufactured and/or licensed under the following patents:
6419596, 6179733, 5919102, 5071120, 4798381, 4424968, D326128, 7244046
Additional patents may be pending. One or more of the listed patents and/or pending patents may cover specific product.
®
Sports customer service department at:
®
SPORTS PRODUCT INFORMATION
Toll – Free!
Toll – Free!
www.escaladesports.com
TECHNICAL ASSISTANCE
FREQUENTLY ASKED QUESTIONS
MODEL NO.
B2253
GB54ig2.0
BASKETBALL SYSTEM
ITEMS NEEDED (not included)
50 lbs bags of concrete
11-
1-
Post hole digger (optional)
1-
Wheel barrow
1-
Garden hose
1-
Level
1-
Tape Measure
2X4's
6-
50 lbs sand bags
2-
Standard masonry block
1-
1-
9/16", 3/4" & adjustable wrench
1-
Cordless drill & 9/64" drill bit
1-
5/16" socket driver (for cordless drill)
1-
Pair of Safety Glasses
1-
Phillips Screwdriver
Ladder
1-
©
2017 Escalade Sports
2L-7540-01

Advertisement

loading
Need help?

Need help?

Do you have a question about the GOALIATH B2253 and is the answer not in the manual?

Questions and answers

Jill M Mannebach
May 27, 2025

Can I purchase a replacement support bar?

User image 6835f7c54e277
Kayla Hurley
May 7, 2025

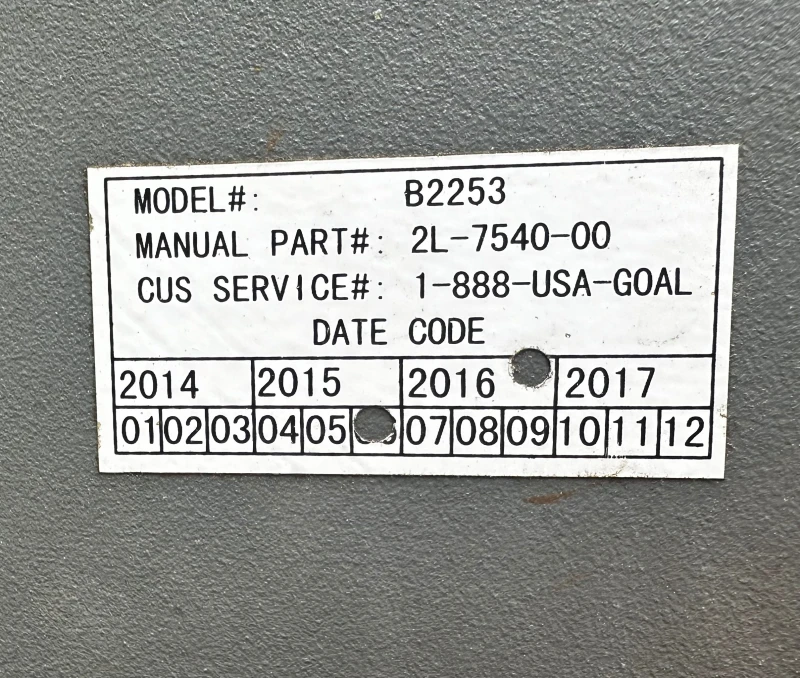

Can I order a replacement backboard for this goal? Our backboard recently shattered and would like to replace. Model information in the attachment.

User image 681b67275abb5

Subscribe to Our Youtube Channel

Summary of Contents for ESCALADE GOALIATH B2253

  • Page 1 Sports products may be manufactured and/or licensed under the following patents: 6419596, 6179733, 5919102, 5071120, 4798381, 4424968, D326128, 7244046 © 2017 Escalade Sports Additional patents may be pending. One or more of the listed patents and/or pending patents may cover specific product.
  • Page 2: Safety Instructions

    SAFETY INSTRUCTIONS FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE. Owner must ensure that all players know and follow these rules for safe operation of the system. WARNING FAILURE TO FOLLOW THESE WARNINGS MAY R E S U LT I N S E R I O U S I N J U R Y A N D / O R PROPERTY DAMAGE.
  • Page 3: Back Side

    WARNING DO NOT DUNK ON THIS UNIT . DO NOT HANG FROM ANY PART OF THIS UNIT , INCLUDING THE BACKBOARD, RIM, SUPPORT BRACES OR NET. 4L-8152-00 (Affixed to Top Post) Bottom of upper pole must cover the above orange portion of this sticker (6”...
  • Page 4 3/8-16” Lock Nut (14 pieces) 3/8 - 16 X 1 3/4 Hex Bolt (4 Pieces) (2 Pieces) 1/2”-13 Lock Nut (1 piece) #10 X 1 (10 Pieces)
  • Page 5 INSTALLATION TIMELINE 1. Prior to pole installation and goal assembly, call utility services for location of underground utility lines before you dig. 2. Vertical main post assembly is a two part process. PART 1 PART 2 Day 1. Post assembly, pour concrete, set post and Day 3.
  • Page 6 POST ASSEMBLY INSTRUCTIONS Before putting any of the poles tubes together, make sure that the orange area of the Warning Sticker on Pole (#2) is 6 inches from the top end. Be sure that the “Back Side” stickers are on the back of the pole. See Figure 3. WARNING: This pole assembly is heavy.
  • Page 7 IMPORTANT 4. Mix concrete per the instructions on concrete bag. Pour into the hole THE FOLLOWING STEPS WILL REQUIRE and stop about 16” from Playing Surface or until you can still see the top AT LEAST THREE CAPABLE ADULTS. of the Masonry block you placed earlier. See Figure 5 and Detail 1. 5.
  • Page 8 Note: Periodically check pole with level to ensure that pole is vertical. 7. Stabilize the pole by using six 2X4’s and placing two 50 lbs. bags of sand on top to keep pole from shifting, periodically check the pole with level to ensure that pole is vertical. See Figure 6.
  • Page 9 GOALIATH ASSEMBLY INSTRUCTIONS (Day 3) IMPORTANT! BE SURE CONCRETE HAS BEEN ALLOWED TO CURE FOR AT LEAST 2 DAYS. Attach Post Ears (#30) to holes near the bottom of Top Figure 7 Post (#3) using two hex bolts (#25) four washers (#18) and two lock nuts (#4).
  • Page 10 IMPORTANT! Nylon washers (#5) adequately space painted parts at all pivot points. Neglecting the use of these washers will result in rusted parts. NOTE: All board arms are made of rectangular tubing. Tightening hardware too tight may damage tubing and make adjustment of system difficult. 14.
  • Page 11 17. Attach of Upper Arms (#6) to Top Pole (#3), as shown Figure 11, using a bolt (#7), two flat washers (#18), two spacers (#8) and one lock nut (#4). Note: Tighten bolts snug but, do not over tighten. Board Arms must pivot freely.
  • Page 12 Figure 13 ATTACHING BA CKBOARD T O BO ARD ARMS REQUIRES A T LEAST THREE CAPABLE ADULTS. 21. With at least two capable people, raise the backboard assembly up and have the third attach Lower Board Arms to lower mounting tubes on backboard using two bolts (#24), two plastic washers (#5), four washers (#18) and two lock nuts (#4).
  • Page 13 Mount Goal Assembly (#28) to Backboard, as shown in Figure 14, using four bolts (#41), four washers (#26), and four locknuts (#4). Tighten fasteners, but leave them loose enough to level rim. 24. Place a level across rim assembly and adjust rim until it is level.
  • Page 14 Raise Backboard to 10 FT. regulation playing height. Measure from top of rim straight down to the playing surface. Using tape - mark the side of the steel actuator (#16) just under the plastic actuator sleeve (#15) at this 10 ft rim height. See Figure 15. Lower backboard all the way down.
  • Page 15 35. Secure Post Pad (#39) to front of pole by wrapping straps around pole and sticking to velcro on opposite side of Pad. Post Pad should cover Post Screws but remain below Warning Label on front of the Pole. See Figure 18. Make sure to repostion Pole Pad if Sliding occurs.
  • Page 16: Limited 5 Year Warranty

    OR OTHER CAUSES NOT ARISING OUT OF DEFECTS IN MATERIAL OR WORKMANSHIP . ® Subject to proper installation and normal Residential use, Escalade Sports warrants, subject to the limitations below, to the original retail purchaser all structural components of the Goaliath ®...
  • Page 17: Maintenance

    GOALIATH CARE INFORMATION - BACKBOARD - Items needed to clean backboard: 100% cotton soft cloth, (only) Glass Cleaner Clean backboard using a 100% Cotton soft cloth and glass cleaner. Clean glass as you would household windows. Strong cleansers will damage backboard and void warranty.
