O W N E R ' S M A N U A L
1. Read this manual carefully before starting assembly. Read each step completely before beginning
each step.
2. Some smaller parts may be shipped inside larger parts. Check inside all parts and cartons
before assembling or ordering parts.
3. Tomake assembly of your basketball system easier, use the Hardware Identifier on page 3
and 4 to identify and sort all fasteners. Check all cartons for kits. All hardware is not
located in one kit.
4. Do not tighten hardware until instructed to do so. If hardware is tightened too soon, mounting
holes may not align and parts may not easily fit together. Leave locknuts slightly loose until you are
instructed to tighten them.
5. An electric screwdriver is helpful in assembly. However, please set at low torque and use caution
because you could overtighten the hardware and strip the screws.
6.
Save this instruction and your proof of purchase (receipt) in the event that the manufacturer
has to be contacted for replacement parts.
Please Do Not Return This Product To The Store!
Contact Escalade Sports customer service department at:
Phone:
1-888-USA-GOAL
Fax:
1-866-873-3536
E-mail:
basketball@escaladesports.com
Mailing Address:
Escalade Sports
PO Box 889
Evansville, IN 47706
Please visit our World Wide Web site at:
ON-LINE TROUBLE SHOOTING
ON-LINE PARTS REQUESTS
ADDITIONAL ESCALADE® SPORTS PRODUCT INFORMATION
Escalade® Sports products may be manufactured and/or licensed under the following patents.
6419596, 6179733, 5919102, 5071120, 4798381, 4424968, D326128
Additional patents may be pending. One or more of the listed patents and/or pending patents may cover specific product.
®
Toll
Free !
Toll
Free !
www.G oalrilla.com
TECHNICAL ASSISTANCE
FREQUENTL Y ASKED QUESTIONS
MODEL NO.
B5002
GS60c

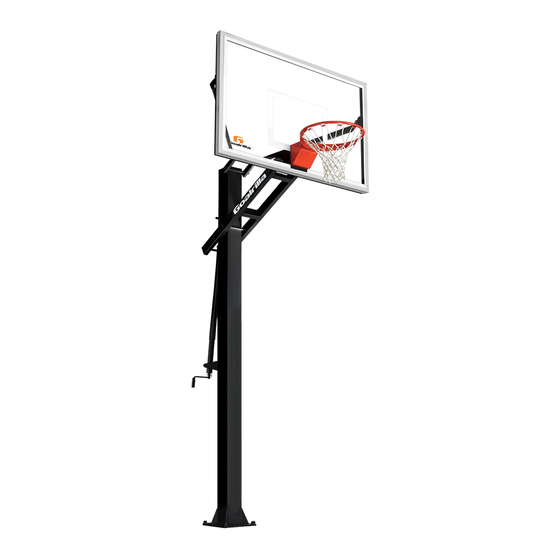

BASKETBALL SYSTEM
2L-7235-03
2018 Escalade Sports
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ESCALADE GOALRILLA GS60c
Summary of Contents for ESCALADE GOALRILLA GS60c
- Page 1 FREQUENTL Y ASKED QUESTIONS ADDITIONAL ESCALADE® SPORTS PRODUCT INFORMATION 2L-7235-03 Escalade® Sports products may be manufactured and/or licensed under the following patents. 6419596, 6179733, 5919102, 5071120, 4798381, 4424968, D326128 2018 Escalade Sports Additional patents may be pending. One or more of the listed patents and/or pending patents may cover specific product.
-
Page 3: Hardware Identifier
HARDWARE IDENTIFIER 1/2” X 1-1/4” Dia. Plastic-Washer (4 Pieces) / 1 2” -13 x 1” / 1 2” Flat Washer Hex Bolt (2 Pieces) (2 Pieces) Pull Pin (1 Piece) 1/2” Split Lock Washer (2 Pieces) (Actuator) Hardware located in 4A-7081-00 box 1/2”-13 x 9”... - Page 4 HARDWARE IDENTIFIER 3/8” X 19mm Flat Washer (4 pieces) Hardware required for rim assembly 1/2”-13 X 1 3/4 Hex Bolt (2 Pieces) 3/8” X 19mm Flat Washer (4 pieces) (8 pieces) 1/2”-13 x 10” 1/2”-13 x 10” Hex Bolt Hex Bolt (3 Pieces) (3 Pieces) 3/8”-16 X 1-1/4”...
- Page 5 INSTALLATION TIMELINE Prior to anchor system and goal assembly, call utility services for location of underground utility lines before you dig. Vertical main post assembly is a two part process. PART 1 PART 2 Day 1. Complete Anchor System Installation Instructions. Day 5.
- Page 6 GOALRILLA ASSEMBL Y INSTRUCTIONS (Day 5) TOOLS REQUIRED FOR THE FOLLOWING STEPS 1 - 15/16" open end wrench 1 - Tape Measure 1 - 15/16” socket and ratchet (optional) 1 - Rubber Mallet 1 - 9/16” Deep Well Socket & Ratchet 1 - Set of Padded Saw Horses 1 - Ladder 1 - 3/4”...
- Page 7 NOTE: It is important for the installer to understand the NOTE: All board arms are made of rectangular tubing. necessity of the Plastic washers (#5) provided. These Tightening hardware too tight may damage tubing and washers adequately space painted parts at all pivot points. make adjustment of system difficult.
- Page 8 Attach Upper Arms (#6L & 6R) to pole (#2), as shown in F igure 7. Using a bolt (#8), two Flat Washers (#3), four plastic washers (#5) and hex nut (#49). Note: Tighten bolts snug but, do not over tighten. Board Arms must pivot freely.
- Page 9 Locate hardware needed to mount pole to anchor bolts. You will need, eight flat washers (#37), four lock washers (#36), four hex nuts (#35) and four thread protectors (#34). NOTE: Do not remove the nuts #35 you installed in step 2 (pg. 5). PLACING THE POST ON THE ANCHOR SYSTEM REQUIRES AT LEAST FOUR CAPABLE ADULTS.
- Page 10 13A. Slide Actuator Handle (#42) onto shaft on the back of Actuator (#16). Line up hole in shaft with hole in Actuator Handle and insert Pull Pin (#41) to secure. 13B. Toaid in the assembly of the backboard lower the lower board arm (#11), by turning the Actuator Crank, until the lower arm makes contact with the Safety Stop.
- Page 11 Note: If the Step Bushing (#22) and Board Bushing (#33) are not already pre-installed follow step 14 and 15. Insert a Two Way Step Bushing (#22) in to the inside of bracket on each side of the Backboard (#23) as shown in Detail A.
- Page 12 INSTALL RIM EXACTLY AS SHOWN. FAILURE TO DO SO COULD DAMAGE GLASS. Mount Goal Assembly (#28) to Backboard as shown in Figure 12, using four bolts (#29), washer (#26) and four nuts (#24). Tighten Fasteners but leave loose enough to level rim. Place a level across rim assembly and adjust rim until it is level.
- Page 13 Raise Backboard to 10 FT. regulation playing height. Measure from top of rim straight down to the playing surface. Using tape - mark the side of the steel actuator (#16) just under the plastic actuator sleeve (#15) at this 10 ft rim height. See Figure 14. Lower backboard all the way down.
-
Page 14: Care And Maintenance
CARE AND MAINTENANCE BACKBOARD CARE AND MAINTENANCE Items needed to clean backboard: 100% cotton soft cloth, (only) Glass cleaner Clean backboard using only a 100% Cotton soft cloth and glass cleaner . Clean glass as you would clean household windows. Strong cleansers will damage backboard and void warranty . -
Page 15: Limited Lifetime Warranty
® Subject to proper installation and normal Residential use, Escalade Sports warrants, subject to the limitations below, to the original retail purchaser all structural components of the Goalrilla™ System to be free of defects in material and workmanship for the duration of ownership by the original retail purchaser. - Page 16 B5002 PARTS LIST Key# Part # Description Qty . NOT USED 1A-7664-01 Post Assembly 2B-6093-10 1/2” Flat Washer NOT USED 3M-6245-01 1/2 X 1-1/4” Plastic Washer 1A-7665-00 Upper Board Arm (Right Hand) 1A-7665-10 Upper Board Arm (Left Hand) 1B-6787-10 1/2-13 X 9" Hex Bolt-Grade 5 1B-6222-10 1/2-13 X 10"...
- Page 17 2L-7235-03...
