VERSION # 20-03- 13
1 / 8
MODEL #
CM3795AC-2PK
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America Leslie CM3795AC-2PK
Summary of Contents for Furniture of America Leslie CM3795AC-2PK

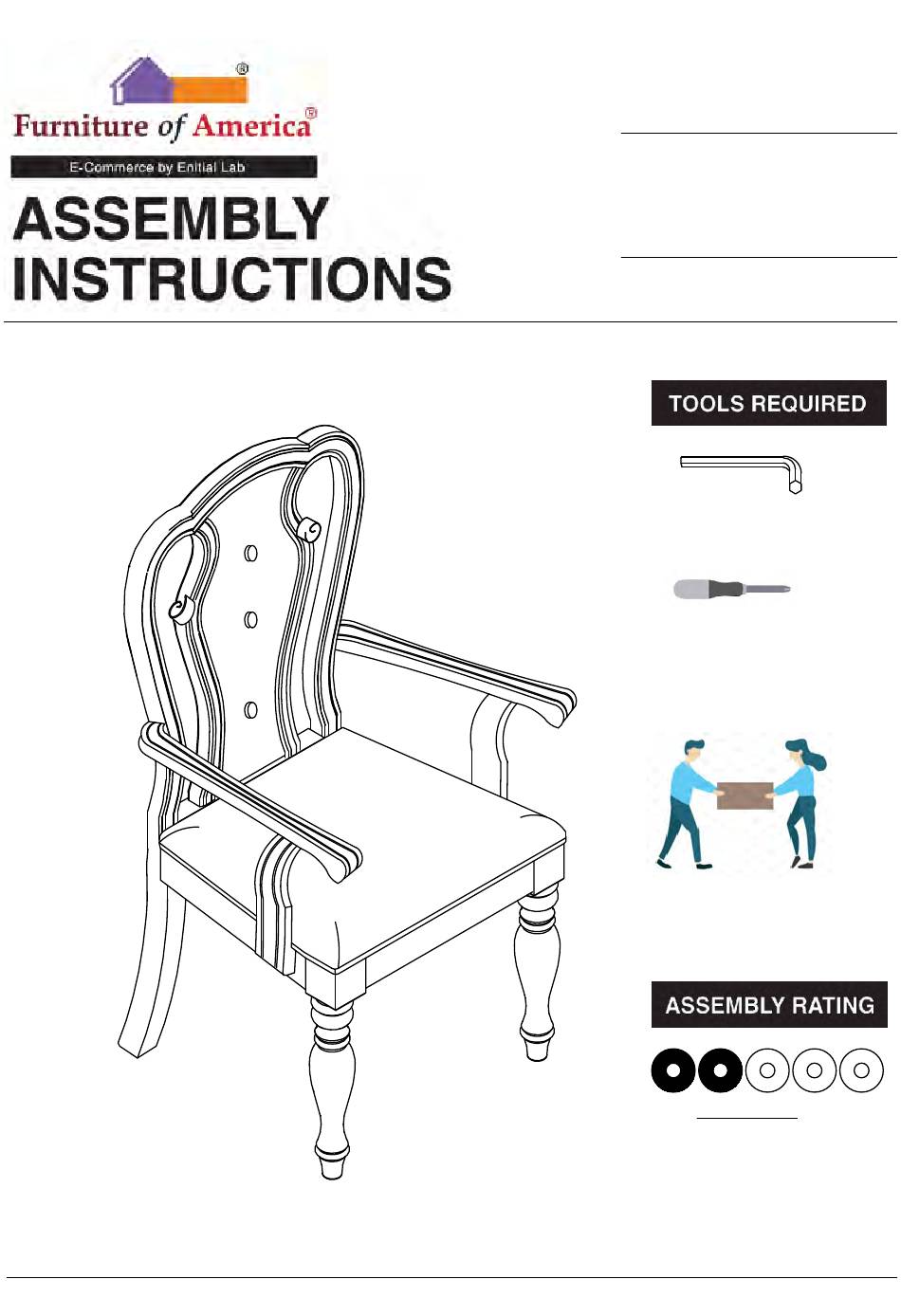

- Page 1 MODEL # CM3795AC-2PK Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 8...
- Page 5 ARM CHAIR CM3795AC-2PK #1 1pc x 2 #2 1pc x 2 #3 2pcs x 2 #4 2pcs x 2 Arm (R&L) Seat Cushion Front Leg Chair Back #A 4pcs x 2 #B 4pcs x 2 #C 4pcs x 2 #D 4pcs x 2 Short Bolt Medium Bolt Lock Washer Ø1/4"...
-
Page 6: Exploded View
ASSEMBLY INSTRUCTIONS Exploded View Align seat (#2) to chair back (#1), then secure by using bolts (#A) with washers Part #1 x1pc (#B,C). Part #2 x1pc Hardware #A x2pcs Hardware #B x2pcs Hardware #C x2pcs 6 / 8... - Page 7 ASSEMBLY INSTRUCTIONS Secure corner holes of the seat to chair back by using bolts (#G) with Hardware #E x4pcs washers (#F,E). Hardware #F x4pcs Hardware #G x4pcs Align front legs to the seat, then secure by using bolts (#D) with washers Part #3 x2pcs (#E,F).
- Page 8 ASSEMBLY INSTRUCTIONS Secure arms (#4R/L) to chair back by using screws (#H). Part #4 x 2pcs Hardware #A x 2pcs Hardware #B x 2pcs Hardware #C x 2pcs Hardware #H x 2pcs Secure arms (#4R/L) to seat by using bolts (#A) with washers (#B,C).
