VERSION
# 20-02-10
1 / 11
MODEL #
CM3792PT-3PK
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM3792PT-3PK
Summary of Contents for Furniture of America CM3792PT-3PK

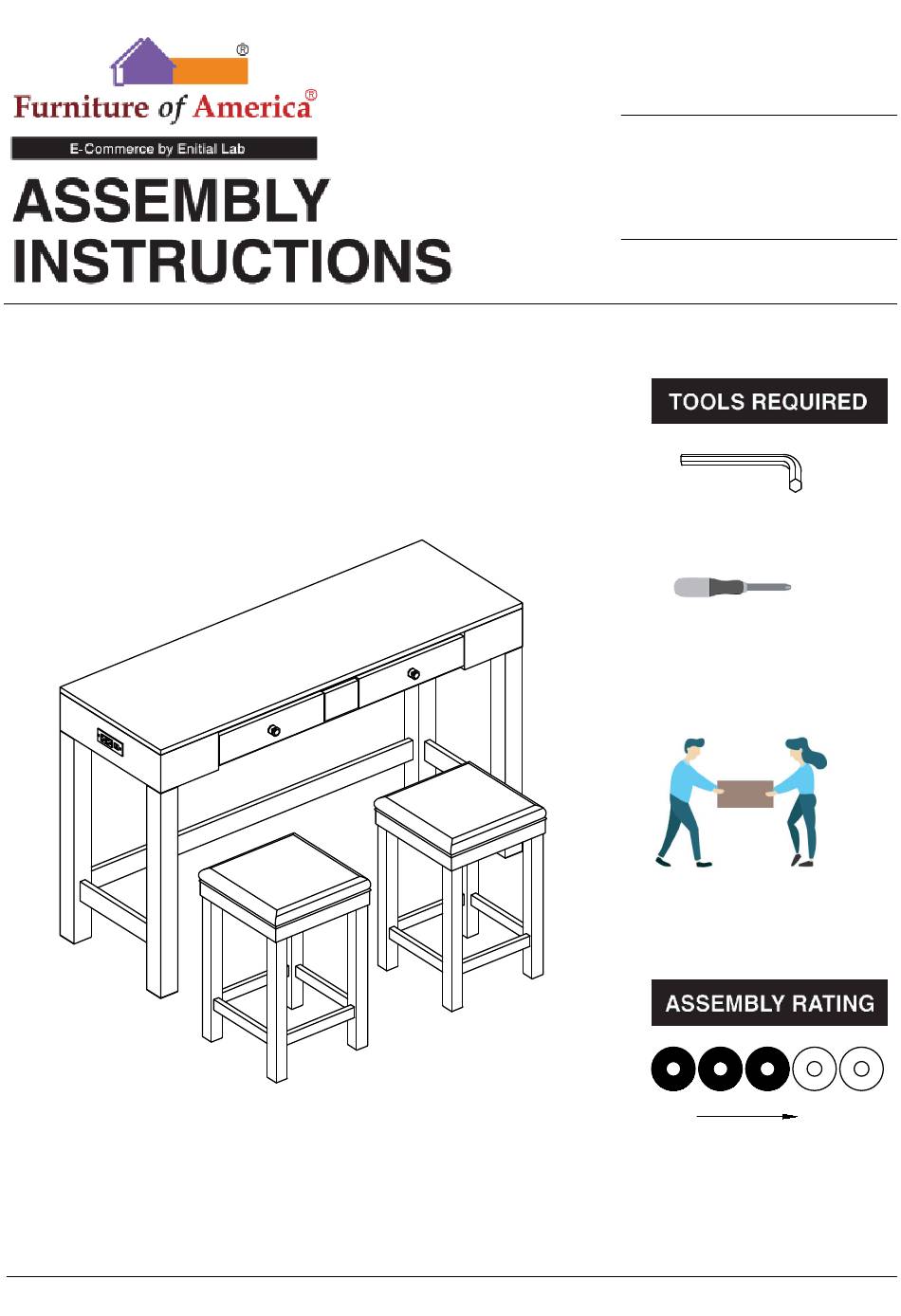

- Page 1 MODEL # CM3792PT-3PK Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 1 1...
- Page 5 TABLE CM3792PT-3PK #1 1pc #2 2pcs #3 1pc #4 1pc Back Leg Left front leg Right front Leg Table Top #5 1pc #6 2pcs Long Stretcher Short Stretcher #A 8pcs #D 6pcs #B 8pcs #C 8pcs Lock Washer Ø5/16" Bolt Ø5/16"x2"...
-
Page 6: Exploded View
Exploded View 6 / 11... - Page 7 ASSEMBLY INSTRUCTIONS Part #1 x1pc Part #2 x2pcs Part #5 x1pc Align legs (#2) with stretchers (#5,6) to the desk (#1), then secure legs (#2) to Part #6 x2pcs desk (#1) by using bolts (#A) with Hardware #A x4pcs washers (#B,C). Hardware #B x4pcs Hardware...
- Page 8 ASSEMBLY INSTRUCTIONS Secure stretchers (#5,6) to the legs by using screws (#D). Hardware #D x6pcs Reattach drawer knobs to the front of the drawer 8 / 11...
- Page 9 STOOL CM3792PT-3PK #3 4pcs x2 #1 1pc x2 #2 4pcs x2 Stretcher Seat Frame #A 8pcs x2 #D 8pcs x2 #B 8pcs x2 #C 8pcs x2 Bolt Ø1/4"x1-3/4" Screw #4x12mm Flat Washer Ø1/4" Lock Washer Ø1/4" #E 1pc x2 Allen Wrench 4mm...
- Page 10 Exploded View 10 / 11...
- Page 11 ASSEMBLY INSTRUCTIONS Part #1 x1pc Part #2 x4pcs Part #3 x4pcs Hardware #A x8pcs Hardware #B x8pcs Hardware #C x8pcs Hardware #D x8pcs Align legs (#2) with stretchers (#3) to the seat (#1), then secure by using bolts (#A) with washers (#B,C). Secure stretchers to legs by using screws (#D).
