VERSION # 20-06-15
1 / 9

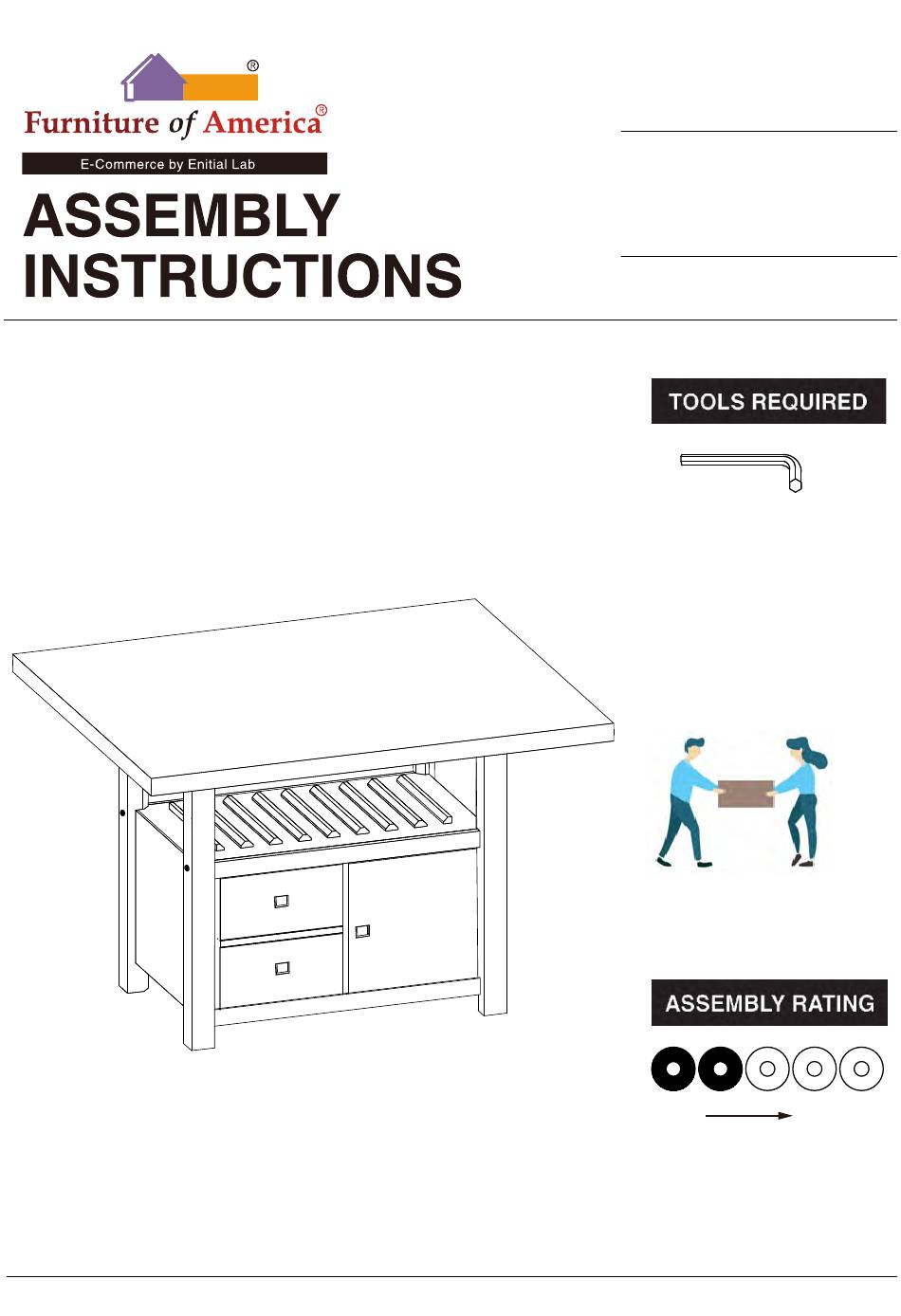

MODEL #
CM3794PT
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM3794PT
Summary of Contents for Furniture of America CM3794PT
- Page 1 MODEL # CM3794PT Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 9...
- Page 5 TABLE CM3794PT #1 1pc #2 4pcs #3 2pcs Table Top Table Leg Slat #4 1pc Cube #C 20pc #A 4pcs #B 24pcs Bolt Ø5/16" x 2-1/2" Lock Washer Ø5/16" Flat Washer Ø5/16" #E 4pcs #F 1pc #D 16pcs Allen Wrench 4mm Bolt Ø5/16"...
- Page 6 CM3794PT is packed in 2 cases Carton Disignation Part Hardware #A x4pcs Table Top #B x24pcs CM3794PT-1 #C x20pcs Table Leg R/L #D x16pcs #E x4pcs Slat #F 1pc CM3794PT-2 Cube 6 / 9...
-
Page 7: Exploded View
ASSEMBLY INSTRUCTIONS Exploded View #2 L #2 L #2 R Part #2 x 4pcs Align legs (#2) to cube (#4), then secure Part #4 x 1pc by using bolts (#A) with washers (#B,C). Hardware #A x4pcs Hardware #B x4pcs Hardware #C x4pcs 7 / 9... - Page 8 ASSEMBLY INSTRUCTIONS Secure legs to cube by using bolts (#E) with Hardware #E x4pcs washers (#B). Hardware #B x4pcs Part #3 x2pcs Hardware #B x4pcs Hardware #C x4pcs Hardware #D x4pcs Align slats (#3) to the top of the legs, then secure by using bolts (#D) with washers (#B,C).
- Page 9 ASSEMBLY INSTRUCTIONS Part #1 x1pc Align base to the top (#1), then secure Hardware #D x12pcs by using bolts (#D) with washers (#B,C). Hardware #B x12pcs Hardware #C x12pcs 9 / 9...
