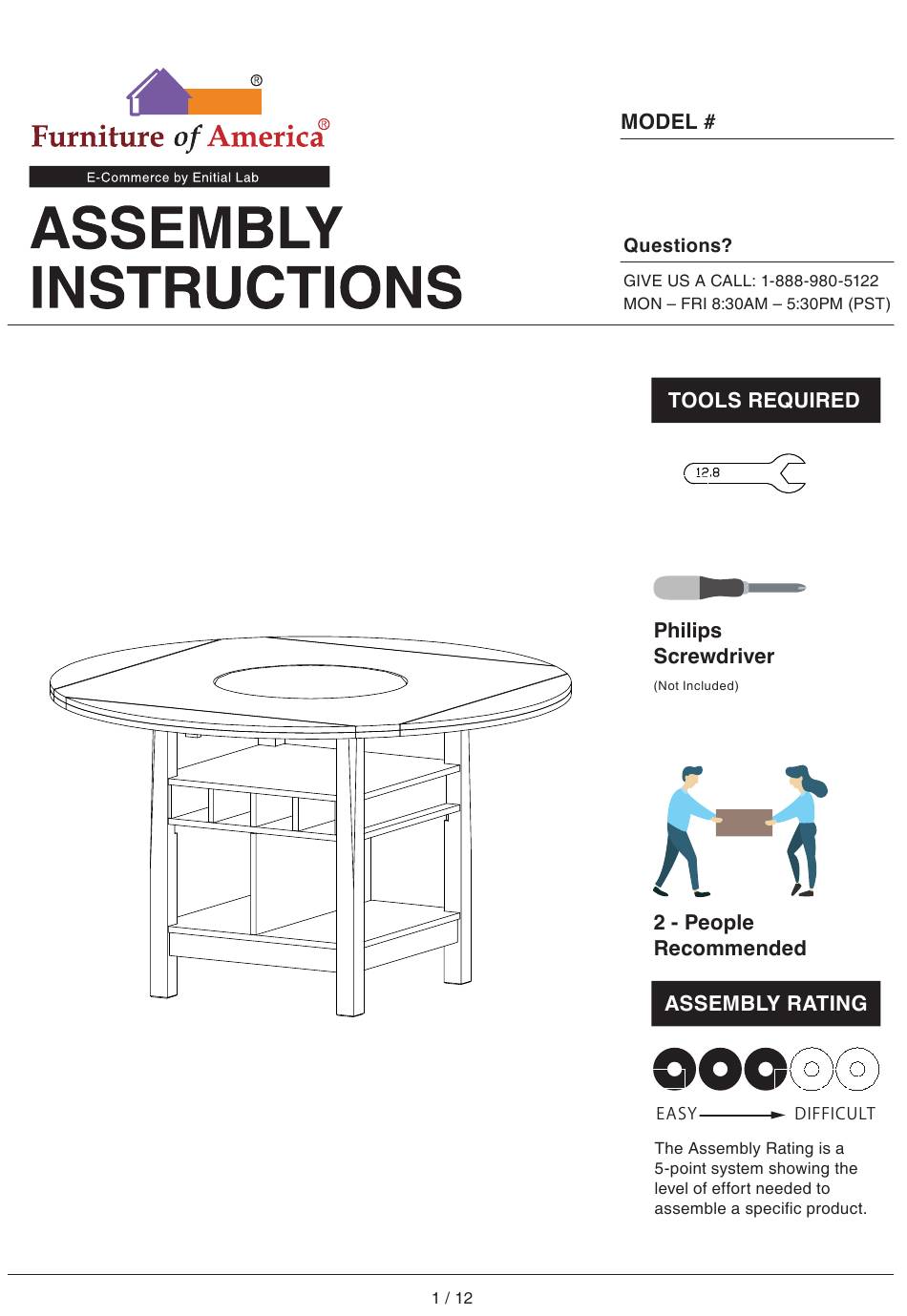

- Page 1 CM3733-RPT Spanner (Included) VERSION # 21-01-28...
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 1 2...
- Page 5 ROUND COUNTER HEIGHT TABLE CM3733-RPT #1 1pc #2 4pcs #3 1pc #4 1pc #5 1pc Table Top Table Leg Table Base Partition Panel Wine Rack Bottom Panel #6 2pcs #7 1pc #8 3pcs #9 1pc #10 1pc Wine Rack Wine Rack...
- Page 7 ASSEMBLY INSTRUCTIONS Part x4pcs Hardware x4pcs Hardware x4pcs Align bracket (#F) to the legs (#2), then secure by using screws (#E). Follow marking. Part x1pc Hardware x4pcs Attach dowels (#G) to partition panel (#4). 7 / 12...
- Page 8 ASSEMBLY INSTRUCTIONS Align legs (#2) to the table base (#3), then secure by using bolts (#A) with washers (#B,C). Part x1pc Hardware x4pcs Hardware x4pcs Hardware x4pcs Push the leg followed the arrow while tighten the bolt. Align partition panel (#4) to the base.
- Page 9 ASSEMBLY INSTRUCTIONS Align wine rack bottom panel (#5) to the unit. Holes Part x1pc Hardware x4pcs Align wine rack panels (#6,7,8) together to the unit. Part x2pcs Part x1pc Part x3pcs 9 / 12...
- Page 10 ASSEMBLY INSTRUCTIONS Part x1pc Align shelf (#9) to unit. Align top (#1) to the unit, then secure by using bolts (#A) with washers (#B,C). Part x1pc Hardware x4pcs Hardware x4pcs Hardware x4pcs 10 / 12...
- Page 11 ASSEMBLY INSTRUCTIONS Part x1pc Removable Lazy Susan To remove the lazy susan (for cleaning purpose), push from the hole underneath of the mounted board. Support bar Push the Pull the support support bar bar forward to inward to stand up the store the leaf.
- Page 12 ASSEMBLY INSTRUCTIONS 12 / 12...
