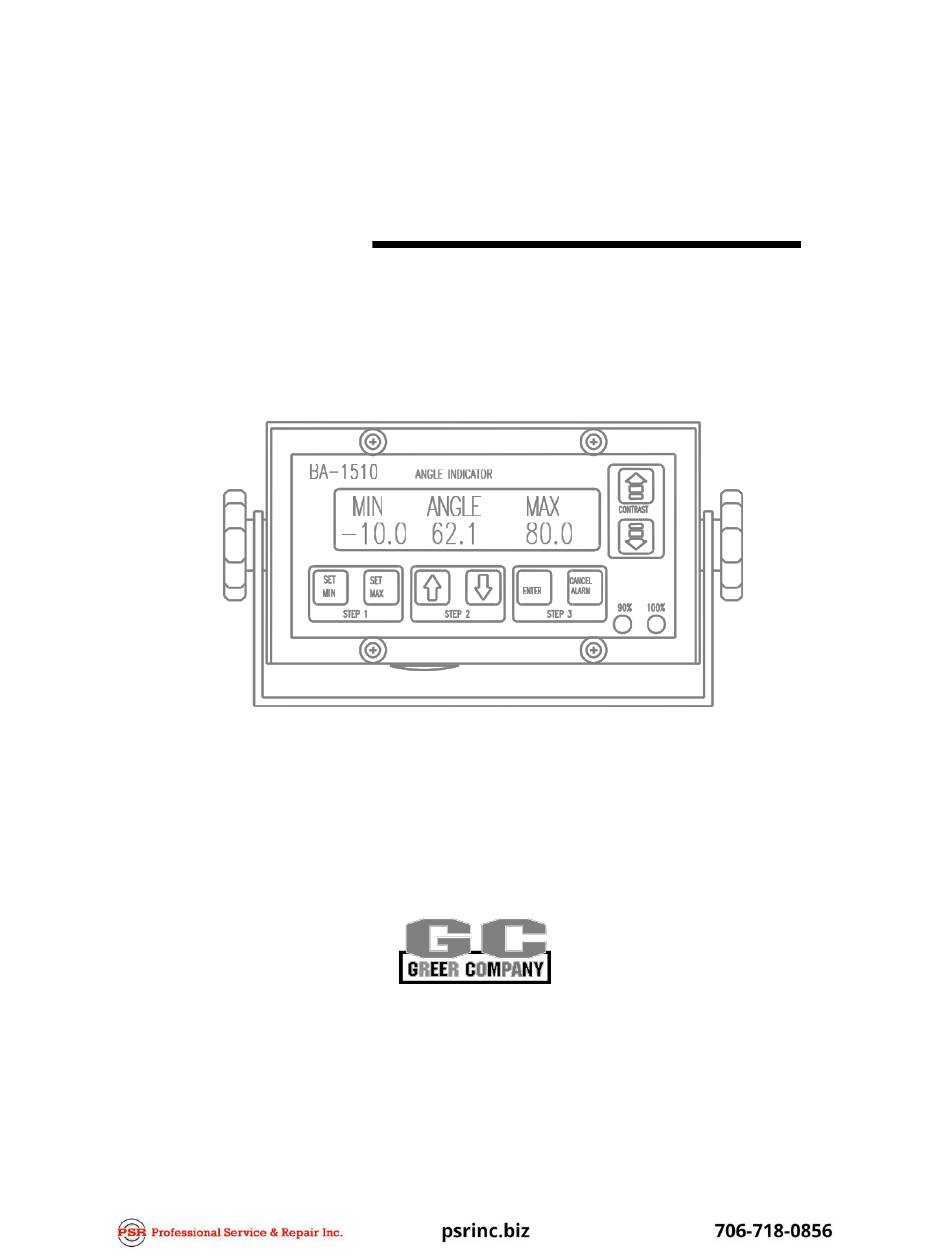

- Page 1 GREER COMPANY Crane Systems ™ BA 1510 ANGLE INDICATOR OPERATOR'S MANUAL HYDRAULIC & LATTICE CRANE...
- Page 2 GREER COMPANY Crane Systems WARNING ™ The BA-1510 Angle Indicator is designed to aid the fully trained and experienced crane operator in safe crane setup and operation involving boom angles. This manual provides ™ the operator with instructions for using the BA-1510 System.
- Page 3 GREER COMPANY Crane Systems ™ BA-1510 ANGLE INDICATOR OPERATOR'S MANUAL HYDRAULIC & LATTICE CRANE BA-1510™ ANGLE INDICATOR ..................5 SETTING AN ANGLE LIMIT LIMIT ................5 REMOVING AN ANGLE LIMIT ................5 THE ALARMS ........................ 6 PRE-ALARMS ......................6 ALARMS ........................ 6 MOTION CUTS ......................
- Page 4 Range: –9.9 to 99.9º Range: –9.9 to 99.9º press to set/cancel limits yellow and red warning lamps The BA-1510™ Angle Indicator (meter) BA-1510™ Operator's Manual GREER COMPANY Tel: (714) 259-9702 Fax: (714) 259-7626 PN W340002 Rev A 08/99...
- Page 5 GREER COMPANY Crane Systems THE BA-1510™ ANGLE INDICATOR (METER) The BA-1510™ Angle Indicator (meter) is used during setup and operation of the crane to display the crane boom angle and to set and display crane boom minimum and maximum angle limits. The System provides visual and audible warning alerts if the set limit(s) are exceeded.
- Page 6 GREER COMPANY Crane Systems THE ALARMS PRE-ALARMS The horn beeps at 90% of the working range of the boom angle IF the display identifies TWO angle limits. IF only ONE angle limit is identified, the pre-alarm activates 5° BEFORE that limit. Between the pre-alarm point and the alarm point, the limit name flashes "!!!"...
- Page 7 GREER COMPANY Crane Systems MOTION CUTS: (Optional) WHEN INSTALLED, MOTION CUTS WILL HALT HOIST UP, BOOM DOWN, AND TELESCOPE OUT BOOM ACTION DURING A TWO BLOCK CONDITION. ACTIVATION OF THE MIN ANGLE ALARM HALTS BOOM DOWN, UNLESS THE ALARM WAS PURCHASED AS "AUDIOVISUAL ALARMS ONLY."...
-
Page 8: Special Functions
GREER COMPANY Crane Systems SPECIAL FUNCTIONS ALARM TEST WHILE NOT IN ANY PROCEDURE, PRESS AND HOLD ENTER TO SOUND THE HORN, LIGHT UP THE LED'S, DISPLAY "ALARM TEST," AND ACTIVATE ALL INSTALLED MOTION CUTS. RIGGING MODE PRESS AND HOLD THE DOWN ARROW; THEN PRESS ENTER TO ACTIVATE THE RIGGING MODE WHEN WORKING ON THE CRANE. - Page 9 GREER COMPANY Crane Systems FACTORY RECOMMENDED SERVICE PREVENTIVE MEASURES FOR GREER INSTRUMENTATION DAILY OR EVERY 8 HOURS OF OPERATION EXERCISE THE METER BY ENTERING DIFFERENT VALUES IN THE DISPLAY, SUCH AS HIGH OR LOW ALARMS, AS APPROPRIATE TO THE METER USED. PRESS ENTER TO TEST THE HORN, WARNING LIGHTS, AND MOTION CUTOFF SIGNAL (IF MOTION CUT OPERATION IS INSTALLED).
- Page 10 GREER COMPANY Crane Systems CHECK ALL THE SENSOR HARDWARE FOR LOOSE CLAMPS, FITTINGS, BOLTS OR NUTS, ETC. ANNUALLY OR EVERY 1000 HOURS OF OPERATION UNDO THE CABLE CONNECTORS IN THE SYSTEM; INSPECT AND CLEAN THESE CONNECTORS. GENEROUSLY REPACK EACH CONNECTOR WITH DOW CORNING #111 SILICON GREASE OR A COMPARABLE SUBSTITUTE.
