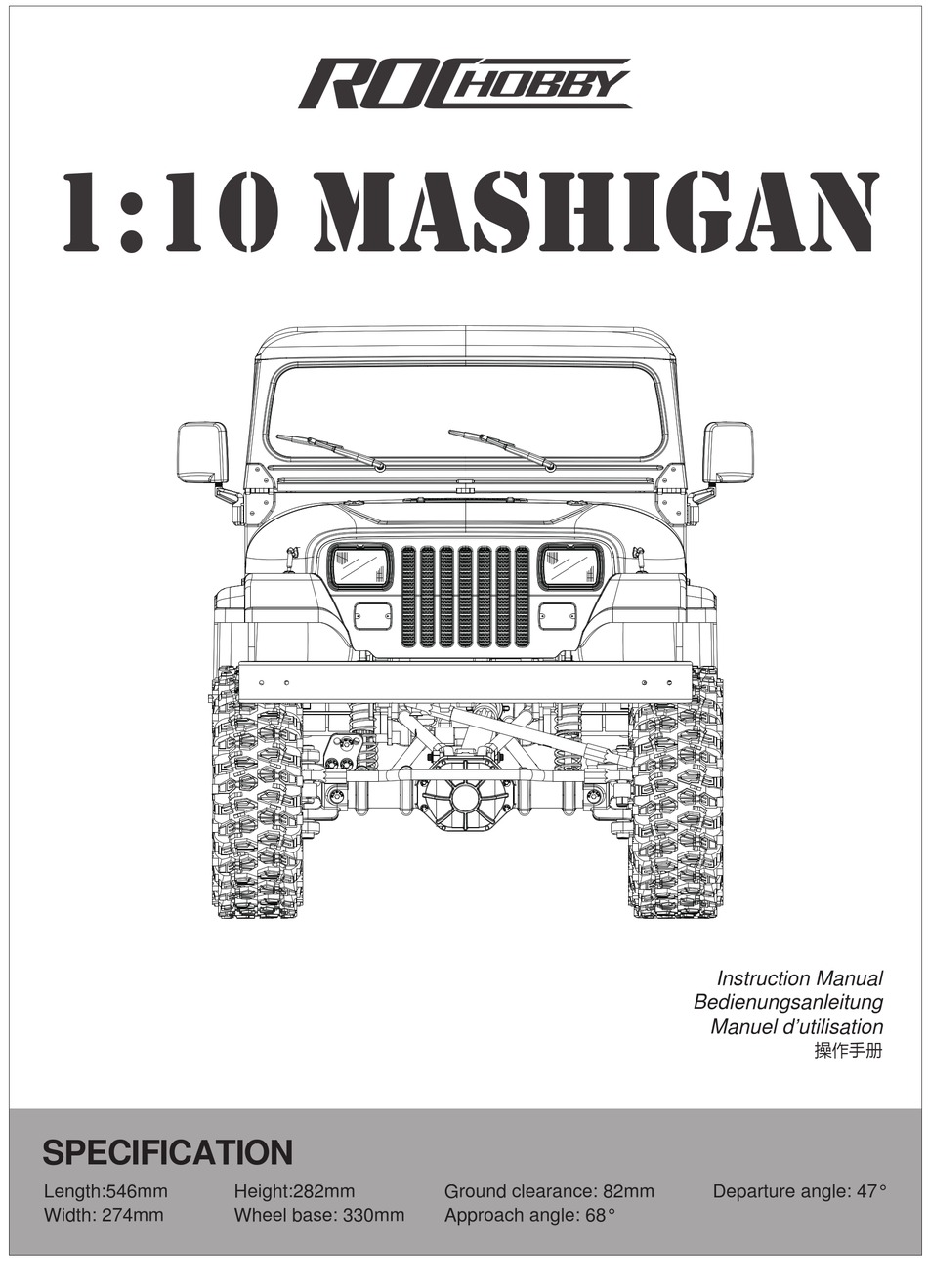

1:10 mashigan
SPECIFICATION
Length:546mm
Width: 274mm
Height:282mm
Wheel base: 330mm
Ground clearance: 82mm
Approach angle: 68°
Instruction Manual
Bedienungsanleitung
Manuel d'utilisation
操作手册
Departure angle: 47°

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1:10 Mashigan and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Roc Hobby 1:10 Mashigan

Summary of Contents for Roc Hobby 1:10 Mashigan

  • Page 1 1:10 mashigan Instruction Manual Bedienungsanleitung Manuel d’utilisation 操作手册 SPECIFICATION Length:546mm Height:282mm Ground clearance: 82mm Departure angle: 47° Width: 274mm Wheel base: 330mm Approach angle: 68°...

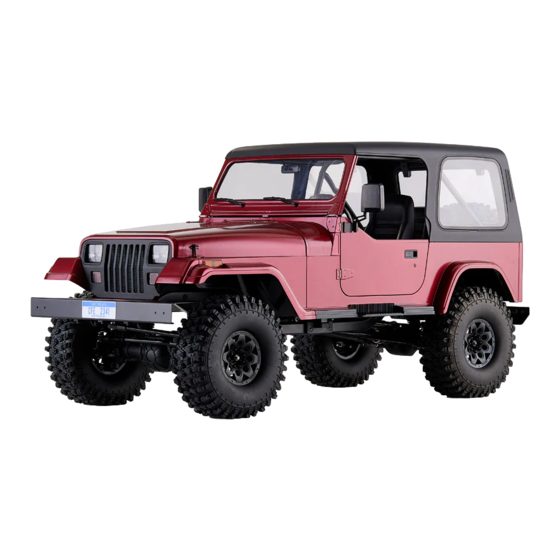

  • Page 3 first-generation model adopted a similar design as early as 36 years ago. And I'm never going to tell you that this 1:10 MASHIGAN model can remove the entire roof to reveal a full interior. The windshield can be tipped forward and transformed into a fully open top. The super soft rubber seat allows the figure to have a more comfortable sitting posture.
  • Page 4 Transmitter intruction The FS-G4P is a simple 4 channel transmitter using the latest AFHDS 2.4GHz ATN frequency hopping technol - ogy. Designed to be sleek, passionate and powerful for entry level enthusiasts. Panel Flip Cover Steering Trim (ST.TRIM +) Steering Reverse Switch (ST.REV) Throttle Trim (TH.TRIM +) Power indicator LED (R.
  • Page 5 Getting Started Before operation, install the battery and connect the system as instructed below. Transmitter Battery Installation Only use specified battery (X4 AA batteries). Danger Do not open, disassemble, or attempt to repair the battery. Danger Danger Do not crush/puncture the battery, or short the external contacts. Do not expose to excessive heat or liquids.
  • Page 6 Applicable to the FS-G4P transmitter and the FR-R4P receiver. Different receivers have different bind procedures. For more information visit the ROC Hobby website for manuals and other related information. Product information is updated regularly, please visit our website for more information.
  • Page 7 2、 Channel Reverse This function is used to adjust each channels direction of movement in relation to it’s input. The ST.REV / TH.REV switches are the reverse buttons for CH1 and CH2. If the switch is up it indicates reverse, and the down indicates normal. 3、Trims The ST.TRIM is the trims for CH1 (steering),and can be multiplexed as trims of CH3 and CH4.
  • Page 8 Function settings: 1. Turn on the transmitter and make sure it is connected to the receiver. 2. Hold the control surface at the desired failsafe position. 3. Press and hold the bind button for 3 seconds, if the G.LED starts flashes for 2 seconds, indicating that the settings are successful.

  • Page 9: Receiver Overview

    Receiver overview Antenna To ensure the best signal quality make sure that the antenna is mounted perpendicular to the Note model body in an upright position. 1、Receiver specifications FS-R4P Product Model FS-R4P PWM channel 2-3S 锂电或 5-9芯镍氢电 2.4GHz 2.4GHz Protocol 540或...
  • Page 10 Throttle stick position Neutral point Top point of forward direction Top point of backward direction WP-1040-BRUSHED Model WP-1040-BRUSHED-Crawler& Boat * Forward: 40A / 180A Cont. / Burst Current Backward: 20A / 90A Input 2-3S Lipo, 5-9 Cells NiMH 1:10 on-road, off-road Buggy, Truggy, SCT Cars Applicable 1:10 Crawler, Tank &Boat 540 or 550 size motor ≥12T...
  • Page 11 Trouble Possible Reason Solution After power on, motor can’t work, no The ESC doesn’t get its working Check the battery wires connection voltage; Connections between sound is emitted, and LED is off. or replace the defective connectors. battery pack and ESC are broken. Switch is damaged.

  • Page 12: Operating The Vehicle

    Operating the vehicle Step 1: turn on the transmitter, the headlamp of the transmitter will flash and enter the frequency matching mode. Step 2: turn on the receiver switch, the headlight will flash and enter the frequency matching mode. Step 3: when the transmitter and receiver are successful in frequency up, the front lights of the transmitter will be on for a long time, and the front lights of the vehicle will be off.

  • Page 13: Appendix 1 Fcc Statement

    1. If it is not in use for a long time, unplug and take off the battery to prevent battery leakage. 2. The battery needs to be disconnected and take off from vehicle before it can be charged NOTE 3. Do not open, disassemble, or attempt to repair the battery. Battery CE Warning The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all...

  • Page 14: Declaration Of Conformity (Doc)

    • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
  • Page 15 C1011 Main Gear Box Set C1418 Screw Nut Set C1010 Transmission Shaft Assembly C1419 Pin Lock Set Transmission Gear Box Assembly Bearing Set C1391 C1420 C1021 12mm Wheel Hex Set C1421 Slipper Spring C1392 Climbing Tyres C1422 Slipper Pad C1393 Climbing Wheels C1423 Spur Gear 42t 0.6...
  • Page 16 (EN) FRONT OIL SHOCK ABSORBERS ASSEMBLY(2pcs) (CN) 前避震器总成(一对) C1396 (EN) REAR OIL SHOCK ABSORBERS ASSEMBLY(2pcs) (CN) 后避震器总成(一对) C1397...
  • Page 17 (EN) SEMI-FINISHED FRAME SET A (CN) 车架半成品A组 C1011 C1438 C1438 C1438 C1438 C1438 C1009 C1009 C1399...
  • Page 19 (EN) SEMI-FINISHED FRAME SET B (CN) 车架半成品B组 C1438 C1406 C1010 C1438 C1009 C1427 C1418 C1394 C1438...
  • Page 20 C1407 C1438 C1009 C1418 C1438 C1400 C1427 C1427 C1010...
  • Page 21 (EN) FINISHED FRAME SET (CN) 车架成品组 C1438 C1392 C1418 C1397 C1438 C1424 C1009 C1396...
  • Page 22 C1009 C1397 C1424 C1438 C1438 C1396 C1009 C1397 C1009 C1418 C1392...
  • Page 23 (EN) SEMI-FINISHED HARD BODY SET (CN) 车壳半成品组 C1437 C1438 C1414 C1438 C1438 C1434 C1412 C1409 C1414 C1433 C1415 C1433 C1438 C1415 C1433 C1409...
  • Page 24 C1405 C1434 C1438 C1434 C1412 C1410 C1409 C1434 C1433 C1438 C1432 C1434 C1412 C1433 C1409 C1438...
  • Page 25 (EN) FINISHED HARD BODY SET (CN) 车壳成品组 C1403 C1396 C1435 C1438 C1403 C1436 C1438 C1396 C1435 C1416 C1438 C1408 C1416 C1404 C1435 C1403 C1438 C1403 C1438 C1392 C1438 C1417...
  • Page 26 (EN) TRANSMISSION SHAFT ASSEMBLY (CN) 传动轴组 C1391 C1438 C1391 C1391 C1010 C1391 (EN) MAIN GEAR BOX ASSEMBLY (CN) 驱动牙箱组 C1011 C1011 C1011 C1011 C1438 C1080 C1438 C1011 C1438 C1011 C1011 C1438 C1011...
  • Page 27 (EN) REAR AXLE ASSEMBLY (CN) 后桥组 C1400 C1402 C1400 C1438 C1438 C1400 C1438...
  • Page 28 C1400 C1400 C1438 C1438 C1400 C1402 C1400 C1438...
  • Page 29 (EN) FRONT AXLE ASSEMBLY (CN) 前桥组 C1394 C1438 C1394 C1394 C1438 C1438 C1394 C1394 C1394 C1438 C1438...
  • Page 30 C1438 C1394 C1438 C1394 C1394 C1438 C1394 C1394 C1394...
  • Page 31 (EN) REAR SEAT GROUP (CN) 后座椅组 C1405 C1438 (EN) FRONT SEAT GROUP (CN) 前座椅组 C1405 C1438...
  • Page 32 (EN) LEFT WINDOWS SET (CN) 左车门组 C1434 C1438 C1434 C1408 C1438 C1434 C1434 (EN) RIGHT WINDOWS SET (CN) 右车门组 C1408 C1434 C1438 C1434 C1438 C1434 C1438 C1434...
  • Page 33 (EN) DASHBOARD GROUP (CN) 仪表盘组 C1413 C1438 C1438 C1413 C1437 C1413 C1438 (EN) TRANSMISSION GEAR BOX ASSEMBLY (CN) 中传动牙箱组 C1010 C1391 C1438 C1391 C1010 C1391 C1391 C1438...
  • Page 34 (EN) VEHICLE GROUP (CN) 整车产品组 C1432 C1438 C1438...
  • Page 35 MADE IN CHINA...
