Summary of Contents for Roc Hobby MXS 3D V2

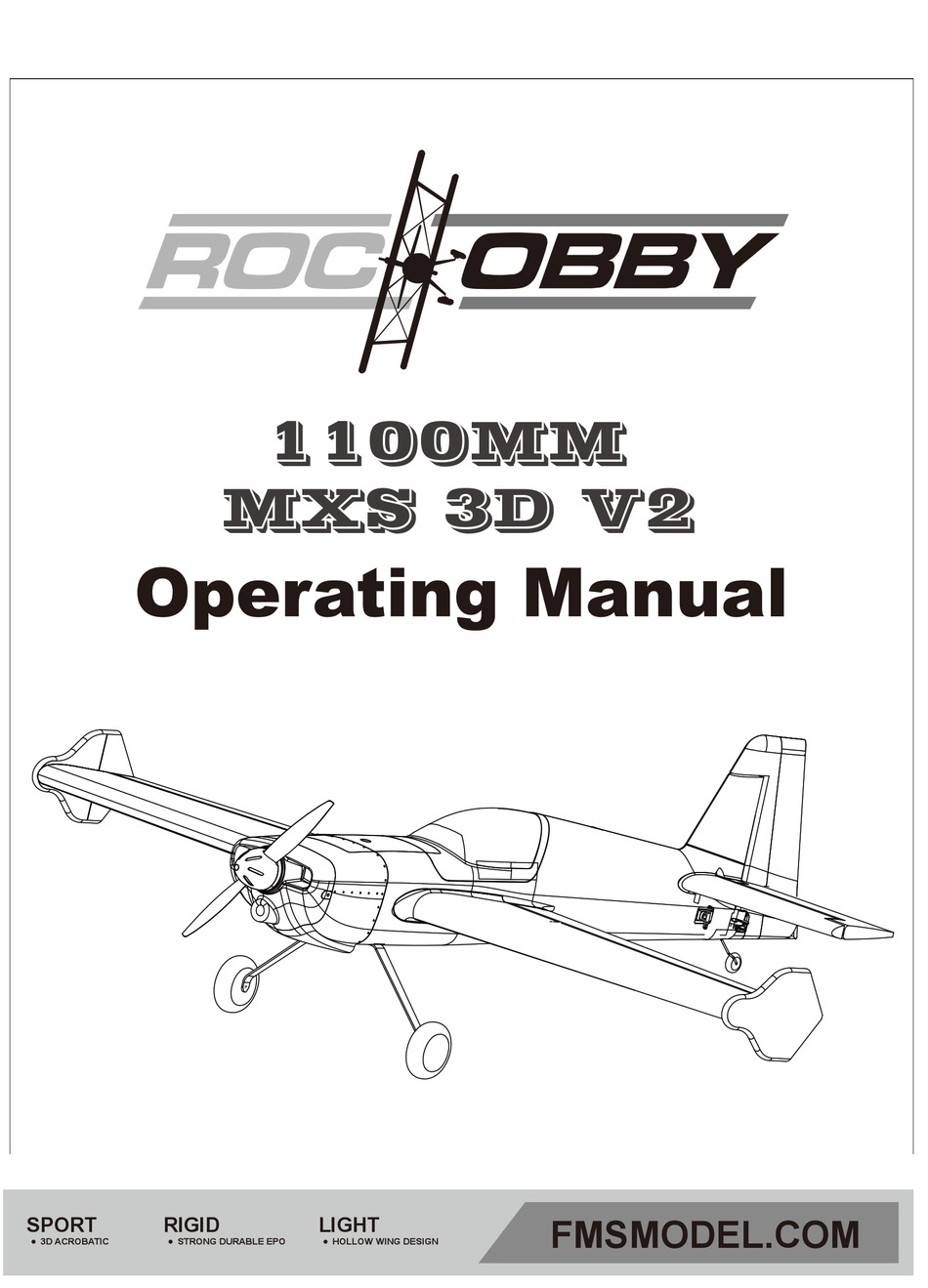

- Page 1 1100MM MXS 3D V2 FMSMODEL.COM SPORT RIGID LIGHT 3D ACROBATIC STRONG DURABLE EPO HOLLOW WING DESIGN...
- Page 2 WARNING WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product. personal property and cause serious injury. This is a sophisticated hobby product and NOT a toy. It must be operated with caution and common sense and requires in injury or damage to the product or other property.
-
Page 3: Table Of Contents
Table of Contents Introductions..............................2 Contents of Kit...............................3 Assemble the plane............................4 Install the battery and Radio installation......................5 Important ESC and model information......................6 The transmitter and model setup........................6 Check the control throws..........................7 Check the motor rotating direction........................7 Linkage rod Installation..........................8 Control Horn and Servo Arm Settings......................8 Install the propeller and spinner........................9 Center of Gravity(CG)............................9 Before flying the model..........................10... -
Page 4: Contents Of Kit
Wingspan: 1100mm (43.3in) Overall Length: 1114mm (43.85in) Flying Weight: Around 1180g(41.6oz) Motor Size: Brushless 3541-KV1230 Wing Load: 30.3 g/dm² (0.068oz/in²) Wing Area: 26.12 dm² (405.9sq.in) ESC: 40A Servo: 9g metal digital Servo x 4 Recommended Battery: 11.1V 2200mAh 25C Contents of Kit Before assembly, please inspect the contents of the kit. -
Page 5: Assemble The Plane
Assemble the plane 1. Unpack the elevator parts bag and assemble PA 2.3*10 mm and connecting pipe as shown in Figure 1 and 2. KA2.6*12mm fig1 fig2 fig4 fig3 3. Attach the main landing gear using 3 PM 3.0 X 10mm screwsas shown in Figure 5. 4. -
Page 6: Install The Battery And Radio Installation
5. Assemble the main wing as shown in Figure 7. Use four screws to lock the wing as shown in Figure 8. HKM 3.0 x 20 fig8 fig7 6.Glue on the Vortex Generator on the wing tip using the applied glue (fig9). fig9 Install the battery and Radio installation 1. -
Page 7: Important Esc And Model Information
Get your model ready to fly Important ESC and model information 1. The ESC included with the model has a safe start. If the motor battery is connected to the ESC and the throttle stick is not in the low throttle or position, the motor will not start until the throttle stick is moved to the low throttle or off position. -
Page 8: Check The Control Throws
Check the control throws The suggested control throw setting for FMS MODEL are as follows (dual rate setting): Tips: At first flight, fly the model in low rate. The first time you use high rates, be sure to fly at low to medium speeds. -
Page 9: Linkage Rod Installation
Linkage rod Installation Press the socket-style linkage connector over the corresponding ball end on the control horn. Control Horn and Servo Arm Settings The table shows the factory settings for the control horns and servo arms. Fly the aircraft at the factory settings before making changes. -
Page 10: Install The Propeller And Spinner
Install the propeller and spinner Assemble the spinner and propeller as shown below. Check the C.G. (Center of Gravity) When balancing your model, adjust the motor battery as necessary so the model is level or slightly nose down. This is the correct balance point for your model. After the first flights, the CG position can be adjusted for your personal preference. -
Page 11: Before Flying The Model
Before flying the model Find a suitable flying site Find a flying site clear of buildings, trees, power lines and other obstructions. Until you know how much area will be required and have mastered flying your plane in confined spaces, choose a site which is at least the size of two to three football fields - a flying field specifically for R/C planes is best. -
Page 12: Flying Course
Flying course Take off While applying power, slowly steer to keep the model straight. the model should accelerate quickly. As the model gains flight speed you will want to climb at a steady and even rate. MXS 3D will climb out at a nice angle of attack (AOA). -
Page 13: Troubleshooting
Troubleshooting... -
Page 14: Spare Parts List Content
Spare parts list content ROCKL101 Fuselage ROCKL102 Main Wing Set ROCKL103 Horizontal Stabilizer ROCKL104 Cowl ROCKL105 Battery Hatch ROCKL106 Main Landing Gear Set ROCKL107 Rear Landing Gear Set ROCKL108 Spinner Set ROCKL109 Linkage Rod ROCKL110 Vortex Generator ROCKL111 Decal Sheet ROCKL112 Pipe Set FMSPROP047... -
Page 15: Esc Instrouction
ESC instruction Brushless Speed Controller A quality connector Battery is essential Pack Motor Brushless Controller Receiver...
