PRO 32 & 48 X-AXIS BELT

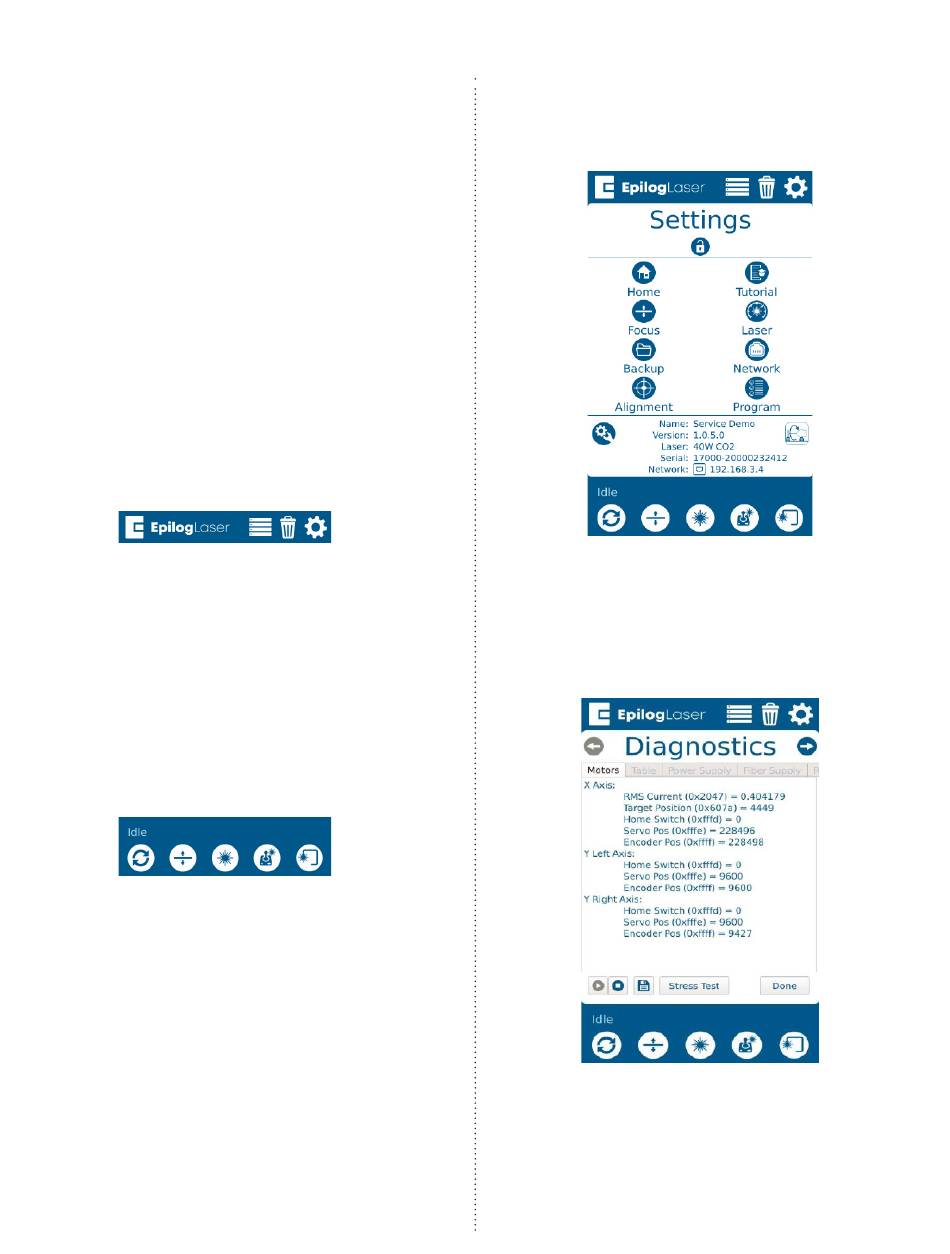

4. Open your preferred illustrating program
and create a black, raster box on an
artboard that is:
• For Pro 48: 46" or 1100mm wide
• For Pro 32: 30" or 800mm wide
• Roughly 4" or 100mm tall
• Speed of 100
• Power of 0, as the machine will be run
with the lid open for the procedure.
5. Send the job to the engraver and start
the job.
6. At the display panel, press the gear icon
in the upper right-hand corner of the
display to open the Settings menu:
7. Press and hold the word "Settings" that
appears at the touch of the touchpad
to gain access to the Advanced Settings
menu:
8. Once in the Advanced Settings menu,
enter the Diagnostics menu and locate
the RMS Current reading for the X-Axis
Motor/Drive:
