Epilog Fusion Pro 32 Replacement page 2

PRO 32 & 48 X-AXIS BELT
DO NOT REMOVE THE OLD
BELT BEFORE RECEIVING A
REPLACEMENT.

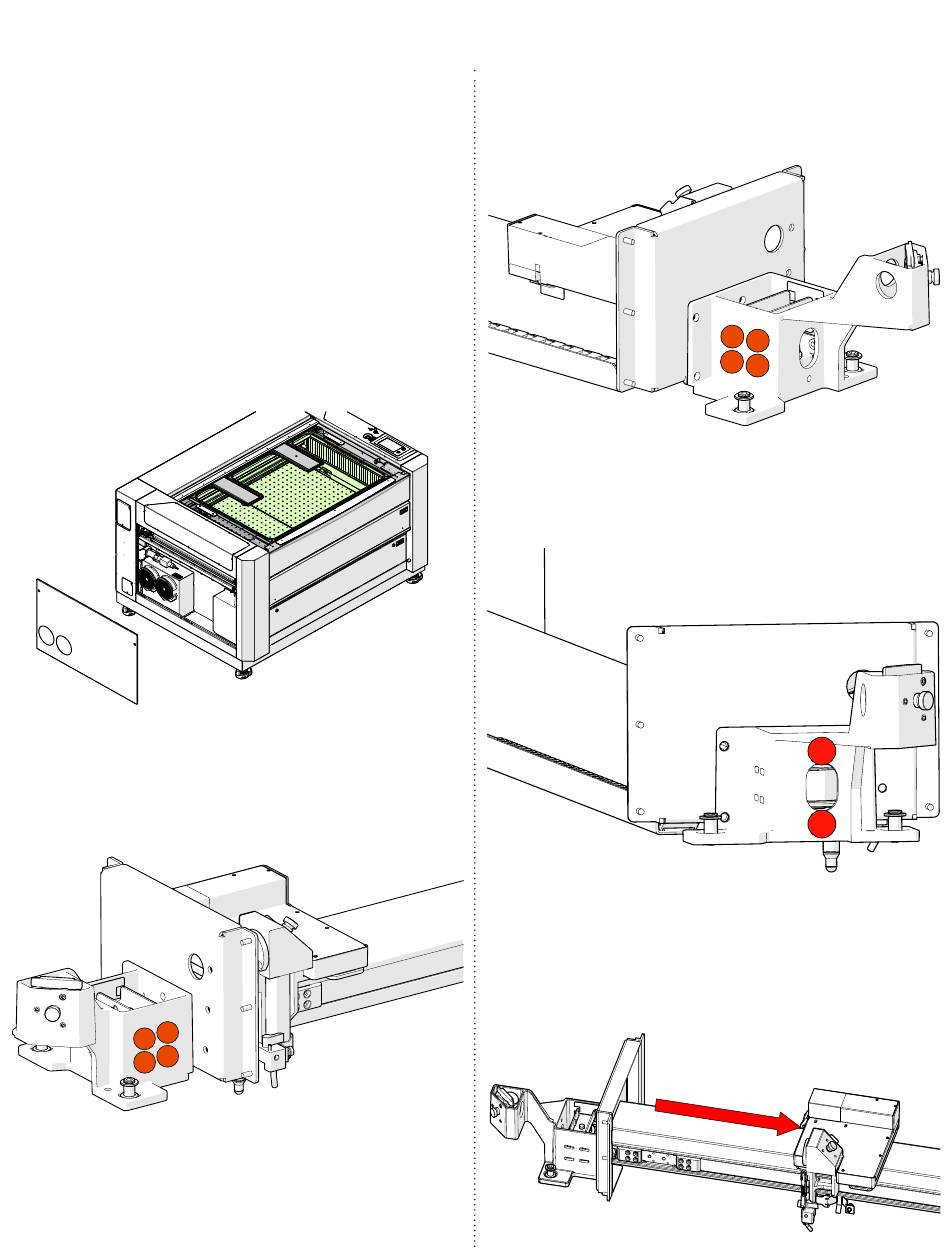

Detensioning the Belt
1. Power off the engraver.
2. Disconnect engraver from power source.
3. Remove the left panel of the engraver:
4. At the left side of the engraver, loosen,
but do not remove the four (4) 7/64" hex
screws located on the front side of the
x-axis assembly:
5. Loosen, but do not remove the four (4)
7/64" hex screws at the rear of the x-axis
assembly:
Remove the tension from the x-axis belt by
loosening the two (2) 7/64" hex screws on the
idler assembly body:
Removing the Belt Clamps
1. Manually move the lens carriage to the
right side of the engraver:
2
