Epilog Fusion Pro 32 Replacement page 4

PRO 32 & 48 X-AXIS BELT

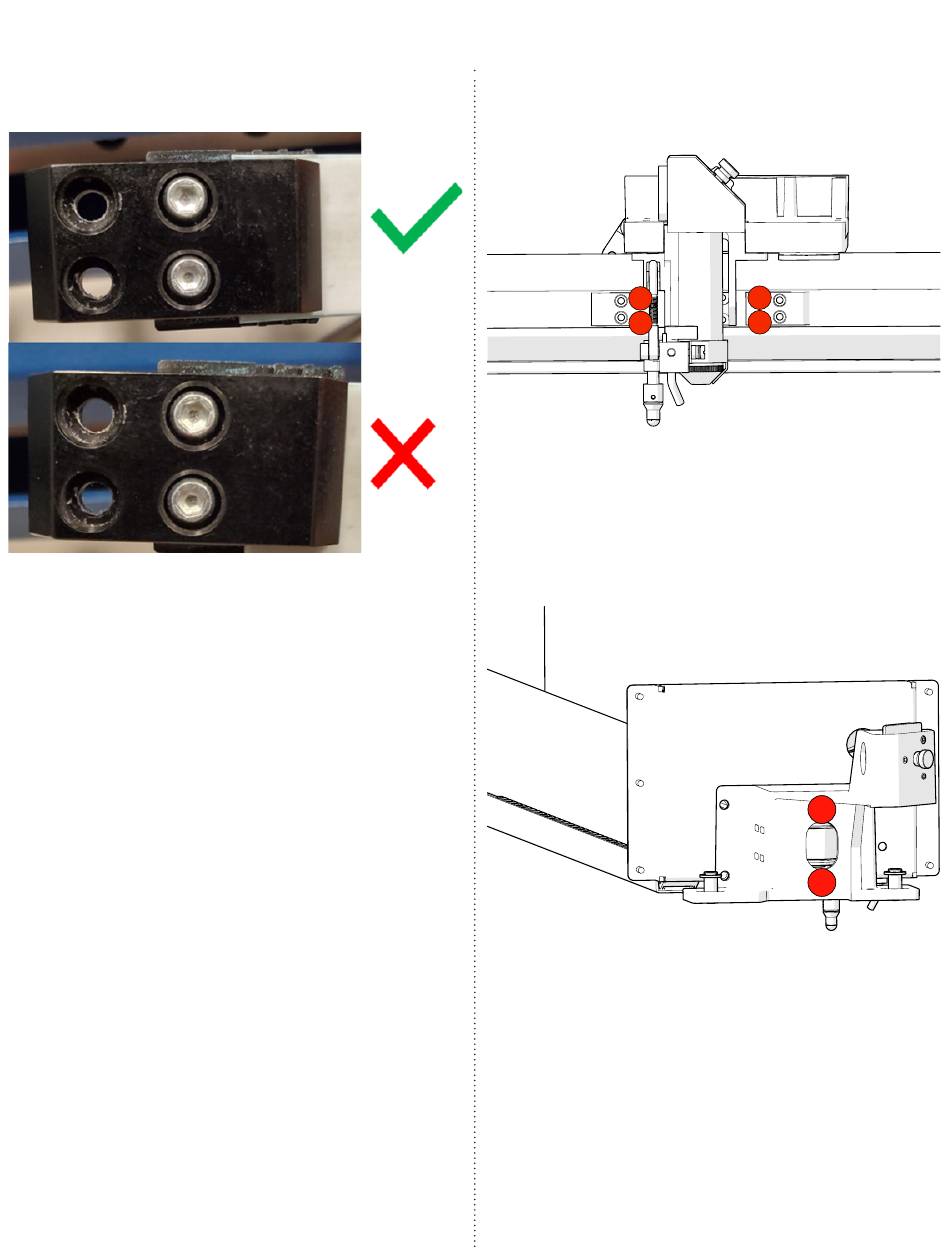

6. Ensure that the belt clamp is centered
on the belt before tightening the clamp:
7. Slowly pull on the left side of the old
belt to remove it while subsequently
threading the new belt through the
x-axis assembly.
8. Once the connection point between the
new and old belts has exited the idler
assembly on the left side of the x-axis
assembly, disconnect the belts.
9. Connect the remaining belt clamp to
the left side of the x-axis belt, ensuring
that it is centered on the belt before
tightening the clamp.
10. Place the belt clamps in position. Install
and tighten the four (4) 3/32" inner x-axis
belt clamp mounting screws:
Tensioning the X-Axis Belt
1. Begin to apply tension to the x-axis belt
by tightening the two (2) 7/64" hex screws
on the idler assembly body:
2. Remove the slack from the X-axis belt.
3. Once the slack is removed, start the
engraver, and let it complete the startup
process.
4
