使用说明书
本说明书的内容可能会随版本更改
如有变动, 恕不另行通知
Ver 1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the D400 EX and is the answer not in the manual?

Questions and answers

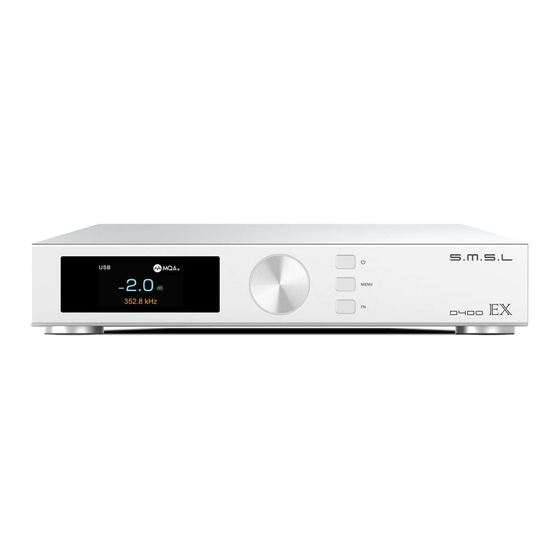

Summary of Contents for SMSL D400 EX

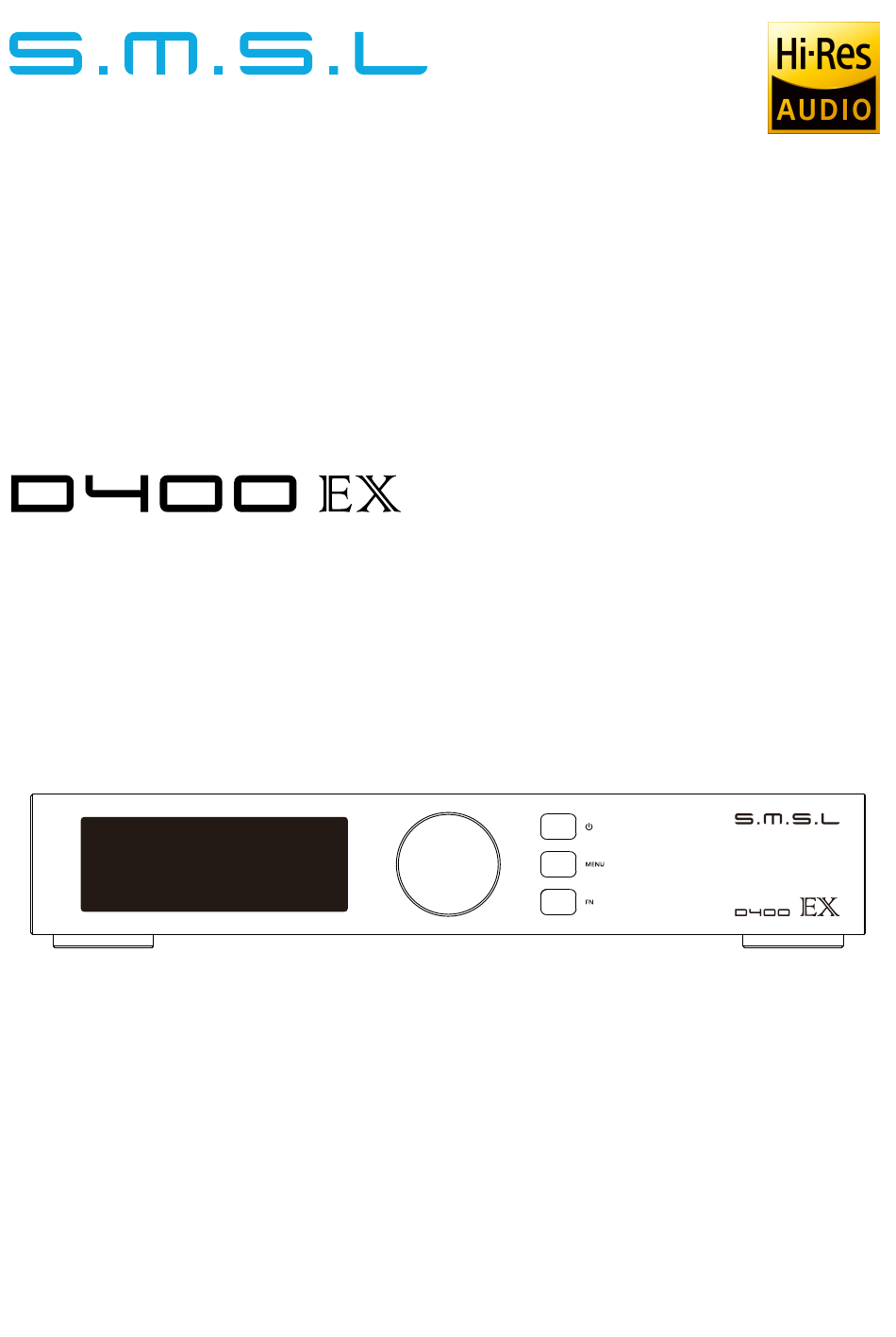

  • Page 1 使用说明书 本说明书的内容可能会随版本更改 如有变动, 恕不另行通知 Ver 1.0...
  • Page 2 安全注意事项 请将本音响系统安装在通风良好、 阴凉、 干燥、 干净的位置, 远离直射阳光热源 、 振动、 灰尘、 潮湿或寒冷。 只能使用本机指定的电压。 使用高于指定数值的电压很危险, 而且可能导致火 灾, 损坏本机或造成人身伤害。 对于使用高于指定电压造成的任何损害, 我司 将不负任何责任。 不要试图自行改造或修理本机。 如果需要任何服务, 请与销售或者我司客服人 员联系。 不管有任何理由, 都没有打开机壳的必要。 如果打算长时间不使用本机 (比如度假时) , 请从墙壁交流电源插座上断开电 源线的连接。 重要提示: 本说明书所提到的产品规格和资讯仅供参考。 如有内容更新, 恕不另行通知。 保修条款 一、 服务期限 佛山双木三林科技有限公司承诺产品的良好品质, 产品自售出之后7天内 正常使用情况下出现故障, 客户可以选择退货或者保修 (不影响二次销售 才可退货)...
  • Page 3 特点 支持MQA解码, 支持MQA-CD ; 全新第三代XMOS XU-316, PCM支持到32bit/768kHz, DSD支持到DSD512; 旗舰DAC芯片1颗AK4191+ 2片AK4499EX,挖掘芯片所有潜能; 双单声道设计,每声道一片AK4499EX,失真度低至惊人的0.00006%(-124dB); 使用9片高端双运放及大量发烧元器件; 采用2nd PLL,消除SPDIF传输过程中的JITTER; 全新自主研发的CK-03时钟处理电路, 大大降低时钟抖动; 支持DOP独立显示功能,准确判断当前解码格式; USB、 光纤、 同轴、 AES、 I2S支持DSD传输, 同轴和光纤支持DOP64; 使用钢化玻璃全贴合彩色IPS显示屏; 内置低噪声电源处理, 同时提高电源效率, 功耗更低; 搭配多个低噪声稳压电源, 提供稳定可靠高效低噪声的供电系统。 高通高端蓝牙芯片,支持LDAC(24bit/96kHz), APTX/HD, SBC, AAC; 高品质全铝合金外壳,支持高品质镀金输入输出连接端子; 日本音频协会(JAS)Hi-Res认证; 配备遥控器和全功能遥控。...
  • Page 4 1bit,16~24bit 采样率 ........USB / I 44.1~768kHz 2.8224~22.5792MHz 光纤/同轴 44.1~192kHz 蓝牙规格: LDAC ............. 24bit/96kHz (990kbps/660kbps/330kbps) aptX-HD .................24bit/48 kHz_576kbps aptX ..................16bit/44.1 kHz_352kbps SBC ..................16bit/44.1 kHz_328kbps AAC ..................16bit/44.1 kHz_320kbps 消耗功率 ........................6W 待机功耗 ......................<0.5W 体积 ..................240x188x46 mm (WxHxD) 重量 ......................1.85kg/4.08 lb SMSL保留在不另行通知的情况下进行可能导致规格或特性更改的改进的权利。...
  • Page 5 关于遥控器 如果遥控器距离本机很近时操作仍无效, 请用新电池更换。 如果要长时间不使用遥控器, 请取出遥控器的电池。 按照电池处置的地方性法规处置废旧电池。 遥控器的使用 开关机 向上 进入菜单/确认 进入二级菜单 返回 向下 输入选择 静音 FN按键 (在菜单中定义) 音量加 音量减 注 意 遥控器请使用2节7号(AAA)电池...
  • Page 6 旋钮: 音量加减, 菜单切换, 功能选择。 按键: 短按, 进入菜单, 确认; 长按, 退出菜单, 开关机。 蓝牙操作说明 连接: 将输入源切换至蓝牙, 打开手机蓝牙功能, 搜索"SMSL D400 EX", 搜索 到后点击配对连接, 当手机显示 “已连接” 则已连接成功。 重连: 在使用蓝牙过程中, 如果失去连接, 例如: 外出, 然后回来, 有些手机不 会自动重新连接, 在这个时候, 短按遥控器上的蓝牙按键就可以重新连接。 清除配对: 长按遥控器 “蓝牙控制” 按键。 在清除配对后, 部分手机可能会出 现无法再搜索到"SMSL D400 EX", 此时需要将手机保存的蓝牙设备...
  • Page 7 功能介绍 NPUTS (输入方式) (USB输入) BLUETOOTH (蓝牙输入) OPTICAL (光纤输入) COAXIAL (同轴输入) AES/EBU (AES/EBU输入) I2S(HDMI) S输入) PUTS (输出方式) ALL LINE OUT (全部输出) BALANCED (平衡输出) UNBALANCED (非平衡输出) PCM FILTER (PCM滤波器) SHARP ROLL-OFF (快速滚降) SLOW ROLL-OFF (慢速滚降) SHORT SHARP (短延时快速滚降) SHORT SLOW (短延时慢速滚降) SUPER SLOW (超级慢速滚降)...
  • Page 8 功能介绍 SOUND COLOR(音色菜单) SOUND 1(5.6M) SOUND 2(5.6M) SOUND 3(11M) SOUND 4(11M) AK4499EX工作采样率为5.6MHz。 AK4499EX工作采样率为11.2896MHz。 PRE MODE(前级模式) PRE MODE为输出接口的音量调节功能开关: VARIABLE: 输出接口音量是受控的。 FIXED: 输出接口音量是固定的。 FIXED DSD BYPASS FN KEY FOR FN按键作用 OUTPUTS (输出选择) BLUETOOTH (切换到蓝牙输入) PHASE (切换到输出相位)
  • Page 9 功能介绍 S MODE S模式 NORMAL (正常, PS AUDIO格式) REVERSED(反相, DATA和LRCK反相) S DATA - S DATA + S DATA - S DATA + S BCK + S BCK + S BCK - S BCK - S LRCLK - S LRCLK + S LRCLK + S LRCLK - S MCLK +...
  • Page 10 功能介绍 AUDIO PHASE NORMAL (2+,3-) INVERTED (2-,3+) NORMAL INVERTED DIMMER 自动熄屏 5秒 ~ 60秒 (范围5秒 - 60秒, 设置后, 屏会在这个时间内自动熄灭, 遥控或者旋钮任意操作屏幕 会重新点亮。 这样可以很大程度减少光污染, 提升听音环境的舒适性!) BRIGHTNESS (显示屏亮度设置) LEVEL 1 ~ LEVEL 6 RESET (系统复位) 在蓝牙输入时, 长按旋钮中键 , 系统只会重置蓝牙配对状态; 在其它输入时, 长按旋钮中键 , 系统清除所有设定, 包括蓝牙。...
  • Page 12 USER MANUAL The contents of this manual may be changed with the edition Ver 1.0 and are subject to change without notice...
  • Page 13: Safety Notes

    Safety Notes Install this unit in a well ventilated, cool, dry, clean place-away from direct sunlight, heat sources, vibration, dust, moisture, or cold.. Use the voltage specified on this unit Only. Using this unit with a higher voltage than specified is dangerous and may cause fire , damage to this unit, or personal injury. Our company will not be held responsible for any damage resulting from the use of this unit with a voltage other than that specified.
  • Page 14 Features Support MQA decoding, support MQA-CD; New 3rd generation XMOS XU-316, PCM support up to 32bit/768kHz, DSD support to DSD512; Flagship DAC chip 1 AK4191+ 2 AK4499EX, tap all the potential of the chip; Dual mono design, one AK4499EX per channel, distortion as low as a staggering 0.00006% (-124dB);...
  • Page 15: Specifications

    ...................... 16bit/44.1 kHz_352kbps ......................16bit/44.1 kHz_328kbps ......................16bit/44.1 kHz_320kbps ........................6W Power Consumption ........................<0.5W Standby power mm (WxHxD) .....................240X188X46 Size ........................1.85kg/4.08lb Weight SMSL reserves the right to make improvements which may result in specification or feature changes without notice.
  • Page 16: Remote Control

    Remote control If the remote control is still ineffective when it is close to the machine, replace it with a new battery. If the user does not use the remote control for a long time, remove the battery of the remote control. Dispose of used batteries in accordance with local regulations on battery disposal.
  • Page 17 Press and hold the Bluetooth Control button on the remote control. After clearing the pairing, some phones may no longer be able to search for "SMSL D400 EX", in which case you need to delete the Bluetooth device "SMSL D400 EX" saved by the phone and...
  • Page 18 Instructions NPUTS BLUETOOTH OPTICAL COAXIAL AES/EBU I2S(HDMI) PUTS ALL LINE OUT BALANCED UNBALANCED PCM FILTER SHARP ROLL-OFF SLOW ROLL-OFF SHORT SHARP SHORT SLOW SUPER SLOW LOW DISPERSION DSD FILTER WIDE NARROW...
  • Page 19 Instructions SOUND COLOR SOUND 1(5.6M) SOUND 2(5.6M) SOUND 3(11M) SOUND 4(11M) The AK4499EX operates at a sampling rate of 5.6448MHz. The AK4499EX operates at a sampling rate of 11.2896MHz. PRE MODE PRE MODE is the volume adjustment function switch for the output. VARIABLE: The output volume is controlled.
  • Page 20 Instructions S MODE NORMAL REVERSED S DATA - S DATA + S DATA - S DATA + S BCK + S BCK + S BCK - S BCK - S LRCLK - S LRCLK + S LRCLK + S LRCLK - S MCLK + S MCLK + S MCLK -...
  • Page 21 Instructions AUDIO PHASE NORMAL (2+,3-) INVERTED (2-,3+) NORMAL INVERTED DIMMER 5 second ~ 60 second (The range is 5 seconds-60 seconds. After setting, the screen will automatically go off within this time, and the screen will re-light up if you operate the remote control or the knob at any time.) BRIGHTNESS...
