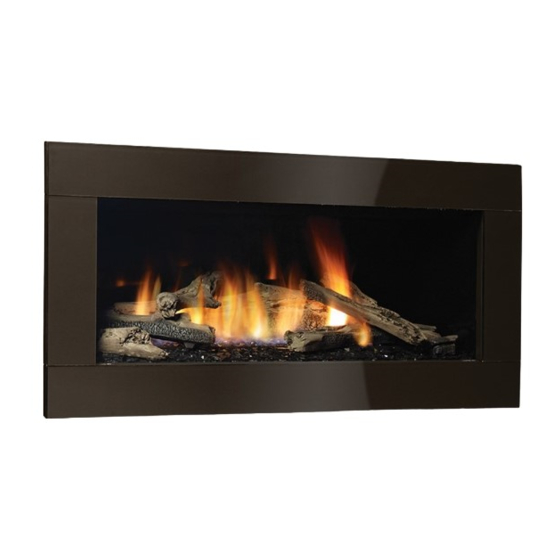

Regency Horizon
Gas Fireplace
Horizon HZ40E Product Video
Warning
FIre or explosion Hazard
failure to follow safety warnings exactly could result in serious
injury, death, or property damage.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
- WHAT TO DO IF YOU SMELL GAS
•
Do not try to light any appliance.
• Do not touch any electrical switch: do not use any phone in your building.
Leave the building immediately.
• Immediately call your gas supplier from a neighbour's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas supplier.
Tested by:
Certified to/Certifié pour: CSA 2.17-2017
920-001f
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
HZ40E
®
Installer: Please complete the details on the back cover
ANSI Z21.88-2017
and leave this manual with the homeowner.
CSA 2.33-2017
Homeowner: Please keep these instructions for future reference.
Owners &
Installation Manual
40E
MODELS:
HZ
40E
HZ
www.regency-fire.com
French Manual: https://bit.ly/3bPXj09
Manuel en français : https://bit.ly/3bPXj09
-NG11 Natural Gas
-LP11 Propane
03.12.21
Advertisement
Table of Contents
Related Manuals for Regency Fireplace Products Horizon HZ40E
Summary of Contents for Regency Fireplace Products Horizon HZ40E
- Page 1 -NG11 Natural Gas -LP11 Propane www.regency-fire.com French Manual: https://bit.ly/3bPXj09 Manuel en français : https://bit.ly/3bPXj09 Horizon HZ40E Product Video Warning FIre or explosion Hazard failure to follow safety warnings exactly could result in serious injury, death, or property damage. - Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
- Page 2 MANUFACTURED MOBILE HOME REQUIREMENTS INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE This Regency product has been tested and listed by Warnock Hersey/Intertek as a Direct Vent Wall Furnace to the following ® standards: VENTED GAS FIREPLACE HEATERS ANSI Z21.88-2017 / CSA 2.33-2017 and GAS-FIRED APPLIANCES FOR USE AT HIGH ALTITUDES CSA 2.17-2017.
-
Page 3: On Demand Pilot Light (Seven Day Safety Timer)
To the New Owner: Congratulations! You are the owner of a state-of-the-art Gas Fireplace by REGENCY . The HZ40E has been designed to provide ® you with all the warmth and charm of a fireplace at the flick of a switch. The model HZ40E has been approved by Warnock Hersey/Intertek for both safety and efficiency. -
Page 4: Table Of Contents
table of contents owner's information 4" x 6-5/8" Venting ............41 Unit Installation with Horizontal Termination ....42 On Demand Pilot Light (seven day safety timer) ......3 Dura-Vent Horizontal Terminations ......43 Copy of Safety Decal .............5 Unit Installation with Vertical Termination ....44 Important Message ............7 4"... -
Page 5: Copy Of Safety Decal
safety decal This is a copy of the label that accompanies each HZ40E-NG11 and HZ40E-LP11 Direct Vent Gas Fireplace. We have printed a copy of the contents here for your review. NOTE: Regency ® units are constantly being improved. Check the label on the unit and if there is a difference, the label on the unit is the correct one. Copy of Safety Decal Duplicate S/N DO NOT REMOVE THIS LABEL /... - Page 6 dimensions Inner/Outer Faceplate 4 Piece Faceplate/Verona Surround Note: Gas connection is from the right hand side of the appliance & electrical connection on left hand side of the appli- ance. A metal receptacle box is supplied/installed with the appliance to make all 120 volt electrical connections. ALL PICTURES / DIAGRAMS SHOWN THROUGHOUT THIS MANUAL ARE FOR ILLUSTRATION PURPOSES ONLY.
-
Page 7: Important Message
owner's information Important Message 4. This appliance must be connected to the YOUNG CHILDREN SHOULD BE CARE- specified vent and termination cap to the outside Save these Instructions FULLY SUPERVISED WHEN THEY ARE of the building envelope. Never vent to another IN THE SAME AREA AS THE APPLI- room or inside a building. -
Page 8: Lighting Procedure
owner's information Lighting Procedure IMPORTANT: The remote control system supplied with this appliance has 3. After approximately 4 seconds the spark ignition system will spark for 60 several options for starting/operating the appliance using the power button seconds to light the pikot. and ON/OFF key on the hand held transmitter. -
Page 9: Copy Of Lighting Plate Instructions
owner's information Copy of Lighting Plate Instructions FOR YOUR SAFETY READ BEFORE LIGHTING This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or Natural Gas and Propane Installation Codes, CSA B149.1. WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. -
Page 10: Proflame 1 Remote Control Operating Instructions
owner's information Proflame I Remote Control Operating Instructions IMPORTANT:The Proflame Transmitter 1 is an integrated part of the TECHNICAL DATA Proflame 1 System, which consists of these elements: REMOTE CONTROL • Proflame 1 Transmitter, to be used in conjunction with: •... - Page 11 owner's information Remote - Flame Control Temperature indication Display The Proflame has six (6) flame levels. With the system on, and the flame With the system in the "OFF" position, press the Thermostat Key and level at the maximum in the appliance, pressing the Down Arrow Key the Mode Key at the same time.
- Page 12 owner's information Smart Thermostat (Transmitter Operation) Remote Dimmer Control (Light)** The auxiliary function controls the AUX power outlet by the dimmable The Smart Thermostat function adjusts the flame height in accordance light control. To activate this function use the Mode Key (fig. 1) to index to the difference between the set point temperature and the actual room to the AUX icon (fig.
- Page 13 owner's information Low Battery Power Detection Transmitter The life span of the remote control batteries depends on various factors: quality of the batteries used, the number of ignitions of the appliance, the number of changes to the room thermostat set point, etc. When the Transmitter batteries are low, a Battery Icon will appear on the LCD display of the Transmitter (Fig.
-
Page 14: Ma Code - Co Detector
requirements MA Code - CO Detector (for the State of Massachusetts only) 5.08: Modifications to NFPA-54, Chapter 10 (2) Revise 10.8.3 by adding the following additional requirements: (a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied:... -
Page 15: Installation Checklist
requirements installer's information Installation Checklist 4. This appliance is listed for bedroom installations This includes: using the standard remote (thermostat system). Some areas may have further requirements, 1. Locate appliance 1. Clocking the appliance to ensure the correct check local codes before installation. a) Room location (Refer to "Locating Your Gas firing rate (rate noted on label 26,000 Btu/h fireplace"... -
Page 16: Clearances
installation Clearances The clearances listed below are minimum distances unless otherwise stated: A major cause of chimney related fires is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance that this fireplace and vent system be installed only in accordance with these instructions. Flue Clearances to Combustibles Clearance: Dimension... -
Page 17: Mantel Clearances
installation Mantel Clearances Due to the extreme heat this fireplace emits, the mantel clearances are critical. Combustible mantel clearances from top of front facing are shown in the diagram on the right. 13" (330mm) Combustible Material Note: A non-combustible mantel may be installed at a lower height if the framing is made of metal studs covered with a non-combustible board. -
Page 18: Unit Assembly Prior To Installation
installation Unit Assembly Prior To Installation The nailing Strips must be correctly positioned and attached before unit is slid into position. Nailing Strips The nailing strips come attached to the unit. There is 1 plate on each side. The side nailing strips are secured to the framing. IMPORTANT NOTE Framing depth measurement is noted with the nailing strips set as far forward on the firebox as possible. -
Page 19: Framing Dimensions
installation Framing Dimensions NOTE: If not purchasing the optional steel stud kit - adhere to the same framing if purchasing steel studs elsewhere. The use of the optional kit is highly recommended as it was designed specifically for the product to facilitate ease of installation. Framing Description HZ40E... -
Page 20: Optional Framing Kit
HZ40E installation OPTIONAL FRAMING KIT Optional Framing Kit 5. Secure horizontal steel header stud with 2 screws per side as per 1. Construct the wood framing, ensure inside dimensions are 53"W x 45- diagram. 1/2"H as shown below. Header stud (258-026) 45-1/2"... -
Page 21: Wall Mount On/Off Switch And Remote Receiver Installation
installation Wall Mount On/Off Switch and Remote Receiver Installation Required for all installations - including Proflame remote controls IMPORTANT INSTALLATION NOTE: The Receiver must be placed inside the supplied (Low Voltage) junction type wall box and installed into the wall only. DO NOT INSTALL WITHIN THE CONFINES OF THE FIREPLACE. -
Page 22: Non-Combustible Requirements
installation Non-Combustible Requirements * Installation of the Receiver must be completed before installing non-combustible facing. All three pieces (top, 2 sides) are supplied to meet the non combustible requirements. Calcium silicate board is a high - grade material with Metal Stud (header) on edge 51-5/16"... -
Page 23: Framing & Finishing
installation Framing & Finishing 1. Frame in the enclosure for the unit with framing material. 5. If material such as brick, stone, etc extends past the faceplate depth (3-1/4"), when finishing around the faceplate, the minimum opening dimensions noted IMPORTANT: The framed opening must be of non-combustible below must be adhered to ensuring for the removal of the faceplate and for material. -
Page 24: Framing & Finishing
Discoloration is not the responsibility of Regency Fireplace Products. This is out of the control of Regency Fireplace Products Ltd., therefore not covered under any part of the warranty policy. -
Page 25: Exterior Vent Termination Requirements
installation Exterior Vent Termination Requirements Minimum Clearance Requirements Canada Clearance above grade, veranda, porch, deck, or balcony 12"(30cm) 12"(30cm) Clearance to window or door that may be opened 12"(30cm) 9" (23cm) Clearance to permanently closed window Vertical clearance to ventilated soffit located above the terminal within a horizontal distance of 2 feet (61cm) 19"(48cm) 19"(48cm) from the center line of the terminal (check with the local code) -
Page 26: 4" X 6-5/8" Rigid Pipe
installation 4” x 6-5/8” Rigid Pipe Cross Reference Chart only 4" X 6-5/8" RIGID PIPE CROSS REFERENCE CHART Components from different Manufacturers may not be mixed. Not All Rigid Pipe components are available directly from FPI. Components from different Manufacturers may not be mixed. Not all rigid pipe components are available directly from Regency. Note: Olympia Ventis DV is only approved for certain models. - Page 27 installation Description *Selkirk *American Metal *Security *ICC Excel *Olympia Simpson *Metal-Fab™ Ventis DV*** Direct Temp™ Secure- Vent® Direct ® Products® Direct Vent Pro Sure Seal Amerivent Direct Attic Insulation Shield 12" 46DVA-IS 4DAIS12 4DIS SV4RSA VDV-AIS04 Attic Insulation Shield 46DVA-KHA 4DAIS12 TM-4AS - Cold Climates 36"...
-
Page 28: Vent Restrictor Position
installation Vent Restrictor Position Vent restriction is required for certain venting installations, see the diagrams in the "Venting Arrangements" section to determine if they are required for your installation. The Vent Restrictor plate is located on the inside top of the firebox. To set the vent restriction as indicated in the venting arrangements diagrams, refer to the following instructions;... -
Page 29: Venting Introduction
installation Venting Introduction The HZ40E uses the "balanced flue" technology Co-Axial system. The inner liner vents products of combustion to the outside while the outer liner draws outside combustion air into the combustion chamber thereby eliminating the need to use heated room air for combustion and losing warm room air up the chimney. Note: These flue pipes must not be connected to any other appliance. -
Page 30: Horizontal Terminations
installation Horizontal Terminations Flex Vent 4" x 6-7/8" These venting systems, in combination with the HZ40E Direct Vent Gas Fireplace, has been tested and listed as a direct vent heater system by Warnock Hersey/ Intertek. The location of the termination cap must conform to the requirements in the Vent Terminal Locations diagram in "Exterior Vent Termination Locations"... -
Page 31: Horizontal Terminations
installation Horizontal Terminations Rigid Pipe 4" x 6-5/8" The minimum components required for a basic horizontal termination are: Horizontal Termination Cap Elbow Rigid Pipe Adaptor (#510-994) Wall Thimble Length of pipe to suit wall thickness (see chart) Wall thickness is measured from the back standoffs to the inside mounting surface of termination cap. -
Page 32: Horizontal Terminations
installation Horizontal Terminations Rigid Pipe 4" x 6-5/8" The diagrams below shows examples of horizontal termination arrangements using one, two, or three 90 elbows (two 45 elbows equal one 90 elbow) 1. A maximum of three 90 elbows are permitted (not including the starting 45 elbow at the flue collar when using rigid venting). - Page 33 installation Horizontal Venting with Two (2) 90 Elbows Horizontal Venting with Three (3) 90 Elbows One 90 elbow = Two 45 elbows. One 90 elbow = Two 45 elbows. Option H + H1 With these options, maximum Option H + H1 + H2 With these options, total pipe length is 28 feet maximum total pipe...
- Page 34 installation Horizontal Venting with Three (3) 90 Elbows One 90 elbow = Two 45 elbows. Option V + V1 H + H1 With these options, maximum total pipe 2' Min. 1' Max. 3' Min. 4' Max. length is 28 feet with minimum of 12 feet 3' Min.
-
Page 35: Vertical Terminations
installation Vertical Terminations Rigid Pipe 4" x 6-5/8" Vertical Terminal The minimum components required for a basic vertical termination are: Vertical Termination Cap Elbow Storm Collar Rigid Pipe Adaptor (510-994) Ceiling Firestop Term Flashing Flashing Storm Collar Vinyl Siding Length of pipe to suit wall thickness Standoff (Optional) (see chart) Ceiling Firestop... -
Page 36: Venting Arrangement For Vertical Terminations
installation Venting Arrangement for Vertical Terminations Vertical Venting with One (1) 90 Elbows (1 - 90 2 - 45 Horizontal (Feet) The shaded area in the diagram shows all allowable combinations of straight vertical and offset to vertical terminations, using one elbow, with Rigid Pipe Venting Systems. -
Page 37: Vertical Termination With Co-Linear Flex System
installation Vertical Termination with Co-Linear Flex System THE APPLIANCE MUST NOT BE Masonry chimneys may take various contours which the flexible liner will accommodate. However, CONNECTED TO A CHIMNEY FLUE SERV- keep the flexible liner as straight as possible, avoid unnecessary bending. ING A SEPARATE SOLID FUEL BURNING APPLIANCE. -
Page 38: Vertical Terminations
installation Vertical Terminations Rigid Pipe 4" x 6-5/8" • Two 45 elbows equal to one 90 elbow. Maximum of four 45 elbows allowed, not including the starting 45 elbow at the flue collar. • Vent must be supported at offsets. •... - Page 39 installation Vertical Venting with Three (3) 90 Elbows One 90 elbow = Two 45 elbows. Option H + H1 V + V1 1' Max. 1' Min. 3' Max. 3' Min. With these options, max. total pipe length is 30 feet with min. 2' Max.
-
Page 40: Venting Arrangements - Vertical Terminations
installation Venting Arrangements - Vertical Terminations with Co-linear Flex System for both Residential & Manufactured Homes into Masonry Fireplaces Vent Restrictor Set 2 Vent Restrictor Set 2 Vent Restrictor Vent Restrictor Set 2 Horizontal Distance (Feet) Horizontal Distance (Feet) Horizontal Distance (Feet) The shaded area in the diagrams show the allowable vertical terminations when using two- 3"... -
Page 41: Unit Installation With Horizontal Termination
installation Unit Installation with Horizontal 5. Assemble the desired combination of pipe and 7. Ensure that the pipe clearances to combustible elbows to the appliance adaptor and twist-lock materials are maintained (Diagram 3). Install Termination for a solid connection. the termination cap. 4"... -
Page 42: Unit Installation With Horizontal Termination
installation Unit Installation with Horizontal NOTE: Horizontal sections must be sup- ASTROCAP ported at intervals not exceeding Termination DIMENSIONS (946-523/P) 3 feet (0.9 meter). (Flame picture 4" X 6-5/8" VENTING and performance will be affected (Flex Vent Systems) by sags in the liner). Minimum Vent Clearances 4. -
Page 43: Dura-Vent Horizontal Terminations
installation Dura-Vent Horizontal b) Horizontal runs of vent must be supported Terminations every three feet. Wall straps are available for this purpose. Install the vent system according to the manufacturer's instructions included with 5) Mark the wall for a 10" x 10" square hole. The the components. -
Page 44: Unit Installation With Vertical Termination
installation Unit Installation with Vertical 4. Assemble the desired lengths of pipe and Termination elbows. Ensure that all pipes and elbow con- 4" x 6-5/8" Venting nections are in the fully twist-locked position and sealed. (Rigid Vent Systems) 1. Maintain the 1-1/2" clearances (air spaces) to combustibles when passing through ceilings, Diagram 4 walls, roofs, enclosures, attic rafter, or other... - Page 45 installation VERTICAL TERMINATION 4" X 6-7/8" VENTING - VERTICAL FLEX VENT KIT (946-755) 1. Maintain the 1-½” (38 mm) clearance (air space) to combustibles when 11. Secure inner fl ex pipe to pipe adaptor by using Mill-Pac over the adaptor. passing through ceilings, walls, fl...
-
Page 46: Vertical Flue Extension Kit (Part #946-756)
installation Vertical Flue Extension Kit (Part #946-756) VERTICAL FLUE EXTENSION KIT (PART # 946-756) 20 foot (6.1 m) Flex pipe Extension (Used in conjunction with the 946-755 Vertical Flex kit and 948-367/P flex 4" (102 mm) inner to flex adaptor). pipe 20ft. -
Page 47: High Elevation
installation 885 S.I.T. Valve Description Pilot Adjustment HZ40E-NG11 SYSTEM DATA Min. Supply 5" WC (1.25 kpa) Periodically check the pilot flames. Correct flame 1) 6 Stage flame adjustment Pressure pattern has two strong blue flames: 1 flowing 2) Pilot adjustment around the flame sensor and 1 flowing across 3) Outlet Pressure Tap Manifold Pressure... -
Page 48: Wiring Diagram
installation Wiring Diagram This heater does not require a 120V A.C. supply for operation but it is highly recommended to install the supplied AC adaptor to eliminate the need for batteries. In case of a power failure, the burner switch and the optional remote control will continue to operate if batteries are installed in the receiver. However, a 120V A.C. -
Page 49: Optional Fan Installation - Initial Install
HZ40E installation Optional Fan Installation - Initial Install OPTIONAL FAN INSTALLATION 120 Volt AC power is needed for the fan switch and blower. The fan can 5. Connect one of the black wires from the power cord to the black wire be hard wired if desired. - Page 50 HZ40E installation 11. Install the fan control module (FCM) into the bracket on the side access TO REMOVE THE FAN panel. Plug in the power cord to the outlet in the unit. Reinstall the panel with the 4 screws from step 10. 1.
-
Page 51: Optional Fan Installation - Existing Install
HZ40E installation OPTIONAL FAN INSTALLATION - INTO EXISTING INSTALLATIONS Optional Fan Installation - Existing Install 120 Volt AC power is needed for the fan switch and blower. The fan can be hard wired if desired.The receptacle box should be installed on the left 7. - Page 52 HZ40E installation 10. Secure the fan to the base with 2 screws. Note the right access panel 16. The fan control module (supplied with the fan kit) secures to the side was removed to allow easier access to the right side screw. access panel.
- Page 53 installation HZ40E FCM-COM connector 19. Reinstall the access panel using the 3 screws from step 16. 20. See the Proflame Remote installation instructions for coding the remote handheld to the receiver as well as the operating instructions 21. Reverse steps 7 through 1 to complete the installation. TO REMOVE THE FAN 1.
-
Page 54: Wiring Diagram With Optional Fan
installation Wiring Diagram with Optional Fan Proflame System Configuration 886 GTMF Wire Diagram SureFire™ Switch 0.584.622 Ground Black White Neutral Black Green Live Ground 120V AC 60 Hz Black Black Fan Thermodisc (normally open) Caution: Ensure that the wires do not touch any CAUTION: Label all wires prior to disconnection hot surfaces and are away from sharp edges. -
Page 55: Optional Wall Thermostat Installation
installation Optional Wall Thermostat Installation 4. Connect the other thermostat lead to male connector disconnected This installation must be completed during initial install with the front access from Step 1 using a female spade connector - see picture below. panel removed. A wall thermostat may be installed if desired. -
Page 56: Inner Panel Installation
installation HZ40E Inner Panel Installation INNER PANEL INSTALLATION 7) Install the left side enamel panel - secure in position with the panel clip Handling Instructions and tighten two screws loosened in step 3 as shown in the diagram Black Enamel Panels below. -
Page 57: Glass Crystals Or Optional Stones
installation Glass Crystals or Optional Stones Installation On Burner Spread the Glass Crystals or Stones evenly over the burner. Ensure the crystals/stones do not overlap excessively as this will affect the flame pattern. IMPORTANT NOTE: Only the supplied approved Glass Crystals and Stones are to be used with these fireplaces. Use of any other type of glass crystals or stones can alter the unit's performance. -
Page 58: Optional Driftwood Log Set Installation
HZ54E/HZ40E installation Optional Driftwood Log Set Installation HZ54E/HZ40E - LOG INSTALLATION Read the instructions below carefully and refer to the images. If the logs are broken do not use the unit until they are replaced. Broken logs can interfere with pilot operation. Improper positioning of the logs may create carbon build-up and can alter the unit's performance which is not covered under warranty. - Page 59 HZ54E/HZ40E installation 10. Position Left Log (2) by matching the log and template profi les exactly. 15. Place Front Left log piece on fi rebox fl oor as shown. HZ54E shown - Left Log (2) positioned to match HZ54E shown - Left Log Piece(6) template pro le.
-
Page 60: Glass Door Installation
installation Glass Door Installation 2. With the door in proper position - secure with 3 screws in locations shown The glass door comes with a black trim. 1. To install the trim and glass door, simply hook the top door flange onto the in Diagram 3. -
Page 61: Safety Screen/Inner Door Frame Removal/Installation
installation Safety Screen/Inner Door Frame Removal/ Installation SAFETY SCREEN / INNER DOOR FRAME REMOVAL/INSTALLATION THE INNER DOOR FRAME (3) MUST BE PURCHASED SEPARATELY IN EITHER STAINLESS STEEL OR BLACK 1. The inner door trim (1) and safety screen (2) come attached to the fireplace. 4. -
Page 62: Verona/4 Piece Faceplate Installation
installation verona / 4 piece faceplate installation VERONA / 4 PIECE FACEPLATE INSTALLATION 1) When installing required Safety Screen - See "Safety Screen" instal- lation instructions. 2) Install brackets onto the back of the faceplate - 3 screws for each bracket in locations shown below. -
Page 63: Outer Door Frame Installation
installation Outer Door Frame Installation OUTER DOOR FRAME INSTALLATION Bracket in Unit 1. Install the outer door frame to the unit by hooking the left and right side mounting brackets into the mounting slots at the side of the firebox Tab on Faceplate as shown below. -
Page 64: Operating Instructions
operating instructions Operating Normal Operating Instructions Sounds of Gas Appliances 1. Read and understand these instructions before operating this appliance. It is possible that you will hear some sounds from your gas appliance. This is perfectly normal due to 2. Check to see that all wiring is correct and the fact that there are various gauges and types enclosed to prevent possible shock. -
Page 65: Copy Of Lighting Plate Instructions
operating instructions Copy of Lighting Plate Instructions FOR YOUR SAFETY READ BEFORE LIGHTING This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or Natural Gas and Propane Installation Codes, CSA B149.1. WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. -
Page 66: Maintenance Instructions
maintenance Maintenance Instructions Glass Gasket General Vent Maintenance If the glass gasket requires replacement use a 1. Always turn off the gas and electrical supply tadpole glass gasket (Part # 936-159). before cleaning. For relighting, refer to lighting Conduct an inspection of the venting system semi- instructions. -
Page 67: Valve Assembly Replacement
maintenance Valve Assembly Replacement 8. Remove the burner by sliding it to the right - then lift out. 1. Turn the unit off and allow it to cool down to room temperature. 2. Shut off the gas and power supply to the unit. 3. -
Page 68: Gas Maintenance
maintenance Gas Maintenance Gas Maintenance - Recommended Annual Routine Recommended Annual Routine Maintenance for Gas Fireplaces, Stoves and Inserts In order for your Regency appliance to continue to provide comfort to your home periodic maintenance must be performed to ensure it is operating at peak efficiency. The items in the list should be checked by a licensed gas service technician during the annual service check. Your unit may require more frequent maintenance checks if you notice any changes in how it operates. Operational changes to look for can include, but are not limited to, extended start up time, increased fan noise, residue/carbon build up, white build up on the glass/firebox, increased operating noise etc. Should any of these or other conditions arise, discontinue use and schedule a service check with your local licensed gas technician. The list below shows items your licensed service technician will need to check and service at least annually. Clean Inspect Check • Glass • Pilot assembly • Voltage on thermocouple/thermopile (mil- • Interior bricks / panels • Burner livolt models) • Burner ports & burner air shutter •... -
Page 69: Main Assembly
parts list Main Assembly Part # Description Part # Description 256-038 Frame Door HZ40E 911-032 10 ft. wiring harness 940-361/P Glass Neoceram Flush HZ40E 911-228/P Wall switch receiver 256-039 Bottom Tray HZ40E 910-576 Receiver wall plate (white) 256-525 Burner Assembly NG c/w Cap HZ40E 911-037 Flame Sensor 256-530... -
Page 70: Accessories
parts list Accessories Part # Description 5 pound bag of glass crystals 5 pound bag of firebeads Part # Description Part # Description 256-908 Black Enamel Inner Panels 258-954 Faceplate Black 946-775 Black Reflective Crystals 946-739 Black Firebeads 258-957 Faceplate Brushed Stainless 946-776 Copper Crystals 946-740... - Page 71 notes Regency Horizon ® HZ40E-11 Gas Fireplace...
-
Page 72: Warranty
warranty Limited Lifetime Warranty FPI Fireplace Products International Ltd. (for Canadian customers) and Fireplace Products U.S., Inc. (for U.S. customers) (collectively referred to herein as “FPI”) extends this Limited Lifetime Warranty to the original purchaser of this appliance provided the product remains in the original place of installation. The items covered by this limited warranty and the period of such coverage is set forth in the table below. - Page 73 warranty At all times FPI reserves the right to inspect reported complaints on location in the field claimed to be defective prior to processing or authorizing of any claim. Failure to allow this upon request will void the warranty. All warranty claims must be submitted by the dealer servicing the claim, including a copy of the Bill of Sale (proof of purchase by you).
- Page 74 warranty Limitations of Liability: The original purchaser’s exclusive remedy under this warranty, and FPI’s sole obligation under this warranty, express or implied, in contract or in tort, shall be limited to replacement, repair, or refund, as outlined above. IN NO EVENT WILL FPI BE LIABLE UNDER THIS WARRANTY FOR ANY INCIDENTAL OR CONSEQUENTIAL COMMERCIAL DAMAGES OR DAMAGES TO PROPERTY.
- Page 75 warranty Product Registration and Customer Support: Thank you for choosing a Regency Fireplace. Regency strives to be a world leader in the design, manufacture, and marketing of hearth products. To provide the best support for your product, we request that you complete a product registration form found on our Web Site under Customer Care within ninety (90) days of purchase.
- Page 76 warranty Regency Horizon ® HZ40E-11 Gas Fireplace...
- Page 77 notes Regency Horizon ® HZ40E-11 Gas Fireplace...
- Page 78 notes Regency Horizon ® HZ40E-11 Gas Fireplace...
- Page 79 Regency Horizon ® HZ40E-11 Gas Fireplace...
- Page 80 Installer: Please complete the following information Dealer Name & Address: ______________________________________________ ___________________________________________________________________ Installer: ___________________________________________________________ Phone #: ___________________________________________________________ Date Installed: ______________________________________________________ Serial #: ____________________________________________________________ Horizon HZ40 Product Video Printed in Canada Regency Horizon and SureFire are trademarks of FPI Fireplace Products International Ltd. ©...
