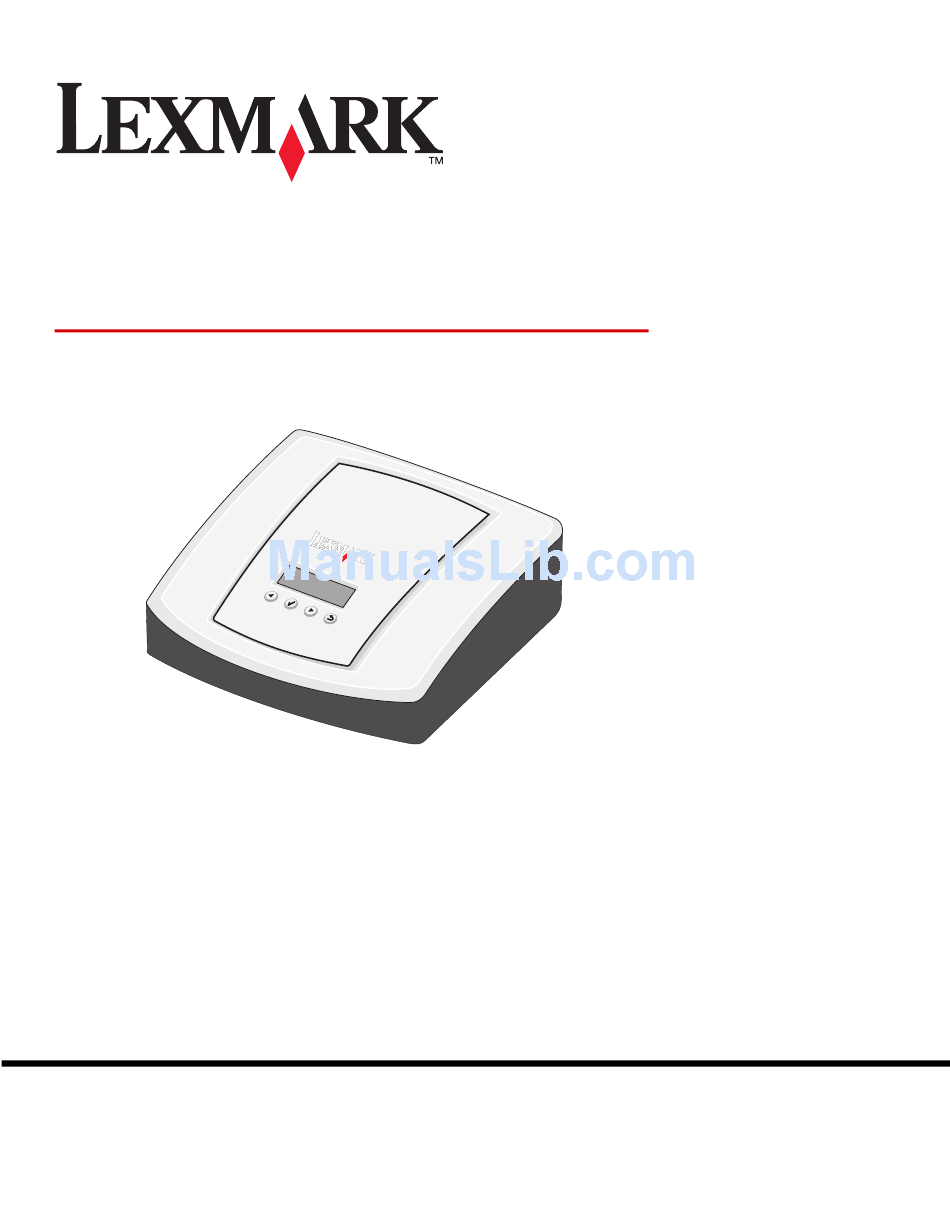

- Page 1 MarkNet N7000e Series Print Server Mac User’s Guide www.lexmark.com January 2006...
- Page 2 Lexington, Kentucky 40550, U.S.A. In the United Kingdom and Eire, send to Lexmark International Ltd., Marketing and Services Department, Westhorpe House, Westhorpe, Marlow Bucks SL7 3RQ. Lexmark may use or distribute any of the information you supply in any way it believes appropriate without incurring any obligation to you. You can purchase additional copies of publications related to this product by calling 1-800-553-9727.
- Page 3 Introduction The Lexmark MarkNet N7000e Series Print Server makes it easy for you to: • Share your printer between two or more network computers. • Locate your printer anywhere in your home or office. You no longer need to locate the printer next to a host computer or make sure a host computer is powered on before sending your print job from a remote location.
-
Page 4: Connecting The Hardware
Setup Requirements For setup, you need: • The Lexmark MarkNet N7000e Series Print Server • An existing Ethernet (10/100 Base TX) network • An Ethernet (RJ-45, category 5) cable, purchased separately • A network-capable printer To find out if your printer is network-capable, or for other printer-specific information, refer to the documentation that came with your printer or visit our Web site at: http://support.lexmark.com. - Page 5 Understanding the print server LCD, buttons, and indicator lights The printer type(s) will appear on the Liquid Crystal Display (LCD), and you can use the left or right navigation buttons to scroll to a Menu option. If your print server is a four-port model, the LCD displays the printer model that is connected to each port.
- Page 6 Troubleshooting Use this section to solve problems you may have while setting up your print server. For this problem The LCD is not on. The network indicator lights are off. The print server was not automatically discovered. The network printer does not print. Troubleshooting See page...
-
Page 7: The Print Server Was Not Automatically Discovered
The LCD is not on If the LCD backlight is not illuminated after the power supply cord is plugged into an electrical outlet, make sure: • The power supply is properly connected to the print server and the electrical outlet. •... -
Page 8: The Network Printer Does Not Print
The network printer does not print • Make sure all cables to the printer, print server, electrical outlet, and network connection are secure. • Make sure the network indicator lights are on. • Check the printer status. For more information see page 11. •... -
Page 9: Table Of Contents
Use this chapter to find out how to perform common tasks related to your print server and network printer To perform this task Print a print server setup page. Check the printer status. Change the print server network settings. Use a media drive. Use the LCD features/options. Contact Lexmark. How Do I?... See page... -
Page 10: Print A Print Server Setup Page
Print a print server setup page The setup page lists the network settings, such as the IP address, Netmask, Gateway, DHCP status, and so on. To print a print server setup page, do one of the following: From the print server operator panel: Press until Menu appears, and then press Press... -
Page 11: Change The Print Server Network Settings
Check the printer status From the Dock, click the Finder icon. From the Finder window, click the Applications icon in the sidebar. Double-click the Utilities folder. Double-click Print Center or Print Setup Utility. Select your printer in the printer list. From the Printers menu, choose Make Default. -
Page 12: Use The Lcd Features/Options
Use the LCD features/options Several menus appear on the print server’s LCD. These menus let you view and configure the print server settings. Reports menu Purpose Setup Page Prints a setup page with configuration information. Print Menus Prints a list of available print menus and their current settings. -
Page 13: Contact Lexmark
Router Address Displays the router address. Enable DHCPv6 Enables or disables DHCPv6 address configuration method. Contact Lexmark Visit our Web site at www.lexmark.com to: • Register your print server. • View an up-to-date list of supported printers. • Receive customer support. - Page 14 Glossary DHCP—Dynamic Host Configuration Protocol, a protocol for assigning dynamic IP addresses to devices on a network. With dynamic addressing, a device can have a different IP address every time it connects to the network. This means that a new device can be added to a network without having to manually assign a unique IP address.
- Page 15 This limited warranty applies to this product only if it was originally purchased for your use, and not for resale, from Lexmark or a Lexmark Remarketer, referred to in this statement as “Remarketer.” Limited warranty Lexmark warrants that this product: •...
- Page 16 Note: To assure compliance with FCC regulations on electromagnetic interference for a Class A computing device, use a properly shielded and grounded cable such as Lexmark part number 1329605 for parallel attach or 12A2405 for USB attach. Use of a substitute cable not properly shielded and grounded may result in a violation of FCC regulations.
- Page 17 If this label appears on your product, the accompanying statement is applicable. Korean MIC statement Taiwan BSMI notice...
- Page 18 Note: To assure compliance with FCC regulations on electromagnetic interference for a Class B computing device, use a properly shielded and grounded cable such as Lexmark part number 1329605 for parallel attach or 12A2405 for USB attach. Use of a substitute cable not properly shielded and grounded may result in a violation of FCC regulations.
- Page 19 Korean MIC statement Taiwan BSMI notice ENERGY STAR Waste from Electrical and Electronic Equipment (WEEE) directive The WEEE logo signifies specific recycling programs and procedures for electronic products in countries of the European Union. We encourage the recycling of our products. For contact information regarding the Waste from Electrical and Electronic Equipment (WEEE) directive, refer to the Notices section of the online User's Guide that shipped with your printer.
