GTS/DEC/003
Bit synchronizer and PCM decommutator PCI board (20Mbps) - 1ch
Key Features
Bit error rate performance within 1dB of theory
Bit-rates up to 20Mbps (NRZ-L codes)
NRZ-L/M/S, BIØ-L, derandomizer (11,13,15,17, 23)
Sync word length up to 64 bits
0 to 16 bits sync word error tolerance
4 to 64 bits per word
Supports digital IRIG-B 000, 001, 002, 003
time formats
Applications
Real-time ground stations
Telemetry data links
INFO: CURTISSWRIGHTDS.COM
EMAIL: DS@CURTSSWRIGHT.COM
4 Apr. 2019 | DST/W/132
Overview
The GTS/DEC/003 reconstructs a serial PCM data stream from a source
that has been corrupted by noise, phase jitter, amplitude modulation, or
base line variations. The all-digital design utilizes one independent,
programmable matched filter and Phase Locked Loop (PLL) to track
deviations in the bit-rate of the received signals.
The recovered data is then decommutated into frames. Each minor frame
can be tagged with time from an IRIG-B source to an accuracy of 1μs.

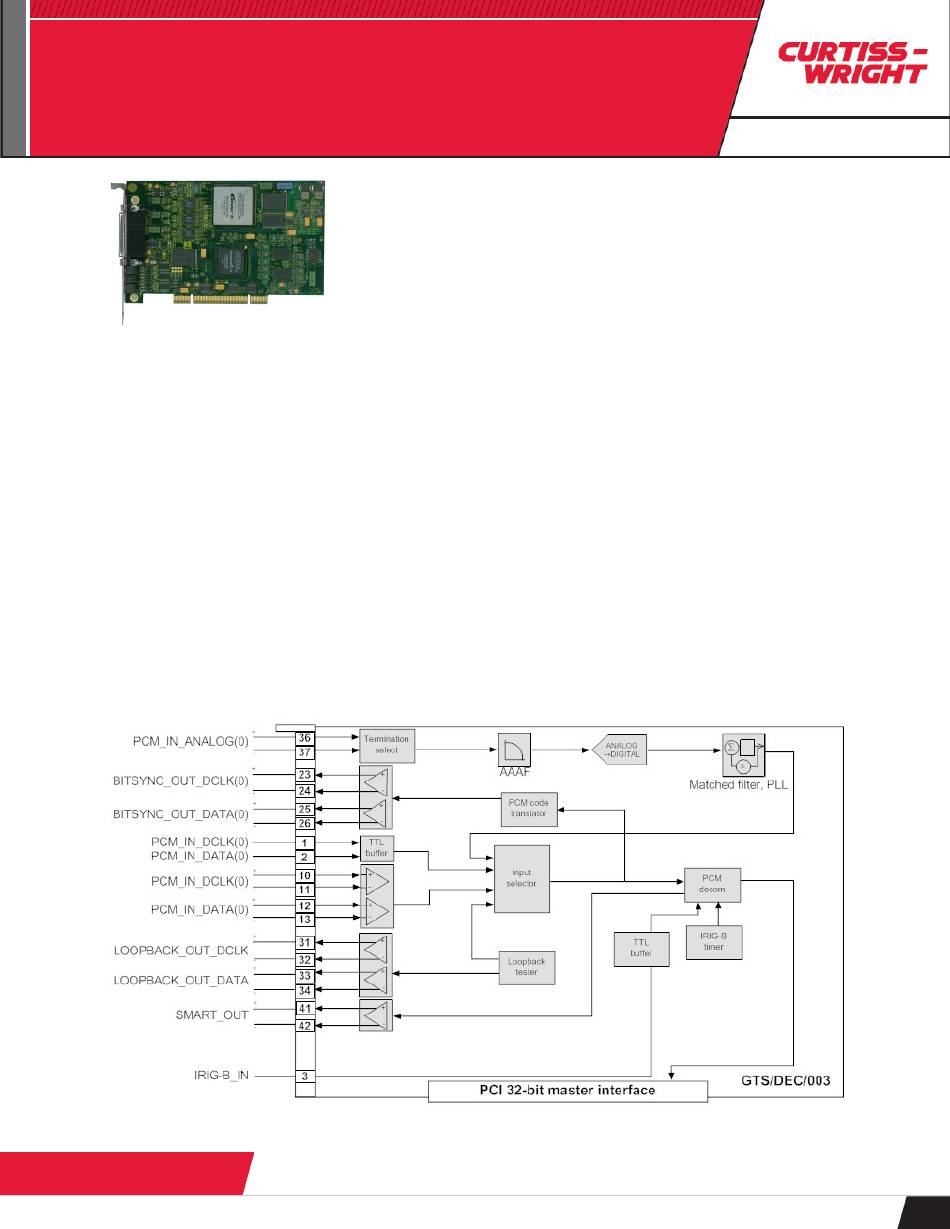

Figure 1: Bit synchronizer and PCM decommutator channel
CURTISSWRIGHTDS.COM
GTS/DEC/003/C
1
