GTS/DEC/006
Smart Source Selector and PCM decommutator PCI board
(20Mbps) - 3ch
Key Features
Bit error rate performance within 1dB of theory
Bit-rates up to 20Mbps (NRZ-L codes)
Uses signal quality estimates to weigh input signals
Yields performance gain of up to 4.7dB when
all channels are used
NRZ-L/M/S, BIØ-L, derandomizer (11,13,15,17, 23)
Sync word length up to 64 bits
0 to 16 bits sync word error tolerance
4 to 64 bits per word
Supports digital IRIG-B 000, 001, 002, 003
time formats
Applications
Real-time ground stations
Telemetry data links

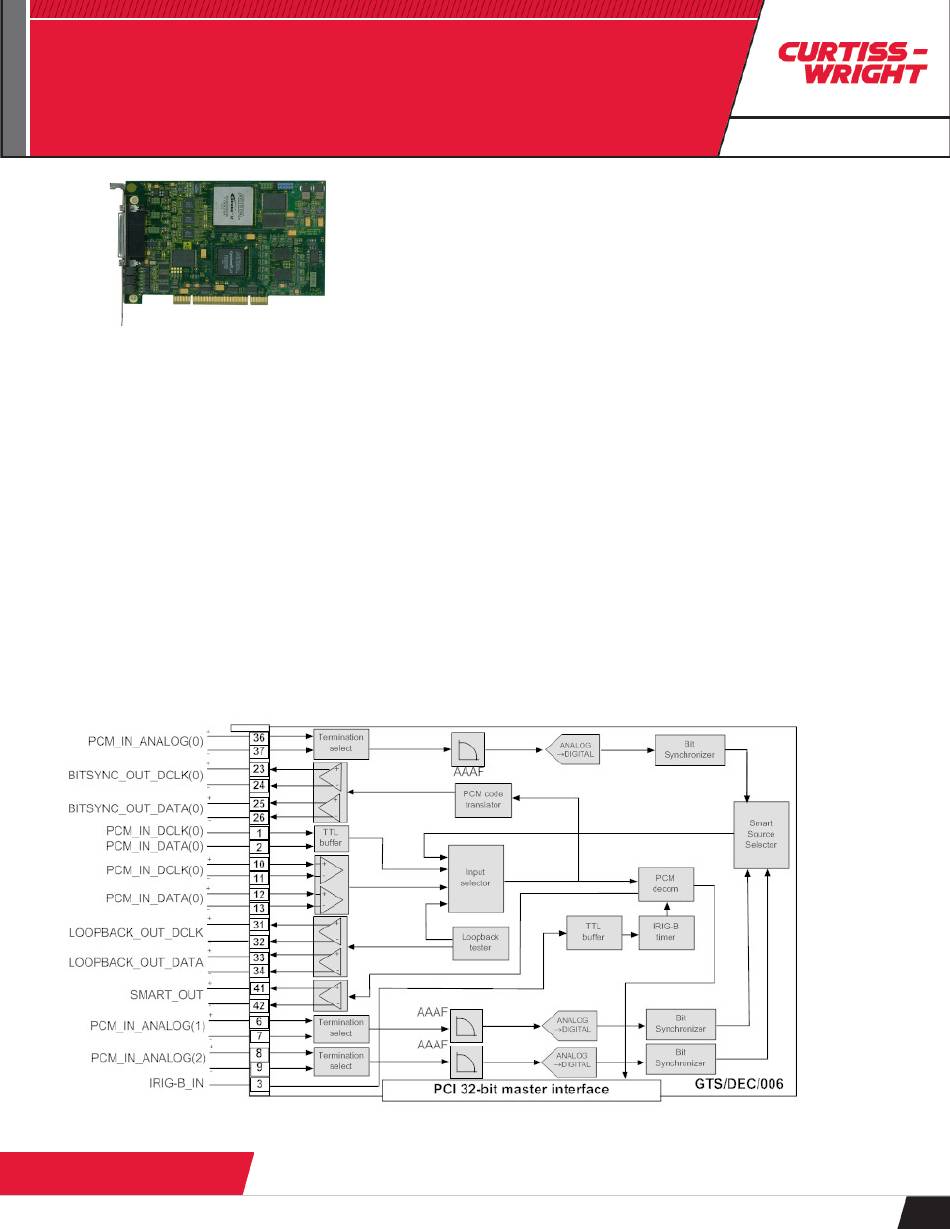

Figure 1: Three bit synchronizers, Smart Source Selector and PCM decommutator channels
INFO: CURTISSWRIGHTDS.COM
EMAIL: DS@CURTSSWRIGHT.COM
4 Apr. 2019 | DST/Y/040
Overview
The GTS/DEC/006 reconstructs a serial PCM data stream from a source
that has been corrupted by noise, phase jitter, amplitude modulation, or
base line variations. The all-digital design utilizes three independent,
programmable matched filters and Phase Locked Loops (PLL) to track
deviations in the bit-rate of the received signals.
The output from the bit synchronizers is fed into the Smart Source
Selector thereby producing a hard decision (1 or 0) based on the signal
quality of the received bits. If the soft values are shifted in time, data is
re-aligned prior to combining the soft values.
The recovered data is then decommutated into frames. Each minor frame
can be tagged with time from an IRIG-B source to an accuracy of 1μs.
CURTISSWRIGHTDS.COM
GTS/DEC/006/C
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the GTS/DEC/006 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Curtiss-Wright GTS/DEC/006

  • Page 1 (20Mbps) - 3ch CURTISSWRIGHTDS.COM Overview The GTS/DEC/006 reconstructs a serial PCM data stream from a source that has been corrupted by noise, phase jitter, amplitude modulation, or base line variations. The all-digital design utilizes three independent, programmable matched filters and Phase Locked Loops (PLL) to track deviations in the bit-rate of the received signals.
  • Page 2: Specifications

    PCM_IN_DATA(0)± – – Mbps NRZ-L/M/S, RNRZ-L 11/13/15/17/23. PCM_IN_DATA(0)± – – Mbps BIØ-L. © 2019 Curtiss-Wright. All rights reserved. Specifications are subject to change without notice. CURTISSWRIGHTDS.COM All trademarks are the property of their respective owners. 4 Apr. 2019 | DST/Y/040...
  • Page 3 GTS/DEC/006 TABLE 3 RS-422 inputs (continued) PARAMETER MIN. TYP. MAX. UNITS CONDITION/DETAILS Input voltage operating range – Do not exceed operating range. logic 0 – – -0.2 logic 1 -0.01 – – common mode voltage – overvoltage protection – Voltages outside of this range can damage input.
  • Page 4 GTS/DEC/006 TABLE 5 Bit synchronizer inputs PARAMETER MIN. TYP. MAX. UNITS CONDITION/DETAILS Inputs – – – Input signal amplitude PCM_IN_ANALOG[2:0] – Peak-to-peak. Input sources – – – – Single ended or differential (selectable via jumpers). Impedance – – – –...
  • Page 5 Getting the most of the GTS/DEC/006 The GTS/DEC/006 is a half-length PCI-form board and is not currently verified for use in a PCI-X slot. Voltage levels are 3.3 or 5 volts. Dimensions are: W = 0.6 inches (15.24 mm) x D = 6.9 inches (175.26 mm) × H = 4.2 inches (106.68 mm).
  • Page 6 Loopback tester The GTS/DEC/006 features a loopback tester, which transmits a PCM frame to allow system checks. The loopback tester transmits frames as configured in the XidML setup. The loopback tester allows for dynamic and fixed data to be transmitted. The first eight parameters transmitted are dynamic counters that rollover to zero.
  • Page 7 Connects a 120Ω load between the + input and the - input for differential ended signals. An RS-422 signal can be connected to the GTS/DEC/006 as a single ended input, by connecting either the (+) or (-) of the RS-422 signal and the RS-422's ground reference to the GTS/DEC/006 bit sync input and ground.
  • Page 8 GTS/DEC/006 4 to 16 bits Last word First word Second word PCM data Sync word in frame in frame in frame Minor frame pulse/sync word found pulse 1 bit 1 bit Figure 4: Minor frame pulse and sync word found pulse signals When searching, the data rate is adjusted when the buffer is re-centred.
  • Page 9 GTS/DEC/006 Connector pinout of the GTS/DEC/006 Pin 1 Pin 16 Pin 44 Figure 5: Connector pins NAME SEE SPECIFICATIONS TABLE COMMENT PCM_IN_DCLK(0) BTTL inputs PCM clock PCM_IN_DATA(0) BTTL inputs PCM data IRIG-B_IN BTTL inputs IRIG-B-002 input Do not connect GTS-500 internal ground...
  • Page 10 DOC/USG/016 Ground Station Boards User Guide DOC/MAN/030 DAS Studio 3 User Manual © 2019 Curtiss-Wright. All rights reserved. Specifications are subject to change without notice. CURTISSWRIGHTDS.COM All trademarks are the property of their respective owners. 4 Apr. 2019 | DST/Y/040...
