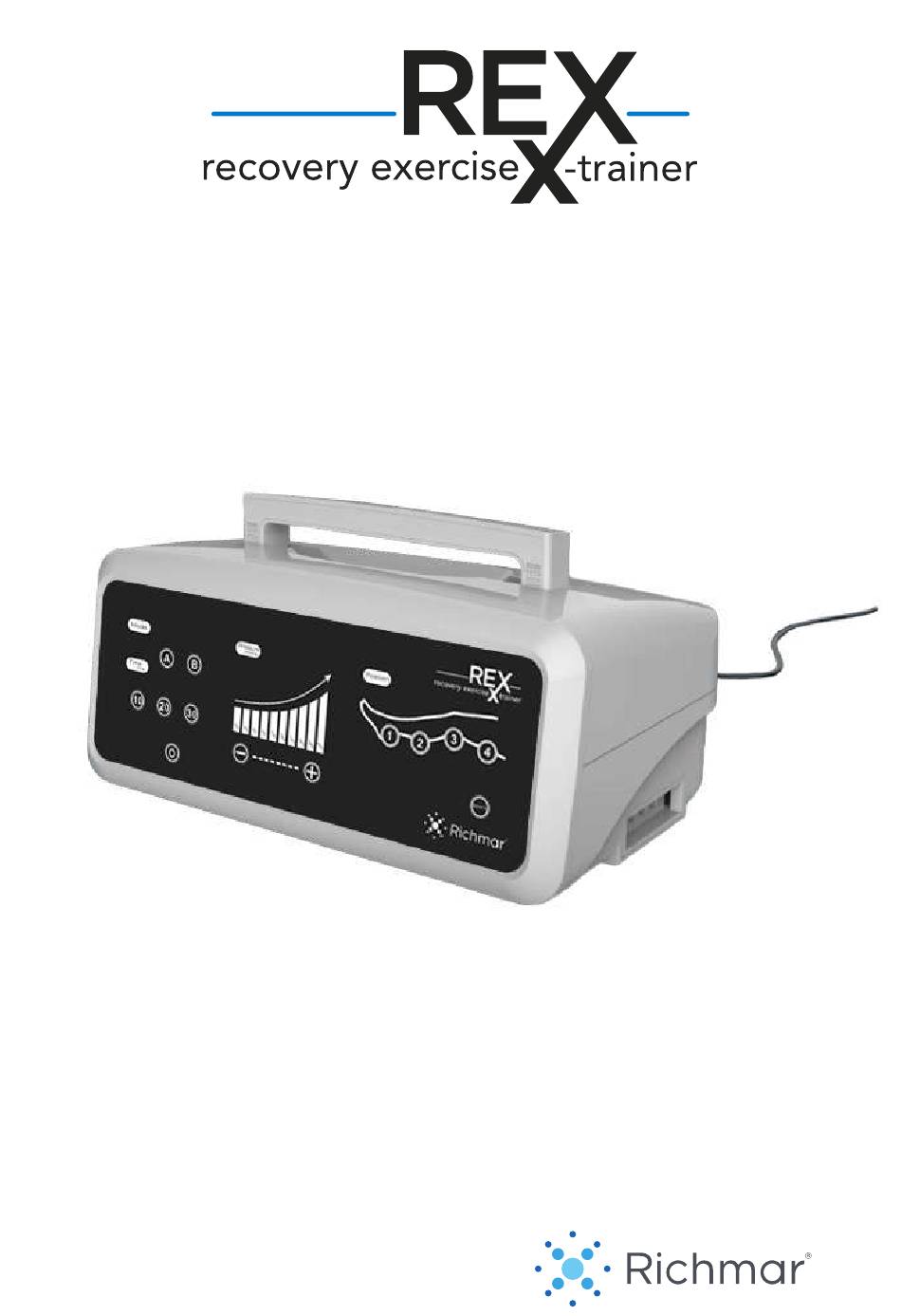

- Page 1 Combo Pneumatic Compression System USER MANUAL 3507.22.01.A...
-
Page 2: Table Of Contents
Table of Contents INTRODUCTION ..............................1 IMPORTANT SAFETY INFORMATION SYMBOL DEFINITIONS ............2 BASIC SAFETY PRECAUTIONS ........................3 GENERAL SPECIFICATIONS ......................... 5 INDICATIONS FOR USE ..........................5 CONTRAINDICATIONS ............................ 5 SYSTEM AND COMPONENTS ........................6 OPERATING INSTRUCTIONS ........................7 MAINTENANCE AND STORAGE ........................10. -
Page 3: Introduction
The durable, high quality material used in the manufacturing of these products will ensure that you experience long-lasting and uninterrupted performance. The REX Recovery Exercise X-trainer has a pump and dual lower extremity garments with air cells. The patient puts the garments on, the pump inflates the air cells to compress muscles, promote venous blood return and to help prevent deep venous thrombosis. -
Page 4: Important Safety Information Symbol Definitions
2. IMPORTANT SAFETY INFORMATION SYMBOL DEFINITIONS Symbol Explanation Location On back of device and instruction manual Refer to Documentation before using The Pump is Class II Protection On back of device The garments is Type BF-Applied part On back of device Separate collection for waste electrical and electronic equipment. -
Page 5: Basic Safety Precautions
The precautionary instructions found in this section and throughout this manual are indicated by specific symbols. Understand these symbols and their definitions before operating this equipment. The definition of these symbols are as follows. Caution: Text with a “CAUTION” indicator will explain possible safety infractions that could have the potential to cause minor to moderate injury or damage to equipment. - Page 6 WARNINGS: • Only use the power supply provided with the system. • To avoid risk of strangulation, DO NOT leave a baby or child unattended with or near the power supply or tubing. • The attachments are designed for single person use only. •...
-
Page 7: General Specifications
4. GENERAL SPECIFICATIONS MAIN MACHINE The REX Recovery Exercise X-trainer includes the main pump, dual lower extremity garments and backpack. DIMENSIONS: 285mm H x 175mm W x 130mm D WEIGHT: 2.6 Kg Power: 110-125Vac 60Hz 50VA Power Plug: JL-201 AC125V 10A 2-pole without earthling contact. -
Page 8: System And Components

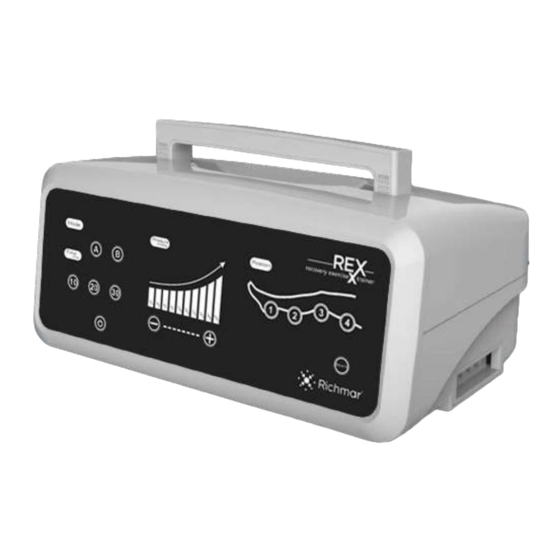

7. SYSTEM AND COMPONENTS Pneumatic Compression Pump CONTROLS & DISPLAY Position Setting Mode Setting Timer Setting Power On/O Pressure Setting Start/Pause Garments for Leg Use... -
Page 9: Operating Instructions
CONNECT WITH PUMP 8. OPERATING INSTRUCTIONS WARNING When removing the garments from the packaging, avoid using sharp objects that could puncture or tear the garment. 1. Plug the pump into an outlet close to where the treatment will be administered. 2. - Page 10 5. There are two pumping modes to choose from. Please see the below pictures for the correct therapeutic Mode A or B. 6. Set the timer by choosing between 10, 20 or 30 mins. When the timer is done, the device will automatically stop and go into standby mode.
- Page 11 7. Set the pressure setting based on physician recommendation. If no parameters are given by a physician, it is recommended to start with the minimum pressure and gradually increase. Pressure should not be uncomfortable or cause pain. The pressure setting ranges from 20 to 200mm Hg (+/-20mm Hg). The max pressure of the pump core is 230 to 260mmHg.
-
Page 12: Maintenance And Storage
WARNING DO NOT try to service or maintain the device while in use. 9. MAINTENANCE AND STORAGE WARNING Only an authorized technician may open the pump. Before cleaning, unplug power cord from electrical outlet. DO NOT allow liquids to enter the pump, as this can present an electrical hazard. ALWAYS allow the pump to dry before using. -
Page 13: Device Storage
10. DEVICE STORAGE The device should be stored in a clean, dry area between 59 to 77°F (15 to 25°C). However, short-term exposure to temperatures -4 to 111°F (-20 to +44°C) will not harm the unit. To maximize the pump’s life, time should be allowed for the pump to adjust to room temperature when it has been exposed to extreme temperatures. -
Page 14: Electrical Specifications/Equipment Classification
12. ELECTRICAL SPECIFICATIONS/EQUIPMENT CLASSIFICATION The device’s interior components are “double insulated” and do not require a “protective ground.” The device is equipped with an 18 gauge, 2-wire, 6.5ft. Power cord, secured through the pump casing with a Heyco strain relief brushing as well as an additional “hold-down” clamp for added safety. 1. - Page 15 voltage variations of the device requires continued operation <5 % U (>95% dip in U ) <5 % U (>95% dip in U ) for 1 cycles for 1 cycles during power mains interruptions, it is on power supply recommended that this device be powered 70% U (30% dip in U 70% U (30% dip in U input lines...
- Page 16 Over the frequency range 150 kHZ to 80 MHz, field strengths should be less than 3 V/m. Recommended separation distances between portable and mobile RF communications equipment and this device This device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or user of this device can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the device as recommended below, according to the maximum output power of the communications equipment.
-
Page 17: Warranty Information
13. WARRANTY INFORMATION Please contact your dealer in case of a claim under the warranty. If you have to send the unit back to your provider, enclose a copy of your receipt and state what the defect is. The following warranty terms apply: 1.
