Lexmark E360dtn Supplementary Manual

Lexmark™ E360
Clearing Jams Guide

Clearing jams

Avoiding jams

The following hints can help you avoid jams:
• Use only recommended paper or specialty media. For more
information, see the User's Guide.
•
Do not load too much paper. Make sure the stack height does
not exceed the indicated maximum heig's ht.
•
Do not load wrinkled, creased, damp, bent, or curled paper.
•
Flex, fan, and straighten paper before loading it.
• Do not use paper that has been cut or trimmed by hand.
• Do not mix paper sizes, weights, or types in the same stack.
• Do not feed envelopes that:
– Have excessive curl or twist
– Have windows, holes, perforations, cutouts, or embossing
– Have metal clasps, string ties, or folding bars
–
Have an interlocking design
–
Have postage stamps attached
–
Have any exposed adhesive when the flap is in the sealed
or closed position
–
Have bent corners
–
Have rough, cockle, or laid finishes
– Are stuck together or damaged in any way
• Store the paper in an appropriate environment.
• Do not remove trays while the printer is printing.
•
Do not load the multipurpose feeder while the printer is
printing. Load the multipurpose feeder prior to printing, or
wait for a prompt to load it.
• Push all trays in firmly after loading paper.
• Make sure the guides in the trays are properly positioned and
are not pressing too tightly against the paper.
• Make sure all sizes and types are set correctly in the printer
control panel menu.
• Make sure all printer cables are attached correctly. For more
information, see the setup documentation.
Identifying jams in the paper
path

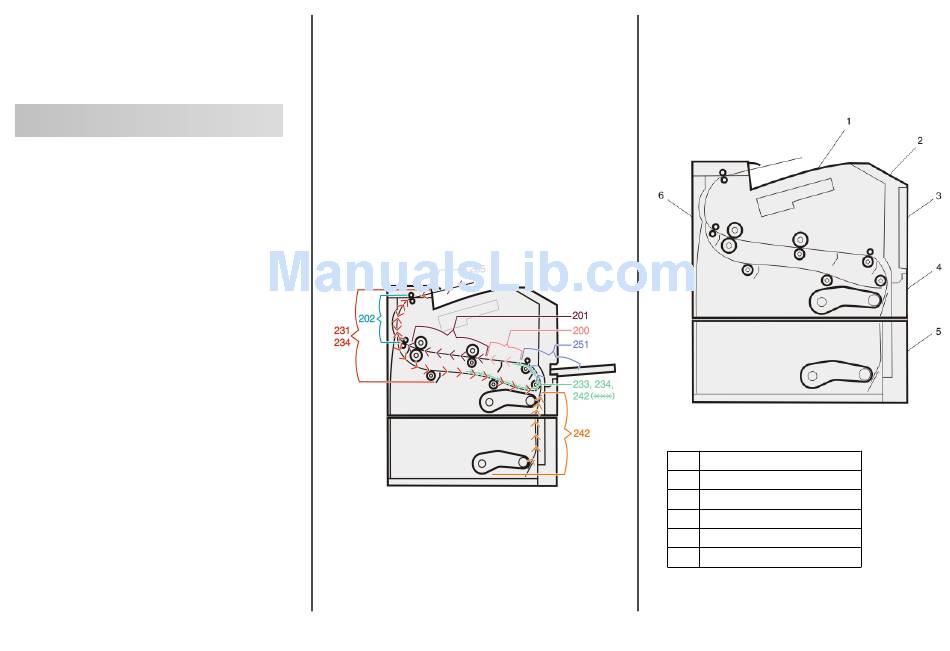

The following illustration shows the path that paper travels
through the printer. The path varies depending on the input
source (tray or feeder) and depending on whether a duplex
(two-sided) print job is being sent.
When a jam occurs, a jam message appears, indicating the region
of the jam or the number of jammed sheets. The three-digit jam
prefix numbers are given in the following illustration to show
where each jam occurs.
Understanding jam messages
and locations
Note: To resolve any message, all paper or specialty media must
be cleared from the entire paper path.
1
Open doors and covers, and remove trays to access jam locations.
The following illustration and table indicate these locations. See
"Jam message numbers and how to access each jam" on
page 2 for a list of jam numbers and instructions for how to
access each jam.
1 Standard exit bin
2 Front door
3 Multipurpose feeder door
4 Tray 1
5 Optional 250- or 550-sheet tray (Tray 2)
6
Rear door
