POWER CONNECTIONS
●
Connect the power cord as follows:
L (live) =brown
E (earth) =yellow/green
N (neutral) =blue
Before power connection, please ensure the power supplied must match what the nameplate says. It is recommended that each
projector be connected with power separately so that they may be individually switched on and off.
The earth wire(yellow/green) must be connected to the ground. And electrical connection must be in
●
accordance with the standards concerned.
If any questions about the electrical installation, do not continue but consult a qualified electrician.
●

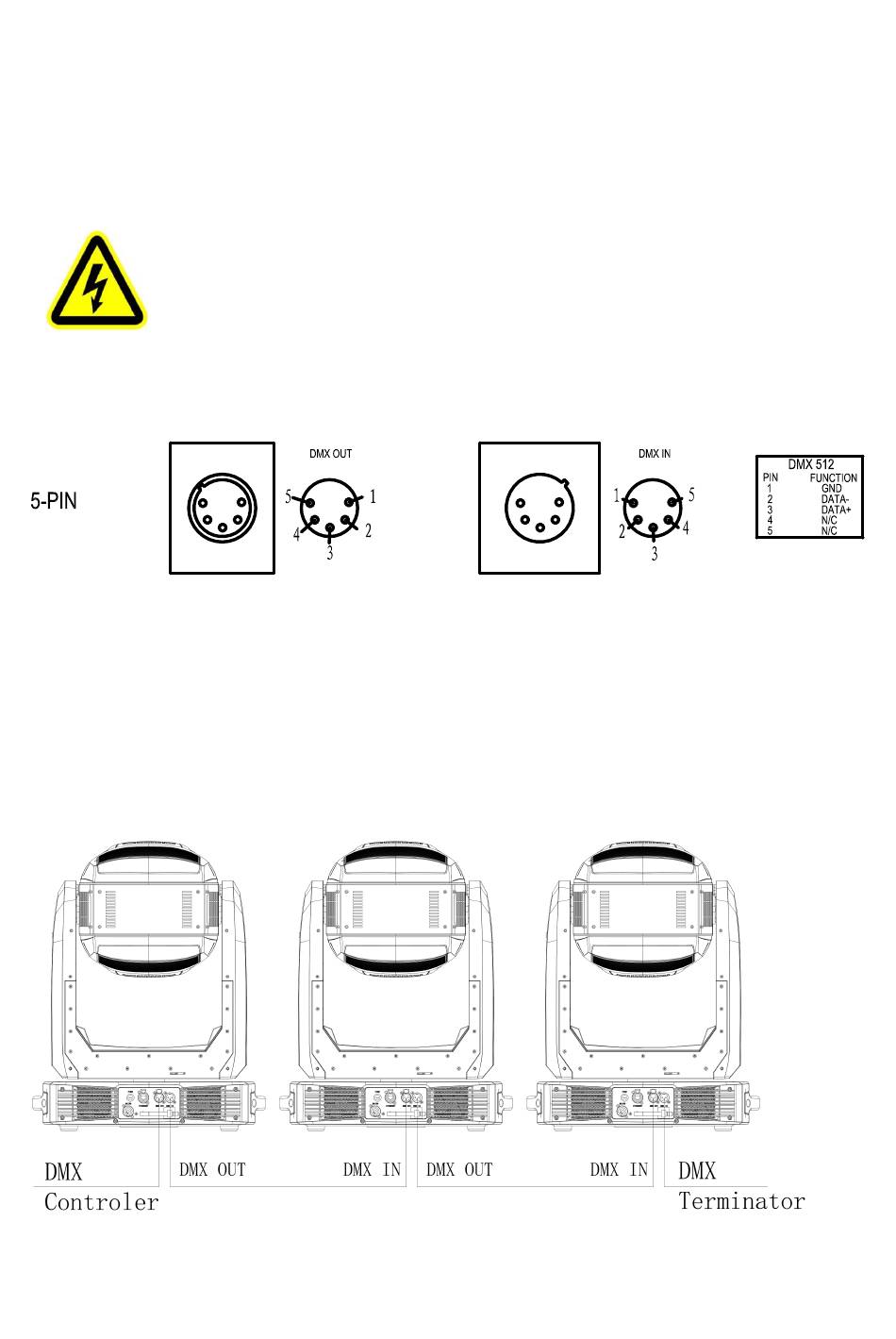

DMX CONTROLCONNECTION
●
Connection between controller and projector and between one projector and another must be made with a twin-screened cable, with
each wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon 5 pin (which are included with the
projector) or 5 pin XLR plugs and sockets. The XLR's are connected as shown in the figure above.
Note: care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. XLR plugs and sockets
mustn't be connected in any way other than mentioned in the above figure. The projector accepts digital control signals in protocol
DMX512 (1990).
Connect the controller's DMX output to the first fixture's DMX input, and connect the first fixture's DMX output to the second
fixture's DMX input and connect the rest fixtures in the same way. Eventually connect the last fixture's DMX output to a DMX
terminator as shown in the figure below.
DMX TERMINATOR
●
