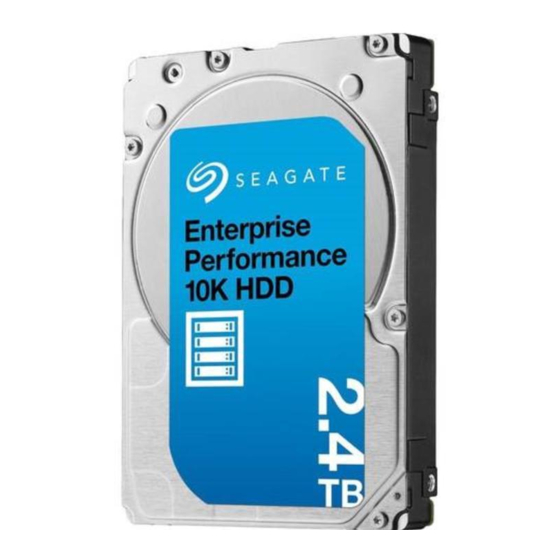

Seagate ST2400MM0129 Product Manual

Enterprise performance 10k hdd
Hide thumbs
Table of Contents

Advertisement

Quick Links

Enterprise Performance
Standard Models
Self-Encrypting Drive
SED FIPS140-2 Models
Instant Secure Erase
* Default configuration is 512E for 512E / 4KN drives.
See
10K HDD
v9 SAS Product Manual
512E*/4KN
ST2400MM0129
ST1800MM0129
ST1200MM0129
ST600MM0099
(SED) Models
ST2400MM0139
ST1800MM0139
ST1200MM0139
ST600MM0109
Review Pending
ST2400MM0149
ST1800MM0149
ST1200MM0149
(ISE) Models
ST2400MM0159
ST1800MM0159
ST1200MM0159
ST600MM0119
to Fast Format to 4KN in seconds
Section 4.2.2
Not all drives may be available in all countries.
100818015 Rev. D
July 2017
512N
Standard Models
ST1200MM0009
ST600MM0009
Self-Encrypting Drive
(SED) Models
ST1200MM0039
ST600MM0039
SED FIPS140-2 Models
Review Pending
ST1200MM0069
Instant Secure Erase
(ISE) Models
ST1200MM0099
ST600MM0069

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST2400MM0129 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Seagate ST2400MM0129

Summary of Contents for Seagate ST2400MM0129

  • Page 1 Enterprise Performance 10K HDD v9 SAS Product Manual 512E*/4KN 512N Standard Models Standard Models ST2400MM0129 ST1200MM0009 ST1800MM0129 ST600MM0009 ST1200MM0129 ST600MM0099 Self-Encrypting Drive Self-Encrypting Drive (SED) Models (SED) Models ST2400MM0139 ST1200MM0039 ST1800MM0139 ST600MM0039 ST1200MM0139 ST600MM0109 SED FIPS140-2 Models SED FIPS140-2 Models...
  • Page 2 Seagate, Seagate Technology and the Spiral logo are registered trademarks of Seagate Technology LLC in the United States and/or other countries. Seagate Enterprise Performance 10K HDD and SeaTools are either trademarks or registered trademarks of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. The FIPS logo is a certification mark of NIST, which does not imply prod- uct endorsement by NIST, the U.S., or Canadian governments.

  • Page 3: Table Of Contents

    Seagate® Technology Support Services ........
  • Page 4 Mechanical specifications ..............39 Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)
  • Page 5 Seagate RAID Rebuild ™ ..............46 Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)
  • Page 6 Additional information ...............65 Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)
  • Page 7 SAS transmitters and receivers..............64 Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)

  • Page 8: Seagate® Technology Support Services

    For information regarding online support and services, visit: http://www.seagate.com/about/contact-us/technical-support/ For information regarding Warranty Support, visit: http://www.seagate.com/support/warranty-and-replacements/ For information regarding data recovery services, visit: http://www.seagate.com/services-software/data-recovery-services/ For Seagate OEM, Distribution partner portal and reseller portal, visit: http://www.seagate.com/partners Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)

  • Page 9: Scope

    (available on 512E/4Kn only). Seagate Enterprise Performance 10K HDD drives support the SAS Protocol specifications to the extent described in this manual. The SAS Interface Manual (part number 100293071) describes the general SAS characteristics of this and other Seagate SAS drives. The Self-Encrypting Drive Reference Manual, part number 100515636, describes the interface, general operation, and security features available on Self-Encrypting Drive models.

  • Page 10: Applicable Standards And Reference Documentation

    Mounting by bottom holes must meet the requirements of Section 10.3. Standards The Seagate Enterprise Performance 10K HDD family complies with Seagate standards as noted in the appropriate sections of this manual and the Seagate SAS Interface Manual, part number 100293071.

  • Page 11: Electromagnetic Compliance

    Lead (Pb), in electronic products effective July 2006. A number of parts and materials in Seagate products are procured from external suppliers. We rely on the representations of our suppliers regarding the presence of RoHS substances in these parts and materials. Our supplier contracts require compliance with our chemical substance restrictions, and our suppliers document their compliance with our requirements by providing material content declarations for all parts and materials for the disk drives documented in this publication.

  • Page 12: China Requirements - China Rohs 2

    TCG Storage Security Subsystem Class Enterprise Specification, Rev. 1.0 Self-Encrypting Drives Reference Manual Seagate part number: 100515636 In case of conflict between this document and any referenced document, this document takes precedence. Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)

  • Page 13: General Description

    Opening the HDA for any reason voids the warranty. Seagate Enterprise Performance 10K HDD drives use a dedicated load/unload zone at the outermost radius of the media to eliminate the possibility of destroying or degrading data by landing in the data zone. The heads automatically go to the ramp load/unload when power is removed from the drive and during the deeper sleep modes.

  • Page 14: Media Description

    To provide a stable target capacity environment and at the same time provide users with flexibility if they choose, Seagate recommends product planning in one of two modes: Seagate designs specify capacity points at certain block sizes that Seagate guarantees current and future products will meet.

  • Page 15: Programmable Drive Capacity

    • The Safety and Regulatory Agency Specifications, part number 75789512, is usually included with each standard OEM drive shipped, but extra copies may be ordered. Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)

  • Page 16: Performance Characteristics

    Performance characteristics This section provides detailed information concerning performance-related characteristics and features of Seagate Enterprise Performance 10K HDD drives. Internal drive characteristics 2400GB 1800GB 1200GB 600GB Models Sector size 4KN or 512E 4KN or 512E 4KN or 512E / 512N...

  • Page 17: Fast Format

    *Assumes no errors and no relocated logical blocks. Rate measured from the start of the first logical block transfer to or from the host. ** MiB/s x 1.048 = MB/s Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)

  • Page 18: Start/Stop Time

    14 and 15) does not set up a new segment size. If the STRICT bit in Mode page 00h (byte 2, bit 1) is set to one, the drive responds as it does for any attempt to change an unchangeable parameter. Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)

  • Page 19: Caching Write Data

    NVC when there is an unexpected power loss to the drive. The NVC has 90-day data retention. When WCE=1, a Advanced Caching drive will operate on writes like a standard drive–writes in cache are not protected by NVC and may be lost with power loss. Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)

  • Page 20: Reliability Specifications

    An interface error is defined as a failure of the receiver on a port to recover the data as transmitted by the device port connected to the receiver. The error may be detected as a running disparity error, illegal code, loss of word sync, or CRC error. Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)

  • Page 21: Reliability And Service

    Reliability and service The reliability of Seagate Enterprise Performance 10K HDD disk drives can be enhanced by ensuring that the drive receives adequate cooling. Section 6.0 provides temperature measurements and other information that may be used to enhance the service life of the drive.
  • Page 22 If the number of errors does not exceed the threshold before the interval expires, the error rate is considered to be acceptable. In either case, the interval and failure counters are reset and the process starts over. Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)

  • Page 23: Thermal Monitor

    5.2.5 Thermal monitor Seagate Enterprise Performance 10K HDD drives implement a temperature warning system which: Signals the host if the temperature exceeds a value which would threaten the drive. Saves a S.M.A.R.T. data frame on the drive which exceeds the threatening temperature value.
  • Page 24 “not ready” cause. While not technically part of DST, a Not Ready condition also qualifies the drive to be returned to Seagate as a failed drive. A Drive Not Ready condition is reported by the drive under the following conditions: •...

  • Page 25: Product Warranty

    When transporting or shipping a drive, use only a Seagate-approved container. Keep the original box. Seagate approved containers are easily identified by the Seagate Approved Package label. Shipping a drive in a non-approved container voids the drive warranty. Seagate repair centers may refuse receipt of components improperly packaged or obviously damaged in transit. Contact an authorized Seagate distributor to purchase additional boxes.

  • Page 26: Physical/Electrical Specifications

    When the drive receives a command, all power condition timers are suspended if they were enabled via the Power Condition mode page. Once all outstanding commands are processed, the power condition timers are reinitialized to the values defined in the Power Condition mode page. Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)

  • Page 27: Powerchoice Reporting Methods

    Operation at 6.0Gb mode reduces the +5V supply load by 15mA with a commensurate power reduction of 75mW. There is no measurable impact to the 12V supply load when running at lower interface speeds. Note Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)
  • Page 28 Maximum DC 0.92 0.28 7.94 Maximum (peak) DC 1.31 1.42 Operating current (sequential write) Typical DC 0.74 0.28 6.98 Maximum DC 0.77 0.28 7.19 Maximum (peak) DC 0.97 1.45 Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)
  • Page 29 Maximum DC 0.88 0.22 7.04 Maximum (peak) DC 1.22 0.43 Operating current (sequential write) Typical DC 0.70 0.22 6.09 Maximum DC 0.72 0.23 6.30 Maximum (peak) DC 0.98 1.39 Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)
  • Page 30 Maximum DC 0.93 0.17 6.63 Maximum (peak) DC 1.38 1.23 Operating current (sequential write) Typical DC 0.71 0.16 5.50 Maximum DC 0.74 0.17 5.67 Maximum (peak) DC 0.97 0.37 Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)
  • Page 31 Operating condition is defined as random 8 block reads. During idle, the drive heads are relocated every 30 seconds to a random location within the band from three-quarters to maximum track. Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)

  • Page 32: Conducted Noise Immunity

    The drive does not require power sequencing. The drive protects against inadvertent writing during power-up and down. 6.4.3 Current profiles The +12V and +5V current profiles for the Enterprise Performance 10K HDD drives are shown below. Figure 1. Current profiles for 2400GB models Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)

  • Page 33: Figure 2. Current Profiles For 1800Gb Models

    Figure 2. Current profiles for 1800GB models Figure 3. Current profiles for 1200GB models Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)

  • Page 34: Figure 4. Current Profiles For 600Gb Models

    Figure 4. Current profiles for 600GB models Note: All times and currents are typical. See Section 6.4 for maximum current requirements. Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)

  • Page 35: Power Dissipation

    +5 volt current, +12 volt current, and total watts on the vertical axis. To calculate BTUs per hour, multiply watts by 3.4123. Figure 6. 1800GB (at 12Gb) DC current and power vs. input/output operations per second Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)

  • Page 36: Figure 7. 1200Gb (At 12Gb) Dc Current And Power Vs. Input/Output Operations Per Second

    +5 volt current, +12 volt current, and total watts on the vertical axis. To calculate BTUs per hour, multiply watts by 3.4123. Figure 8. 600GB (at 12Gb) DC current and power vs. input/output operations per second Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)

  • Page 37: Environmental Limits

    Non-operating –40° to 158°F (–40° to 70°C) package ambient with a maximum gradient of 36°F (20°C) per hour. This specification assumes that the drive is packaged in the shipping container designed by Seagate for use with drive. 6.6.2 Humidity The values below assume that no condensation on the drive occurs.

  • Page 38: Shock And Vibration

    Volume finished drives will be shipped from Seagate factories on pallets to minimize freight costs and ease material handling. Seagate finished drive bulk packs may be shipped individually. For less than full shipments, instructions are printed on the bulk pack carton for minimum drive quantities and proper drive placement.

  • Page 39: Air Cleanliness

    Sound power during idle mode shall be 3.1 bels typical when measured to ISO 7779 specification. There will not be any discrete tones more than 9 dB above the masking noise on typical drives when measured according to Seagate specification 30553-001. There will not be any tones more than 24 dB above the masking noise on any drive.

  • Page 40: Mechanical Specifications

    600GB .394 pounds .179 kilograms These dimensions conform to the Small Form Factor Standard Note documented in SFF-8201 and SFF-8223, found at www.sffcommittee.org Figure 10. Mounting configuration dimensions Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)

  • Page 41: About Fips

    Figure 11. Example of FIPS tamper evidence labels. Image is for reference only, may not represent actual drive. Note Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)

  • Page 42: About Self-Encrypting Drives

    The Trusted Computing Group (TCG) is an organization sponsored and operated by companies in the computer, storage and digital communications industry. Seagate’s SED models comply with the standards published by the TCG. To use the security features in the drive, the host must be capable of constructing and issuing the following two SCSI commands: •...

  • Page 43: Random Number Generator (Rng)

    Since the drive overwrites the old key with the new one, and keeps no history of key changes, the user data can never be recovered. This is tantamount to an instantaneous data erase and is very useful if the drive is to be scrapped or redispositioned. Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)

  • Page 44: Authenticated Firmware Download

    In addition to providing a locking mechanism to prevent unwanted firmware download attempts, the drive also only accepts download files which have been cryptographically signed by the appropriate Seagate Design Center. Three conditions must be met before the drive will allow the download operation: The download must be an SED file.

  • Page 45: Defect And Error Management

    Defect and error management Seagate continues to use innovative technologies to manage defects and errors. These technologies are designed to increase data integrity, perform drive self-maintenance, and validate proper drive operation. SCSI defect and error management involves drive internal defect/error management and SAS system error considerations (errors in communications between the initiator and the drive).

  • Page 46: Sas System Errors

    DAR is most effective when AWRE and ARRE are enabled—this is the default setting from the Seagate factory. With AWRE and ARRE disabled DAR is unable to reallocate the failing location and will report an error sense code indicating that a write command is being attempted to a previously failing location.

  • Page 47: Protection Information (Pi)

    Seagate RAID Rebuild Seagate RAID Rebuild is an industry standard feature to enable faster recovery from a failed drive in a RAID configuration. It improves RAID rebuild performance by extracting easily readable data from a failing drive. It quickly identifies blocks that would take longer to recover from the failed drive than to rebuild from the remaining drives in the RAID group.

  • Page 48: 10.0 Installation

    10.0 Installation Seagate Enterprise Performance 10K HDD disk drive installation is a plug-and-play process. There are no jumpers, switches, or terminators on the drive. SAS drives are designed to be used in a host system that provides a SAS-compatible backplane with bays designed to accommodate the drive.

  • Page 49: Drive Mounting

    Increased radiated emissions may result if maximum surface area ground connection is not provided between system ground and drive ground. This is the system designer’s and integrator’s responsibility. Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)

  • Page 50: 11.0 Interface Requirements

    11.2 Dual port support Seagate Enterprise Performance 10K HDD SAS drives have two independent ports. These ports may be connected in the same or different SCSI domains. Each drive port has a unique SAS address. The two ports have the capability of independent port clocking (e.g. both ports can run at 12Gb/s or the first port can run at 12Gb/s while the second port runs at 3Gb/s.) The supported link rates are 3.0, 6.0 or 12.0 Gb/s.

  • Page 51: Scsi Commands Supported

    11.3 SCSI commands supported The table below lists the SCSI commands supported by Seagate Enterprise Performance 10K HDD drives. Table 9 Supported commands Command name Command code Supported Change Definition Compare Copy Copy and Verify Format Unit [1] [5] DCRT bit supported...
  • Page 52 Read Capacity (10) Read Capacity (16) 9Eh/10h Read Defect Data (10) Read Defect Data (12) Read Long Y (non-SED drives only) Read Long (16) 9Eh/11h Reassign Blocks Receive Diagnostic Results Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)
  • Page 53 Y (Type 2 PI only) Write (6) Write (10) DPO bit FUA bit Write (12) Write (16) Write (32) 7Fh/000Bh Y (Type 2 PI only) Write and Verify (10) DPO bit Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)
  • Page 54 XDRead XDWrite XPWrite Seagate Enterprise Performance 10K HDD drives can format to 512, 520 528 (512 emulation) or 4096, 4160 or 4224 (4096 native). Warning. Power loss during flash programming can result in firmware corruption. This usually makes the drive inoperable.

  • Page 55: 11.3.1 Inquiry Data

    Eight ASCII digits representing the eight digits of the product serial number. Bytes 16 through 26 reflect model of drive. The table above shows the hex values for Model ST2400MM0129. Refer to the values below for the values of bytes 16 through 26 of a particular model:...

  • Page 56: 11.3.2 Mode Sense Data

    (see the SAS Interface Manual ). DEF = Default value. Standard OEM drives are shipped configured this way. CHG = Changeable bits; indicates if default value is changeable. Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)
  • Page 57 DEF: 1C 01 00 0C 01 00 00 48 00 18 01 F4 00 00 00 00 CHG: 1C 01 00 0C 00 00 FF FF FF FF FF FF FF FF 00 00 Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)
  • Page 58 DEF: 1C 01 00 0C 01 00 00 48 00 18 01 F4 00 00 00 00 CHG: 1C 01 00 0C 00 00 FF FF FF FF FF FF FF FF 00 00 Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)
  • Page 59 DEF: 1C 01 00 0C 01 00 00 48 00 18 01 F4 00 00 00 00 CHG: 1C 01 00 0C 00 00 FF FF FF FF FF FF FF FF 00 00 Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)
  • Page 60 DEF: 1C 01 00 0C 01 00 00 48 00 18 01 F4 00 00 00 00 CHG: 1C 01 00 0C 00 00 FF FF FF FF FF FF FF FF 00 00 Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)

  • Page 61: Miscellaneous Operating Features And Conditions

    Figure 14 shows the location of the SAS device connector J1. Figures 15 and 16 provide the dimensions of the SAS connector. Details of the physical, electrical, and logical characteristics are provided within this section. The operational aspects of Seagate’s SAS drives are provided in the SAS Interface Manual Figure 14.

  • Page 62: Figure 15. Sas Device Plug Dimensions

    Figure 15. SAS device plug dimensions Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)

  • Page 63: Sas Device Plug Dimensions (Detail)

    Figure 16. SAS device plug dimensions (detail) Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)

  • Page 64: 11.4.2 Physical Characteristics

    Pin P3 of the power connector on the interface may be pulled high, above 1.8V, to shut off power to the drive. Pulling pin p3 low, below 0.7V (but not negative), allows the drive to run. NC - No connection in the drive. Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)

  • Page 65: 11.4.6 Sas Transmitters And Receivers

    Spun up and activity (command executing) Spinning up or down Blinks steadily (50% on and 50% off, 0.5 seconds on and off for 0.5 seconds) Format in progress, each cylinder change Toggles on/off Seagate Enterprise Performance 10K HDD v9 Product Manual, Rev. D (Draft 2)

  • Page 66: 11.5.2 Differential Signals

    Additional information Please contact the Seagate representative for SAS electrical details, if required. For more information about the Phy, Link, Transport, and Applications layers of the SAS interface, refer to the Seagate SAS Interface Manual, part number 100293071. For more information about the SCSI commands used by Seagate SAS drives, refer to the Seagate SCSI Commands Reference Manual, part number 100293068.
  • Page 67 ASIA/PACIFIC Seagate Singapore International Headquarters Pte. Ltd. 7000 Ang Mo Kio Avenue 5, Singapore 569877, 65-6485-3888 EUROPE, MIDDLE EAST AND AFRICA Seagate Technology SAS 16-18 rue du Dôme, 92100 Boulogne-Billancourt, France, 33 1-4186 10 00 Publication Number: 100818015, Rev. D (Draft 2)
