BENNETT SITE MASTER EMV ASSEMBLY

Site Master EMV Instruction Manual

144332 Rev A 11/4/2020

Only Trained Personnel May Work on This Equipment

READ THIS MANUAL

This manual has important information for safe installation and operation of this equipment. Read and understand this manual before

applying power. Keep this manual and tell all service personnel to read this manual. If you do not follow the instructions, you can cause

bodily injury, death, or damage to the equipment.

Bennett 1218 E. Pontaluna Road, Spring Lake, MI 49456

USA 800-235-7618 ~ Outside USA 231-798-1310

sales@bennettpump.com ~ www.bennettpump.com

Table of Contents

Need help?

Do you have a question about the SITE MASTER EMV and is the answer not in the manual?

Questions and answers

Summary of Contents for Bennett SITE MASTER EMV

Page 1 Keep this manual and tell all service personnel to read this manual. If you do not follow the instructions, you can cause bodily injury, death, or damage to the equipment. Bennett 1218 E. Pontaluna Road, Spring Lake, MI 49456 USA 800-235-7618 ~ Outside USA 231-798-1310...
Page 2 IMPORTANT Examine the shipment immediately upon arrival to make certain there has been no damage or loss in transit. Bennett Pump Company, as shipper, is not liable for the hazards of transportation. Please make damage claims directly to the truck line.
Page 5: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS General Information ............................................4 Hazardous locations ............................................4 Codes and Standards............................................4 Unauthorized Alteration of Bennett Products ..................................4 Abbreviations and Acronyms ........................................4 INSTALLATION Specifications ............................................... 5 Recommended Materials ..........................................5 Dispenser Overview ............................................6 Mechanical Installation Requirements ......................................
Page 6 Bennett Site Master Instruction Manual Table of Contents Page Intentionally Left Blank...
Page 7: Important Safety Instructions
You must have training in the installation, service, or maintenance of this equipment (dispenser, pump, site master, console, control box, payment terminal, or submerged pump) before working on it. Maintenance repairs must be done by authorized personnel only. Warranty work may only be performed by Bennett certified technicians.
Page 8: General Information
American Petroleum Institute Recommended Practice RP 2003, Protection Against Ignitions Arising out of Static, Lightening, and Stray Currents. Service of the Bennett products and all accessories must be performed by a technician who is trained in accordance to all codes, standards, and regulations.
Page 9: Installation
INSTALLATION Examine the shipment immediately upon arrival to make certain there has been no damage or loss in transit. Bennett Pump Company, as shipper, is not liable for the hazards of transportation. Please make damage claims directly to the truck line.
Page 10: Dispenser Overview

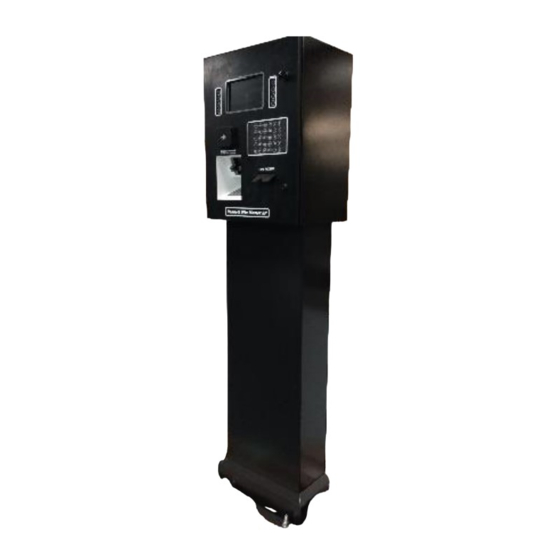

Bennett Site Master Instruction Manual Installation DISPENSER OVERVIEW EXTERIOR LAYOUT (ALP HA NUMERIC) 7” Display NFC Reader Key Locks EMV PIN Pad Receipt Printer Figure 0.1 - Exterior Layout with EMV & Alpha INTERIOR LAYOUT 120VAC is installed in the head of the unit and terminated on the terminal strip as shown in Figure 1.2. Neutral and Hot are labeled on the terminal strip.
Page 11: Mechanical Installation Requirements
Bennett Site Master Instruction Manual Installation MECHANICAL INSTALLAT ION REQUIREMENTS Note: The Site Master must be mounted on a concrete foundation and at least 10 ft. (3 m) from any building opening. Follow the procedure below for mounting instructions. Refer to the Site Master SP Footprint Diagram (125927 – P4208) shown on the next page or on the USB provided located inside the unit for conduit connections for the Site Master.
Page 12: Site Master Sp Footprint
Field connections are done in the upper electrical enclosure. Wire must extend 60 inches above base of the Site Master to make electrical connections. Shims should only be used under bolts to ensure the Site Master is level. Improper shimming that result in misaligned frames is NOT covered under the Bennett Limited Warranty. Figure 0.4 –Footprint...
Page 13: Wiring Instructions
RS-485 wires should be twisted together no less than 3 turns per foot to reduce the effects of electrical noise on the communication circuit. Due to the risk of noise, causing possible problems with communication, Bennett highly recommends the use of twisted wires, but does not require it.
Page 14: Beginning The Wiring Process
FOR THIS GROUND CONNECTION. EACH SITE MASTER’S GROUNDING POST MUST BE WITHIN 1-OHM RESISTANCE TO EARTH GROUND POTENTIAL. DO NOT USE WIRE NUTS ON GROUND CIRCUITS, USE ONLY COMPRESSION TYPE CONNECTORS. THIS IS REQUIRED TO INITIATE BENNETT’S LIMITED WARRANTY. CAUTION: Do not daisy-chain ground wires.
Page 15 Each Site Master’s grounding post must be within 1-ohm resistance to earth ground potential. Do not use wire nuts on ground circuits, use only compression type connectors. This is required to initiate Bennett’s Limited Warranty.
Page 16 Bennett Site Master Instruction Manual Installation RS-485 COMMUNICATION PROTOCOL FOR SITE MASTER SP Read all safety instructions and notes shown in Figure 1.6 and on wiring diagram 126000-P4229 before applying power to the Site Master. NOTES FOR COMMUNICATION WIRING DIAGRAM All wiring must be installed and used in accordance with the national electrical code (NFPA #70, Automotive and marine service code NFPA #30A), state, and local electrical codes.
Page 17: Operation
Bennett Site Master Instruction Manual Operation OPERATION Each Site Master uses one 120V/60Hz circuit for power which is customer supplied by a 15-Amp circuit breaker. AC power is then passed through a 3-amp fuse to the power board and is converted to DC voltage. DC voltages are then sent throughout the system. Refer to the descriptions below for more information.
Page 18: Ssp Payment Module
The only way to power the module on or off is by turning the power to the Site Master on or off. When power is applied to the Site Master, the Bennett Logo will appear for approximately 3 seconds as shown in Figure 2.3.
Page 19: Maintenance
Section. The service information in this manual is intended for Bennett trained technicians. All technicians must be aware of all safety instructions provided on page iii. If you are not a Bennett trained technician, please contact Bennett Technical Support at 1-800-423-6638 for training information.
Page 20: Power Supply Board (P/N 111209)
Bennett Site Master Instruction Manual Maintenance POWER SUPPLY BOARD (P/N 111209) The Power Supply Board converts 120-VAC into +12-VDC and +24-VDC. DC voltages operate payment module and its components. The payment module uses Power comes into the Power Supply assembly on connector [J1]. This power supply creates various DC Voltages for use throughout the systems.
Page 21: Cleaning
Bennett Site Master Instruction Manual Maintenance CLEANING WARNING: DO NOT USE A HIGH-PRESSURE WASHER TO CLEAN THE DISPENSER. LIQUID UNDER PRESSURE CAN ENTER THE DISPENSER CABINET AND DAMAGE ELECTRONIC COMPONENTS. WARNING: DO NOT USE STRONG DETERGENTS, PETROLEUM SOLVENTS, ABRASIVE CLEANERS, OR STEEL WOOL TO CLEAN THE DISPENSER.
Page 22 Bennett Site Master Instruction Manual Maintenance Page Intentionally Left Blank...
Page 23: Parts
To place an order for parts please contact us by mail, email, phone, fax, or web using the information provided below. Note: Verbal orders cannot be accepted. A signed purchase order must be faxed or emailed to the Bennett Order Entry Department at 231-799-6202 or customerservice@bennettpump.com.
Page 24: Door Upper Alpha Numeric/Emv 7" Display (P4913S2)
Bennett Site Master Instruction Manual Parts DOOR UPPER ALPHA NUMERIC/EMV 7” DISPLAY (P4913S2) Ref. No. Part No. Description Qty. VARIOUS Payment Panel 132016 Gasket Lens/Softkeys 131999 Lens 114209 Overlay Softkeys 132000 Bracket Softkeys 113651 Circuit Board Asm Soft Key 126972...
Page 25: Schematics
Each Site Master’s grounding post must be within 1-ohm resistance to earth ground potential. Do not use wire nuts on ground circuits, use only compression type connectors. This is required to initiate Bennett’s Limited Warranty.
Page 26 Bennett Site Master Instruction Manual Schematics RS-485 COMMUNICATION PROTOCOL FOR SITE MASTER SP Read all safety instructions and notes before applying power to the Site Master. NOTES FOR COMMUNICATION WIRING DIAGRAM All wiring must be installed and used in accordance with the national electrical code (NFPA #70, Automotive and marine service code NFPA #30A), state, and local electrical codes.
Page 27: Footprint
Bennett Site Master Instruction Manual Schematics FOOTPRINT...
Page 28 Bennett 1218 E. Pontaluna Road, Spring Lake, MI 49456 USA 800-235-7618 ~ Outside USA 231-798-1310 sales@bennettpump.com ~ www.bennettpump.com...
