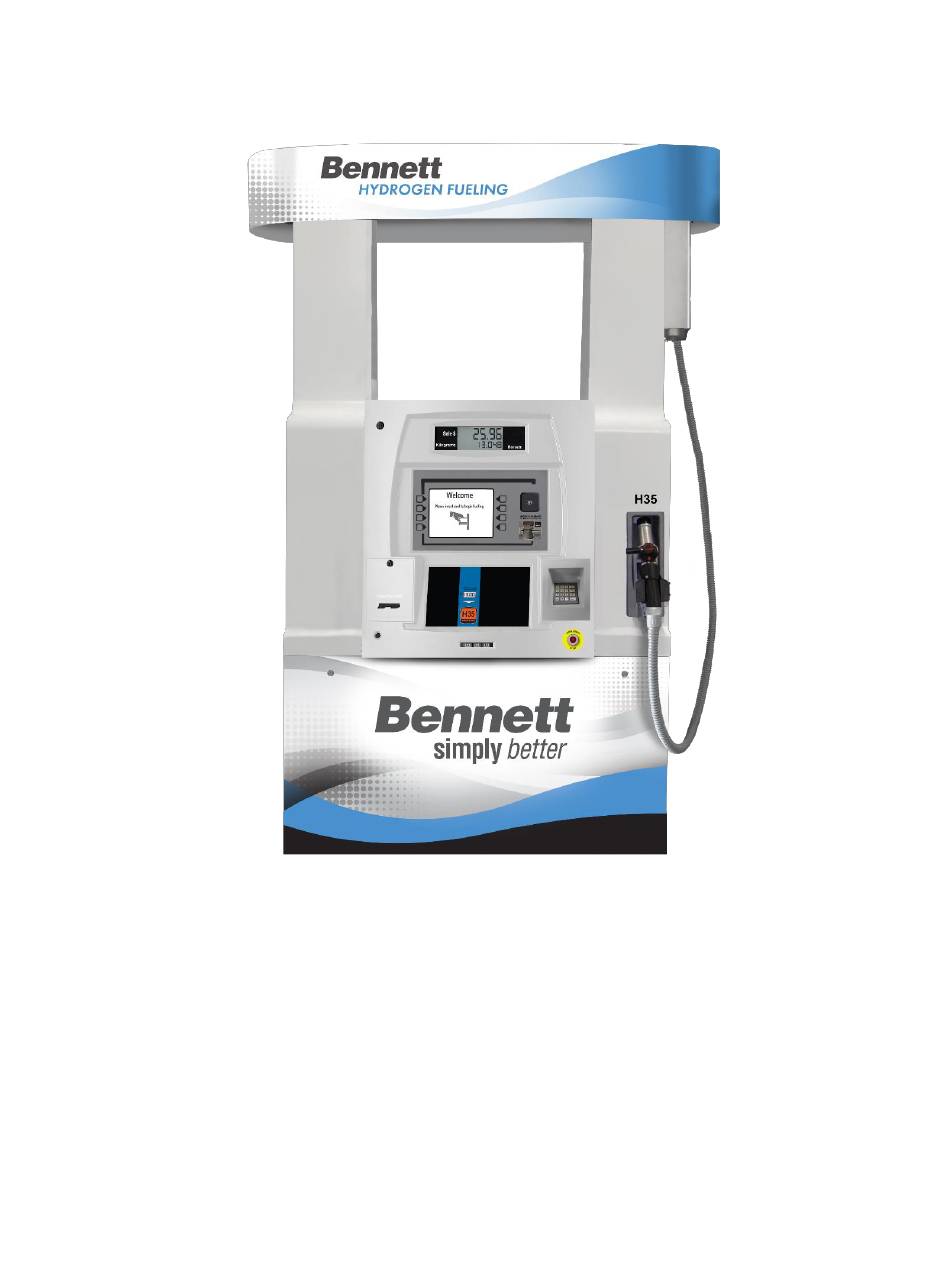

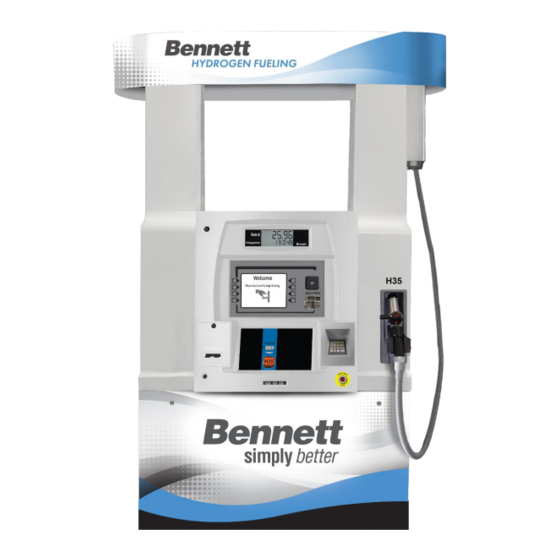

BENNETT HIGH FLOW H35 HYDROGEN SERIES
Instruction Manual
151679 Rev A 09/09/2022
Safety Information | Installation | Operation | Maintenance | Parts | Schematics
Only Trained Personnel May Work on This Equipment
READ THIS MANUAL
This manual has important information for safe installation and operation of this equipment. Read and understand this manual before
applying power. Keep this manual and tell all service personnel to read this manual. If you do not follow the instructions, you can cause
bodily injury, death, or damage to the equipment.
Bennett HF H35 Instruction Manual
