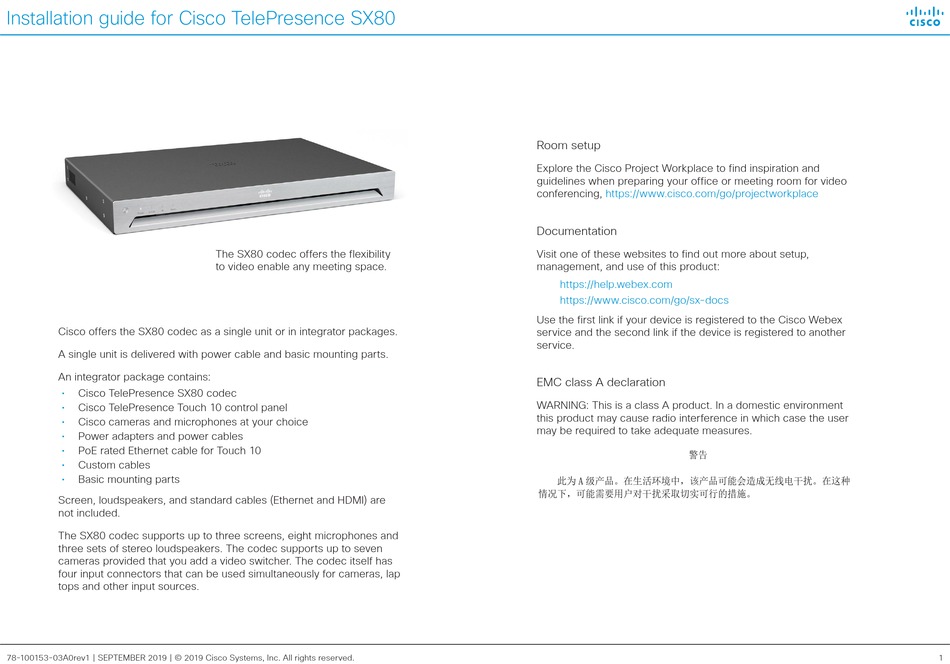

Installation guide for Cisco TelePresence SX80
Cisco offers the SX80 codec as a single unit or in integrator packages.
A single unit is delivered with power cable and basic mounting parts.
An integrator package contains:
• Cisco TelePresence SX80 codec
• Cisco TelePresence Touch 10 control panel
• Cisco cameras and microphones at your choice
• Power adapters and power cables
• PoE rated Ethernet cable for Touch 10
• Custom cables
• Basic mounting parts
Screen, loudspeakers, and standard cables (Ethernet and HDMI) are
not included.
The SX80 codec supports up to three screens, eight microphones and
three sets of stereo loudspeakers. The codec supports up to seven
cameras provided that you add a video switcher. The codec itself has
four input connectors that can be used simultaneously for cameras, lap
tops and other input sources.
78-100153-03A0rev1 | SEPTEMBER 2019 | © 2019 Cisco Systems, Inc. All rights reserved.
The SX80 codec offers the flexibility
to video enable any meeting space.
Room setup
Explore the Cisco Project Workplace to find inspiration and
guidelines when preparing your office or meeting room for video
conferencing, https://www.cisco.com/go/projectworkplace
Documentation
Visit one of these websites to find out more about setup,
management, and use of this product:
https://help.webex.com
https://www.cisco.com/go/sx-docs
Use the first link if your device is registered to the Cisco Webex
service and the second link if the device is registered to another
A 级声明 (A Class product declaration)
service.
EMC class A declaration
本产品为 A 级 ITE，在其使用说明，铭牌等显著位置中已包含如下内容的声明
(We declare here that the subject product is A class ITE product, and the
WARNING: This is a class A product. In a domestic environment
following statement is clearly marked in the user manual or nameplate):
this product may cause radio interference in which case the user
may be required to take adequate measures.
此为 A 级产品。在生活环境中，该产品可能会造成无线电干扰。在这种
情况下，可能需要用户对干扰采取切实可行的措施。
WARNING:
This is a class A product. In a domestic environment this
product may cause radio interference in which case the user may be
required to take adequate measures.
声明所在位置 (Position of the Declaration):
申请号 (Application No.)：
警告
使用说明 User Manual

铭牌 Nameplate

