Summary of Contents for Electrolux Professional W4400H

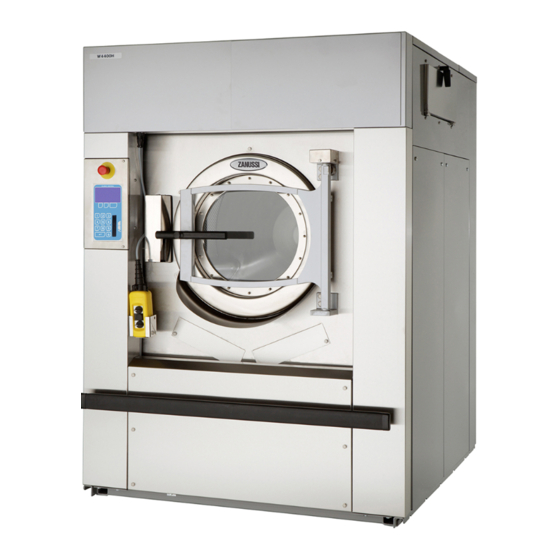

- Page 1 User manual Washer extractor W4400H, W4600H, W4850H, W41100H Clarus Control Type W4.H. 438921321/EN Original instructions 2022.08.15...
-
Page 3: Table Of Contents
Contents Contents 1 Safety Precautions ..........................5 General safety information......................5 Commercial use only........................5 Symbols............................6 2 Warranty terms and exclusions......................7 3 General ..............................8 4 Display ...............................8 5 Program description ..........................9 6 Handling .............................9 Load ............................9 Detergent ..........................10 To start a wash program ......................10 6.3.1 General .........................10 6.3.2 To start a wash program by entering the program number.......... -
Page 5: Safety Precautions
• The openings in the base, shall not be obstructed by a carpet. • Maximum mass of dry cloth: W4400H: 45 kg, W4600H: 65 kg, W4850H: 90 kg, W41100H: 120 kg. • A-weighted emission sound pressure level at working stations: –... -
Page 6: Symbols
User manual 1.3 Symbols Caution Caution, high voltage Read the instructions before using the machine... -
Page 7: Warranty Terms And Exclusions
Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec- tronic format. Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling agents to obtain optimal results and maintain product efficiency over time. -
Page 8: General
User manual 3 General This machine is controlled by a microprocessor-based program control unit. There are many advantages to this equipment, including: • Timing, levels and temperatures are controlled with great precision and flexibility • Detailed information on wash programs, machine status and operations, wash times and temperatures can be ac- cessed in plain language on the large display screen •... -
Page 9: Program Description
For an optimal result, only a few items is recommended EXTR. HIGH 6 MIN Used for rinse and extraction 6 Handling 6.1 Load Load the goods into the machine according to recommendations and close the door. Recommended maximum load W4400H 45 kg W4600H 65 kg W4850H 90 kg W41100H... -
Page 10: Detergent
User manual 6.2 Detergent If you are using the machine's built-in detergent dispensers, add the correct amount of detergent and softener ac- cording to recommendations. fig.5878 6.3 To start a wash program 6.3.1 General There are two ways to start a wash program: •... -
Page 11: To Start A Wash Program By Entering The Program Number
User manual 6.3.2 To start a wash program by entering the program number Select the menu RUN A WASH PROGRAM. RUN A WASH PROGRAM Use the numeric keyboard to enter the wash program number and press SELECT. MY OWN 40℃ MY OWN 60℃... -
Page 12: To Start A Wash Program From The Program Library
User manual 6.3.3 To start a wash program from the program library Select the menu RUN A WASH PROGRAM. RUN A WASH PROGRAM Press CLS to select a wash program from the wash program library in the program control unit. fig.4031B Press SMC to select a wash program from the smart card. -
Page 13: Delayed Start
User manual 6.4 Delayed start Delayed start means that the machine will not start the wash program until the time entered has elapsed. When wash program is selected, use the numeric keys to set the time (max. 99 hours). The time is set in hours and minutes. -
Page 14: To Change Parameters In The Current Program Step
User manual 6.5.1 To change parameters in the current program step Note! The standard wash programs can not be changed. The program step can only be changed during the actual program step. For example PREWASH may only be changed during prewash. The following program steps can be changed during program run: •... -
Page 15: Additional Functions During Program Run
User manual 6.5.2 Additional functions during program run The following additional functions are available for selection after start: • RAPID ADVANCE • SHOW WEIGHT • NO WATER REDUCTION • MANUAL FUNCTIONS • PAUSE • TEXT • SELECT NEW WASH PROGRAM •... - Page 16 User manual If the weighing equipment is not connected, the error message FUNCTION NOT ALLOWED will appear on the display. The display will return to normal view at the end of the time set in TIME FOR WEIGHT DISPLAY in Settings 1. Default time is 20 seconds.
- Page 17 User manual High extract This function makes it possible to change the maximum extraction speed. Select the menu HIGH EXTRACT. Enter the maximum extraction speed required for the ongoing wash program. For example, if the highest extraction speed for the selected wash program as standard is set to 1000 rpm and the function is changed to 700 rpm the extraction speed will stop at 700 rpm.
- Page 18 User manual Detergent/flush Select the menu DETERGENT/FLUSH. The following functions will be available: • FLUSH WATER • POWDER SIGNAL 1 • POWDER SIGNAL 2 • POWDER SIGNAL 3 • POWDER SIGNAL 4 • POWDER SIGNAL 5 • LIQUID SIGNAL 1 •...
- Page 19 User manual 6.5.2.4.2 Manual operating when no program is running Note! The door must be locked before you can operate the machine manually. Enter the OPTIONS MENU. RUN A WASH PROGRAM OPTIONS MENU MAKE YOUR CHOICE WITH OR AND PRESS SELECT Select the menu MANUAL MODE.
- Page 20 User manual Water/drain This menu allows manual operation of all water valves and the drain valve. Select the menu WATER/DRAIN. The following functions will be available: • DRAIN CLOSED • COLD WATER • MIXED WATER • HOT WATER • HARD WATER •...
- Page 21 User manual Detergent/flush Select the menu DETERGENT/FLUSH. The following functions will be available: • FLUSH WATER • POWDER SIGNAL 1 • POWDER SIGNAL 2 • POWDER SIGNAL 3 • POWDER SIGNAL 4 • POWDER SIGNAL 5 • LIQUID SIGNAL 1 •...
- Page 22 User manual 6.5.2.7 Select new wash program This menu makes it possible to change wash program during program run. Once this function has been selected, the current program step (for example rinse) will be interrupted and then the new wash program will start (from the beginning).
-
Page 23: When Program Has Ended
User manual 6.6 When program has ended Open the door and remove the load. Leave the door open when ready. This is to prevent that moisture stays in the machine and develop bacteria and mould. Machines with tilt function Turn the switch on the tilt control unit clock wise (A). The machine will now tilt forward. Use the bottom switch on the tilt control unit to rotate the drum (B), either to the right or the left. -
Page 24: Statistics
User manual 7 Statistics Enter the OPTIONS MENU. RUN A WASH PROGRAM OPTIONS MENU MAKE YOUR CHOICE WITH OR AND PRESS SELECT Select the menu STATISTICS. (For description of the other menus please refer to the Programming manual). WASH PROGRAM LIBRARY PROGRAMMING MODE SETTINGS 1 MEMORY CARD... -
Page 25: Smart Card
User manual 8 Smart card A smart card is a plastic card, the size of a credit card, with an electronic memory chip inside it (A). fig.3605A The smart card is capable of storing 10 to 15 wash programs of normal size. If the wash programs are mostly small ones, more of them can be stored, whereas larger wash programs will reduce the number which can be held by the smart card. - Page 26 User manual Enter the OPTIONS MENU. RUN A WASH PROGRAM OPTIONS MENU MAKE YOUR CHOICE WITH OR AND PRESS SELECT Select the menu SMART CARD. (For description of the other menus please refer to the Programming manual). WASH PROGRAM LIBRARY PROGRAMMING MODE SETTINGS 1 SMART CARD...
- Page 27 User manual Copy program from smart card to CLS Select the menu COPY PROGRAM FROM SMART CARD TO CLS. Select wash program from the list. MY OWN 40℃ MY OWN 60℃ MY OWN 90℃ NORMAL 95℃ NORMAL 60℃ NORMAL 40℃ INTENSIVE 95℃...
-
Page 28: Maintenance
User manual Delete program in smart card Select the menu DELETE PROGRAM IN SMART CARD. Select wash program from the list. MY OWN 40℃ MY OWN 60℃ MY OWN 90℃ NORMAL 95℃ NORMAL 60℃ NORMAL 40℃ INTENSIVE 95℃ INTENSIVE 60℃ PERM. -
Page 29: Maintenance To Be Carried Out By Qualified Service Personnel
User manual 9.3 Maintenance to be carried out by qualified service personnel Contact qualified service personnel to perform the following maintenance: Every third month: • Check the belt tension. • Check the filters at the steam and water connections. • Check the imbalance switch’s control arm. •... -
Page 30: Disposal Information
User manual 10 Disposal information 10.1 Disposal of appliance at end of life Before disposing of the machine, make sure to carefully check its physical condition, and in particular any parts of the structure that can give or break during scrapping. The machine’s parts must be disposed of in a differentiated way, according to their different characteristics (e.g. - Page 32 Electrolux Professional AB 341 80 Ljungby, Sweden www.electroluxprofessional.com...
