Summary of Contents for Electrolux Professional WH5 500H

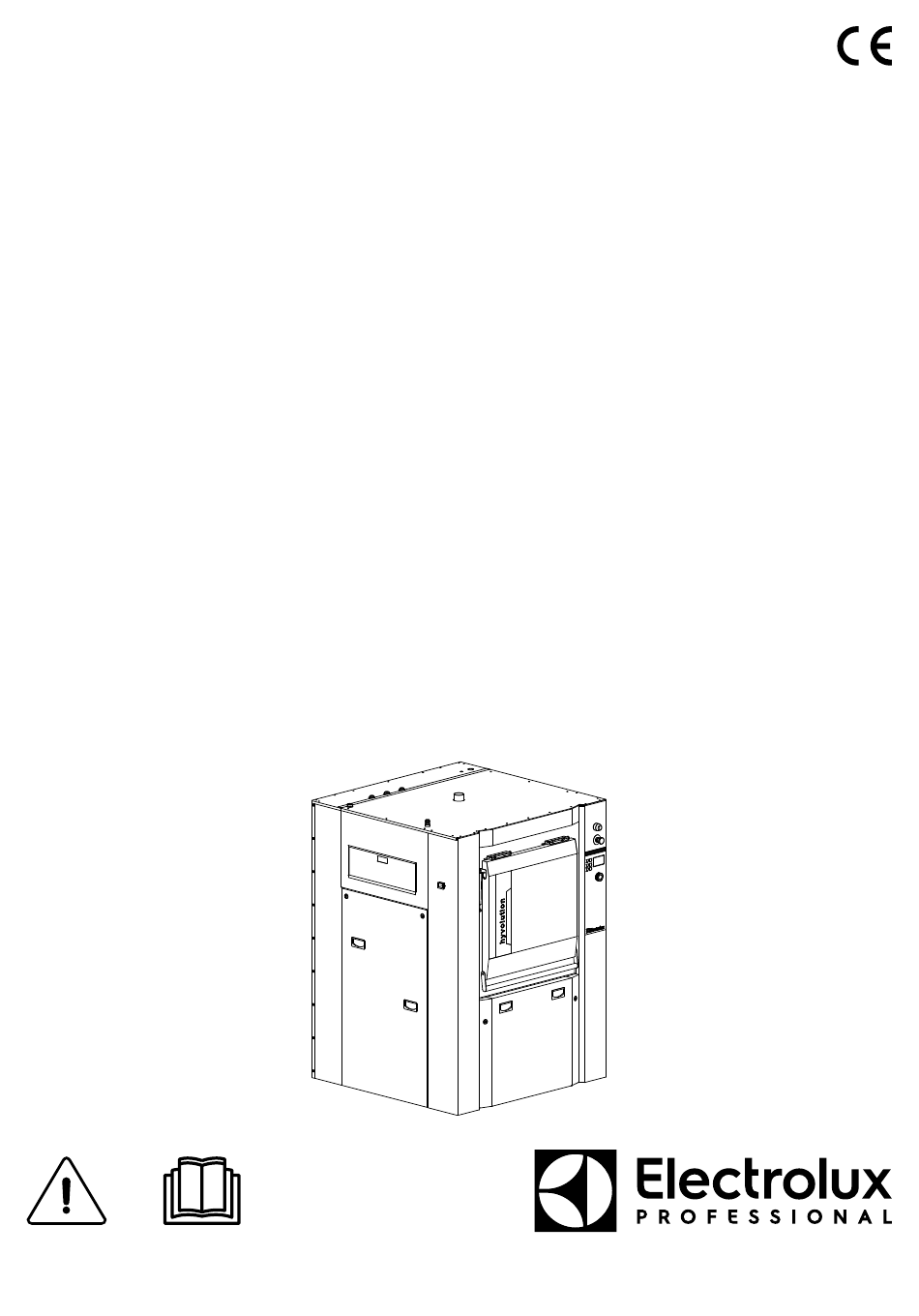

- Page 1 User manual Washer-extractors WH5 500H — WHB5 500H WS5 500H — WSB5 500H Clarus TS 01201227/EN original instructions...
-
Page 3: Table Of Contents
Contents Contents 1 . Safety precautions..........................5 Symbols..........................10 Personal protection equipment....................11 Preliminary instructions ......................11 2 Warranty terms and exclusions......................13 3 Ergonomics certification........................14 4 Distributor Letter..........................15 5 Note about the A.C. power .........................16 6 Preparation ............................16 Loading...........................16 Detergents ..........................18 Detergent container .........................19 Maintenance ...........................19 Explanation of accelerometer....................19 7 Control panel ............................20... - Page 4 Contents 14.4 Ironing ............................53 14.5 Dry or water cleaning .......................53 The manufacturer reserves the right to make changes to design and component specifications.
-
Page 5: Safety Precautions
User manual 1 . Safety precautions This machine should be installed in conformance to the health and safety regulations, and only used in a sufficiently aerated area. Check the instructions before installing or using the machine. CAUTION Before any use, to retire all the parts needed to install the machine put in the drum , please follow these actions 1. - Page 6 User manual CAUTION Before any use, it is compulsory to read the instruction handbook. Users must have learnt how the machine operates. This device must not be installed in places accessible to the public. The machine is only intended for water-wash use. Do not allow minors to use the machine.
- Page 7 User manual IMPORTANT The identification plate is located on the right side near the main switch. Never use the main switch as an emergency stop. Use it only when the machine does not work in progress. Instead of that, use the emergency stop buttons in both sides of the machine.
- Page 8 User manual CAUTION With AIDO(Automatic Inner Door Opening) option, Take care of the disc of the opening system above your head. Risk of cutting with the edge of the disc!! Take care also of the locking system on your side; risk of cutting with the edge of the plate!! CAUTION When you put your hands into the drum, take care of the edge of the outer drum doors...
- Page 9 User manual THINK OF THE ENVIRONMENT! The use and handling of chemical products such as detergent, chlorine, acids, desca- ling agents, etc may create hazards for health and environment ; the following precau- tions should be taken: • Do not breathe the dusts or steam; •...
-
Page 10: Symbols
User manual 1.1 Symbols Caution. Caution, presence of dangerous current. Read the instructions before using the machine. -
Page 11: Personal Protection Equipment
User manual 1.2 Personal protection equipment Given below is a summary table of the Personal Protection Equipment (PPE) to be used during the various phases of the machine’s service life. Phase Protection Safety Gloves Glasses Ear protectors Mask Safety helmet garments footwear Transport... - Page 12 User manual WARNING Risk of the upper door being raised quickly on loading WARNING After the installation, Send back the commissionning form ,signed document, to Elec- trolux to validate the warrantly of the product.
-
Page 13: Warranty Terms And Exclusions
Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec- tronic format. Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling agents to obtain optimal results and maintain product efficiency over time. -
Page 14: Ergonomics Certification
User manual 3 Ergonomics certification The human body is designed for movement and activity but physical stress injuries as a result of static and repetitive movements or unfavorable working postures may occur. The ergonomic features of our product, the ones which may influence your physical and cognitive interaction with it, have been assessed and certified. -
Page 15: Distributor Letter
User manual 4 Distributor Letter Chemical System Responsibility Disclaimer The following policy should be considered and understood as a warranty/disclaimer to customers operating textile care installations where liquid supply (chemical) systems use or may use peristaltic pumps to inject supplies into equipment. -
Page 16: Note About The A.c. Power
User manual 5 Note about the A.C. power According to the EN 60204-1:1997 standard, the machine is provided for A.C. supplies corresponding to the ex- tracted characteristics below : 4.3.2 A.C. supplies Voltage: Steady state voltage: from 0.9 to 1.1 of nominal voltage. Frequency: from 0.99 to 1.01 of nominal frequency continuously. - Page 17 User manual Open the inner drum doors. Press the safety latch (A) and at the same time on the upper and lower doors with both hands. Caution, maintain the doors until they are widely open. Attention, risk of jamming when opening the doors. Load the linen in the inner drum.
-
Page 18: Detergents
User manual Close the inner drum doors and press them to check the good working of the mechanical safety device (B). If doors are not properly closed, they might open during a washing cycle and strongly damage the machine. Check that no piece of linen is wedged between the doors and the inner drum. Close the outer drum door and lock it with the handle. -
Page 19: Detergent Container
User manual 6.3 Detergent container The detergent container has five compartments. Each compartment is connected to a water valve. The water supply to individual compartment is as follows : Softener, liquid. Main wash for liquid detergent. Alt. for mop machines, liquid mop chemicals in last rinse. Pre-wash, powder or liquid detergent, if option “pre-wash”... -
Page 20: Control Panel
User manual 7 Control panel General This washer extractor is controlled by a microprocessor-based program control unit placed on the loading side. There are many advantages to this equipment, including: • Timing, levels and temperatures are controlled with great precision and flexibility. •... -
Page 21: To Run A Wash Program
User manual Caution If the machine for some reason has to be stopped, abnormal or dangerous running, press emergency stop button. Release the emergency stop, by turning it clockwise only after checking what motivated this stop. A very high working safety level of the machine is achieved thanks to a continuous monitoring and built-in safety devices. -
Page 22: To Start The Wash Program
User manual When a door opening is requested, the window DRUM INDEXING. WAIT is displayed. The indexing is operating, the keys of the tactile display become totally inactive. When the operation is realized, the window disappears. The both loading doors must be closed, the locking is next automatic. In case of one of the door is not closed, the machine can not start and the display stays inactive. -
Page 23: Operating Cycle
User manual Immediate start The machine indicates the day date and the current hour; for an immediate start, just push on “Valid” key �. DELAYED START waiting display DELAYED START ACTIVATED The pushing on MOVE BACK key will cancel the programmed delayed start. 8.5 OPERATING CYCLE During the wash program, the display shows the current program step and the opposite informations. -
Page 24: Power Is Back Display
User manual EMERG. STOP ACTIVE After the emergency stop releasing, push on “Valid” � key . 8.7 POWER IS BACK display If a power outage occurs during the execution of a program, or the main switch is moved to the «Off» position, the screen opposite is displayed after power returns or the main switch is moved to the «On»... - Page 25 User manual Open the inner doors using the lever. Caution, maintain the doors until they are widely open. Attention, risk of jamming when opening the doors. Unload the linen from the inner drum. Close the inner drum doors and press them to check the good working of the mechanical safety device (B).
-
Page 26: At The End Of The Day
User manual sluice program. Therefore it is recommended to add a sluice step to a "normal" program via the option menu when re- quired as opposed to using a sluice program alone. The machine is now ready for launching a new washing cycle. 9.2 At the end of the day Leave the door open when ready. -
Page 27: Manual Mode
User manual 10.2 Manual mode All manual settings (such as door, motor, temperature and drain) will be cancelled when you exit manual operation. The door is unlocked, the motor stops, the drain opens, heating halted and the temperature is reset to zero. The manual mode menu is used for example to: Water/Drain Allows manual operation of all water valves and the drain valve #1 (drain #2 is an option). -
Page 28: Basic Settings
User manual CLOSED = Inactive Put the function OPENED on by pressing the OPEN key. Put the function CLOSED off by pressing the CLOSE key. Caution ATTENTION Never program a temperature above to 90 °C. Warning If you happen to make your own program, you must not input cold water in the cage while this later has a washing bath at 85 °C (185 °F), with the cage stopped. - Page 29 User manual Buzzer activated Set the buzzer when machine error. when machine error Code at wash pro- Shield with a code at wash program start. gram start CMIS address Allows to adjust CMIS address. CMIS machine type Allows to adjust the machine type for the CMIS (7=WSB5180; 8=WSB5250; 9=WSB5350; 10=WS5180;...
-
Page 30: Advanced Settings
User manual 10.4 Advanced settings Numeric keyboard A password (a four-digit number), protects the access to the "Advanced settings" functions. The advanced setting menu is used for example to: Level machine Adjusts the level machine empty. empty Level machine full Adjusts the level machine full. - Page 31 User manual Temperature Adjusts the minimal temperature increase for the heating. increase Door opening pulse Actually out of service. Maximum extract Adjusts the maximum extraction speed. speed Drum positioning Adjusts the drum indexing speed. speed Default wash speed Adjusts the standard wash speed. Default distribution Adjusts the distribution speed.
- Page 32 User manual BASIC SETTING ADVANCED SETTINGS STATISTICS USER LANGUAGE WASHPROGRAMS The display will now show the following submenus: • Level Machine Empty • Level Machine Full • Temperature Hysteresis • Cool down Rate • Default Low Extract Time • Default Medium Extract Time •...
-
Page 33: Statistics
User manual 10.5 Statistics The Statistics function gives you access to the following information: • Run Time Historic • Wash Historic • Error Historic The run time historic gives you access to the following information: Total hours since Shows the total operating time for the machine since it was installed. Hours since last This register shows the time elapsed since the last service. - Page 34 User manual Select the STATISTICS menu by pressing the � or � keys then valid with � key. OPTIONS MENU MANUAL MODE BASIC SETTINGS ADVANCED SETTINGS STATISTICS USER LANGUAGE WASHPROGRAMS The run time historic menu displays following information: • Total hours since new •...
-
Page 35: Language Setting
User manual 10.6 Language setting Select the USER LANGUAGE menu by pressing the � or � keys then valid with � key. OPTIONS MENU MANUAL MODE BASIC SETTINGS ADVANCED SETTINGS STATISTICS USER LANGUAGE WASHPROGRAMS The available languages are shown in a list: Package A •... -
Page 36: Create Wash Program
User manual 10.8 Create wash program An introduction to programming You can create a completely new wash program by programming a number of individual program modules which are arranged in a logical order to form a new program. Wash programs can be programmed directly on the machine, via the PCU control panel, which is the method de- scribed in this manual. -
Page 37: 1Program Edition
User manual 10.8.1 Program edition The PROGRAM EDITION display contains two parts. The left part proposes the different stages of a washprogram. The right part allows to select this stages to constitute a personalized program. The parameters of each stage are accessible and can be modified. To escape, push on "Move back"... - Page 38 User manual 10.8.1.1 PREWASH stage Pause with buzzer 1 = with, the washer extractor will stop and the buzzer will sound before the program mod- ule starts. 0 = without, the program module will start without pause or buzzer. Tome Adjusts the prewash time (from 0 to 9999 seconds).
- Page 39 User manual 10.8.1.2 WASH stage Pause with buzzer 1 = with, the washer extractor will stop and the buzzer will sound before the program mod- ule starts. 0 = without, the program module will start without pause or buzzer. Time Adjusts the prewash time (from 0 to 9999 seconds).
- Page 40 User manual 10.8.1.3 RINSE stage Pause with buzzer 1 = with, the washer extractor will stop and the buzzer will sound before the program mod- ule starts. 0 = without, the program module will start without pause or buzzer. Time Adjusts the prewash time (from 0 to 9999 seconds).
- Page 41 User manual 10.8.1.4 REPEAT RINSE stage Pause with buzzer 1 = with, the washer extractor will stop and the buzzer will sound before the program mod- ule starts. 0 = without, the program module will start without pause or buzzer. Time Adjusts the prewash time (0 to 9999 seconds).
- Page 42 User manual 10.8.1.5 SOAK stage Pause with buzzer 1 = with, the washer extractor will stop and the buzzer will sound before the program mod- ule starts. 0 = without, the program module will start without pause or buzzer. Time Adjusts the prewash time (from 0 to 9999 seconds).
- Page 43 User manual 10.8.1.6 COOL DOWN stage Quick cool down If you answer 1 (yes) : The machine will fill with cold water to a fixed higher level. The machine does not monitor the drop in temperature of the wash water. This function is used mainly for reducing the temperature of the water before it is discharged.
- Page 44 User manual 10.8.1.8 EXTRACTION stage Normal drain The drain will be open. The motor may be at a standstill, on gentle action. During this time the drum water will be discharged (1 = selected). Optional drain Actually out of service. Extraction time The period during which the drum is reaching its correct speed is not included in the extrac- tion time (from 0 to 900 seconds).
-
Page 45: Modify Wash Program
User manual 10.9 Modify wash program An introduction to programming You can create a new program on the basis of an existing one by modifying, adding and deleting program modules, then saving the new program. Wash programs can be programmed directly on the machine, via the PCU control panel, which is the method de- scribed in this manual. -
Page 46: Delete Wash Program
User manual 10.10Delete wash program Select the DELETE WASH PROGRAM menu by pressing the � or � keys then valid with � key. WASHPROGRAMS CREATE WASHPROGRAM MODIFY WASHPROGRAM DELETE WASHPROGRAM COPY CARD TO CLARUS COPY CLARUS TO CARD The display will now show the following menu: SELECT WASH PROGRAM. 10.10.1SELECT WASH PROGRAM menu Allows to choose the program �... -
Page 47: 1Card Reader
User manual 10.11.1CARD READER What happens when a program is copied ? Both the memory card and the program control unit have memory chips capable of storing wash programs. The chip on the card can hold about 10 to 15 programs of normal size, while the chip in the program control unit has a capacity of several hundred programs. -
Page 48: 2Card Writing
User manual 10.11.2CARD WRITING What happens when a program is copied ? Both the memory card and the program control unit have memory chips capable of storing wash programs. The chip on the card can hold about 10 to 15 programs of normal size, while the chip in the program control unit has a capacity of several hundred programs. -
Page 49: Detergent Container
User manual Warning Do not clean the washer with bleach or oxygenated water to avoid damaging the logos and the control panel of the machine. We recommend you to use ECOLAB product to clean the washer. 11.3 Detergent container Important Rinse the inside, every days with water, the detergents container. - Page 50 User manual 11.2 LOADING DOOR • Door unlocked. • Test whether door really locked. OPENED • Switch off power to machine. Wait a minute or UNLOADING DOOR so, switch on power supply, open and close OPENED door again and try restarting. This error code can only arise during an on-going program.
-
Page 51: Lubricant Table
User manual 13 Lubricant table MACHINE LUBRICATION Rolling Rolling Assembly Bare gears Flange joints Reducers Reducers Circuits and bearings bearings paste (fretting with wheels with gears pneumatic Chains shafts Union pipes corrosion) and screws devices USES Bearings Bearings Thread Steam high circuits Slides... -
Page 52: Explanation Of Washing Symbols
User manual 14 Explanation of washing symbols (ISO 3758:2005 standard) To overcome language barriers, the following are symbols used internationally to give you guidance and recommen- dations when washing different textiles. 14.1 Washing The tub symbolizes washing. Max. washing tem- Symbols Mechanical action perature in °C... -
Page 53: Drying
User manual Symbols Explanation Bleaching allowed (chlorine or oxygen). Bleaching allowed (only oxygen). Do not bleach. 14.3 Drying The circle in a square symbolizes tumble drying. Symbols Explanation Can be put in a tumble dryer. Normal temperature. Can be put in a tumble dryer. Lower temperature. - Page 54 User manual Mild dry cleaning with solvent of hydrocarbon. Do not dry clean. Normal water cleaning. Mild water cleaning. Very mild water cleaning.
- Page 56 Electrolux Professional AB 341 80 Ljungby, Sweden www.electroluxprofessional.com...
